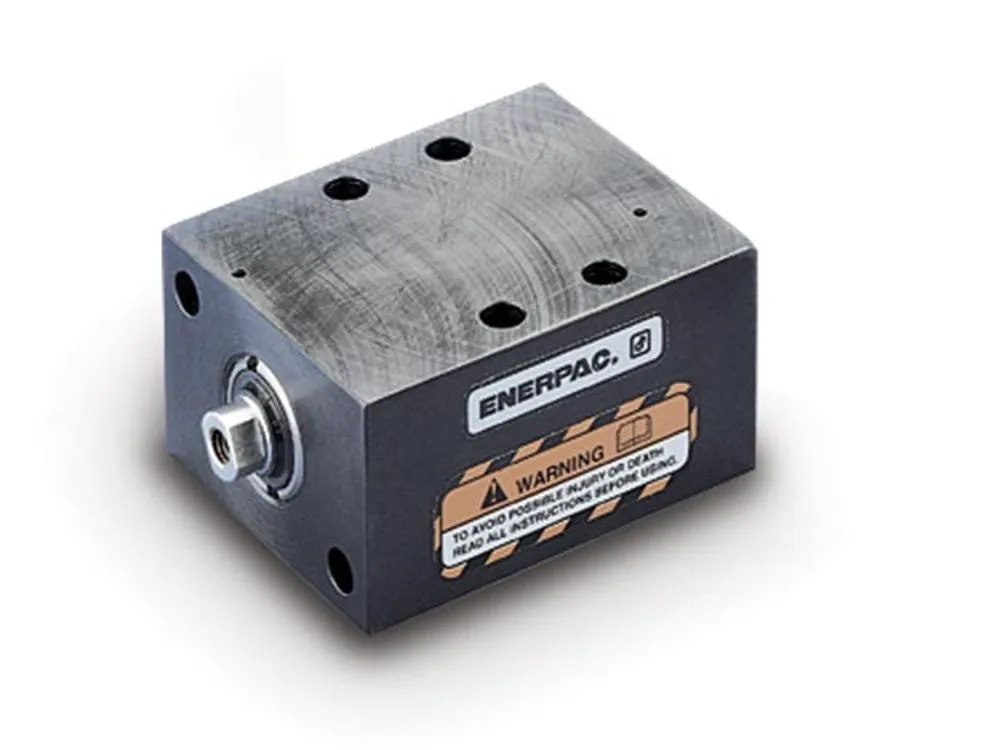

ENERPAC cdb18502 BLOCK 5000PSI 1.97IN DOUBLE ACTING HYDRAULIC CYLINDER
€441.86 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Clamping Force Advance | 16 kN |
| Clamping Force Retract | 10 kN |
| Cu. In. | 9 cu. in., 8 cu. in. |
| Cylinder Effective Area Advance | 0.76 sq. in. |
| Cylinder Effective Area Advance (cm2) | 49 sq. cm |
| Cylinder Effective Area Advance In | 19/25" |
| Cylinder Effective Area Retract | 0.45 sq. in. |
| Cylinder Effective Area Retract (cm2) | 2 sq. cm |
| Cylinder Effective Area Retract In | 0.45" |
| Dimension O | 0.49" |
| Dimension S | 0.51" |
| Dimension U | 1.06" |
| Dimension V | 0.35" |
| Dimensions A | 5.91" |
| Dimensions B | 3.94" |
| Dimensions C | 3.62" |
| Dimensions D | 2 14/25" |
| Dimensions F1 | 0.59" |
| Dimensions G | G1/8" |
| Dimensions J | 2 6/25" |
| Dimensions K | M8 X 1.25" |
| Dimensions M | 1.18" |
| Dimensions N | 0.3" |
| Dimensions P | 1.77" |
| Dimensions R | 0.89" |
| Dimensions T | 6/25" |
| Dimensions-z | 0.05" |
| Fob | N |
| Height | 3" |
| Material | Steel |
| Max. Cylinder Capacity Advance | 3800 lbs. |
| Max. Cylinder Capacity Retract | 2250 lbs. |
| Max. Operating Pressure | 5000 psi |
| Min. Operating Pressure | 40 Bar |
| Oil Capacity Advance | 1 1/2" |
| Oil Capacity Retract | 0.9" |
| Piston | 0.98" |
| Piston Dia. | 24 mm |
| Plunger Type | Solid |
| Return Type | Double Acting, Hydraulic Return |
| Rod Dia. | 16 mm |
| Stroke | 1.97" |
| Tariff Code | 8412218090 |
