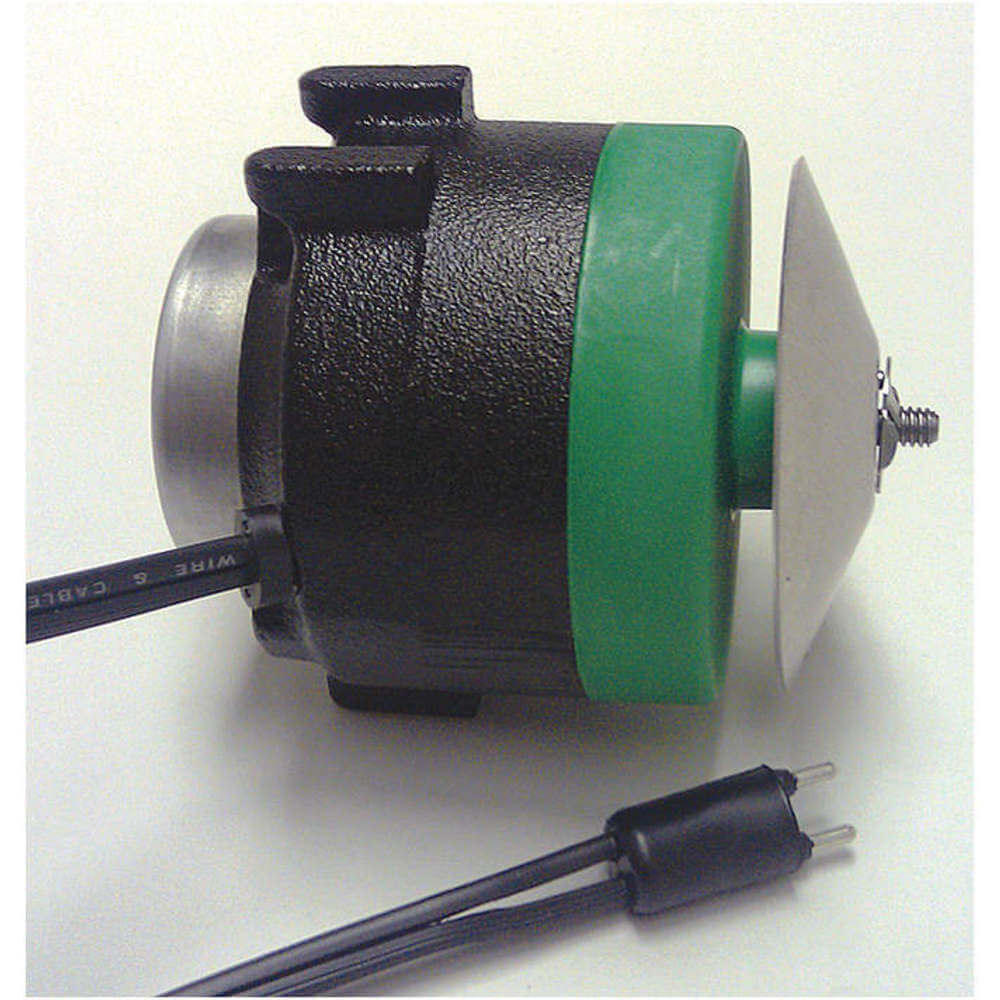

ELECTRIC MOTORS & SPECIALTIES UTBCF1851E6VH2 Unit Bearing Motor 1/46 Hp 1850 Rpm 115v
Item: AF7ZEWModel: UTBCF1851E6VH2Cross Ref: 23TM12
7 In Stock
Ships within 2 days via
10.00% off
€170.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Unit Bearing Motor |
| Application | HVAC/R |
| Bearing Type | Unit |
| Body Dia. | 3 7/16" |
| Bolt Circle Dia. | 2 13/16" |
| Cord Length | 15" |
| Features | It Can Operate With Horizontal Or Shaft Up Shaft Orientation, Totally Enclosed Air Over Enclosure Design |
| Frame | Non-Standard |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 0.4A |
| Green Certification Or Other Recognition | rohs.png |
| Hp | 1/46 hp |
| Includes | (4) #8-36 Screws, Fan Silencer And Speed Nut |
| Insulation Class | Class B |
| Length Less Shaft | 3 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Unit |
| Motor Design | ECM |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rear, Foot |
| Motor Mounting Type | Rear/Foot |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Motor Type | ECM |
| Nameplate Rpm | 1850 RPM |
| No. Of Speeds | 1 |
| Output Wattage | 16 W |
| Output Watts | 16 W |
| Overall Length | 3 5/8" |
| Phase | 1 |
| Plug Type | Round 2 Pin |
| Ring Dia. | 2.81" |
| Shaft Dia. | 1/4" |
| Shaft Length | 1 3/8" |
| Shaft Orientation | Horizontal/Up |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 8501106020 |
Product Variants
| Model | Hp | Nameplate Rpm | Motor Type | Output Wattage | Motor Shaft Rotation | Thermal Protection | Shaft Dia. | Motor Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ESP-OL50EMJR21 | 1/15 hp | 1500 RPM | Shaded Pole | 50 W | Counter Clockwise Shaft End | Automatic | 5/16" | HVAC/R | €188.06 | |
| ESP-L16EM1 | 1/47 hp | 1500 RPM | Shaded Pole | 16 W | Clockwise Lead End | Automatic | - | HVAC/R | €124.93 | |
| ESP-L16EM2 | 1/47 hp | 1500 RPM | Shaded Pole | 16 W | Clockwise Lead End | Automatic | 1/4" | HVAC/R | €131.09 | |
| ESP-L25EM1 | 1/30 hp | 1500 RPM | Shaded Pole | 25 W | Clockwise Lead End | Automatic | 1/4" | HVAC/R | €149.79 | |
| ESP-L25EM2 | 1/30 hp | 1500 RPM | Shaded Pole | 25 W | Clockwise Lead End | Automatic | 1/4" | Refrigerator/Freezer | €155.32 | |
| ESP-L35EM1 | 1/20 hp | 1500 RPM | Shaded Pole | 35 W | Clockwise Lead End | Automatic | 1/4" | HVAC/R | €157.57 | |
| ESP-L35EM2 | 1/20 hp | 1500 RPM | Shaded Pole | 35 W | Clockwise Lead End | Automatic | 1/4" | HVAC/R | €160.09 |
