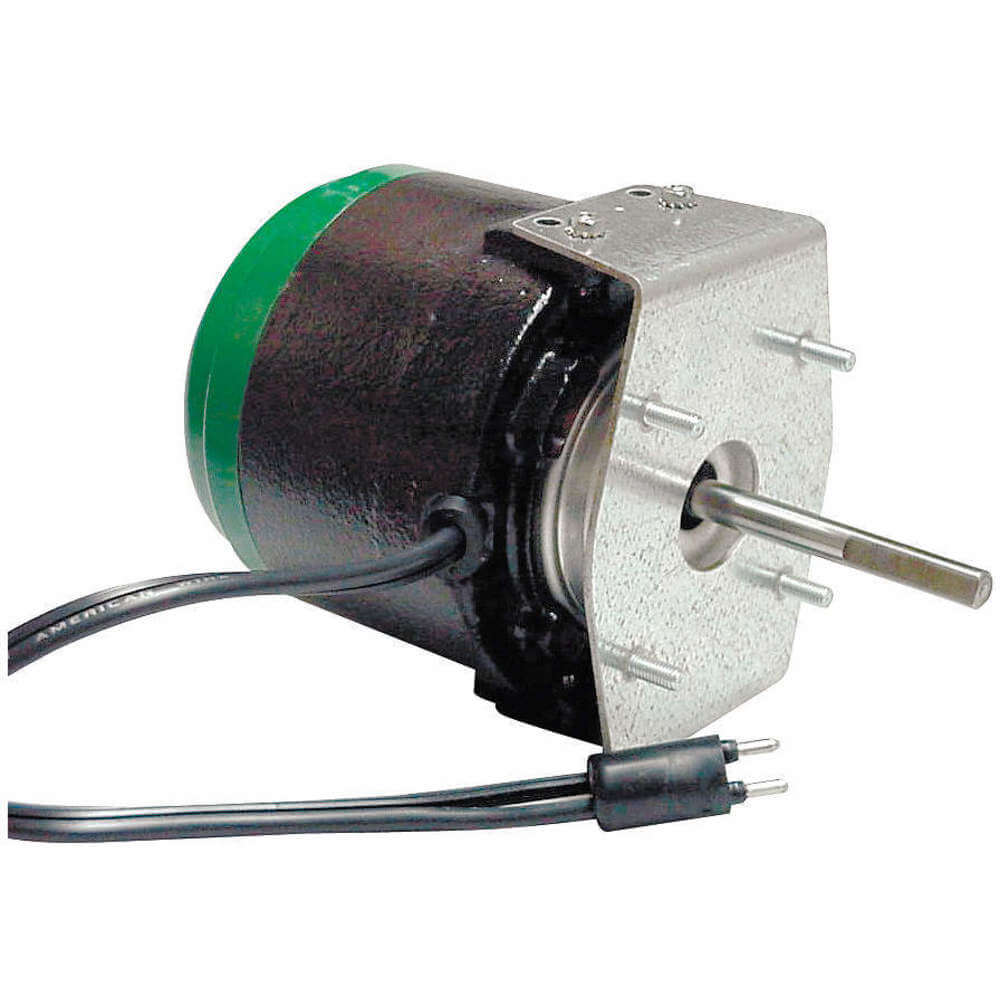

ELECTRIC MOTORS & SPECIALTIES UTAGF1551JA Brushless Unit Bearing Motor ECM 1/10 HP
Item: AE6QDWModel: UTAGF1551JACross Ref: 5ULD0
7 In Stock
Ships within 2 days via
10.00% off
€230.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | ECM Unit Bearing Motor |
| Application | HVAC/R |
| Bearing Type | Unit |
| Body Dia. | 4 1/4" |
| Bolt Circle Dia. | 2 13/16" |
| Capacitor Required | No |
| Cord Length | 15" |
| Frame | Non-Standard |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 1A |
| Hp | 1/10 hp |
| Includes | (4) #10-32 Nuts |
| Insulation Class | Class A |
| Length Less Shaft | 4 3/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Unit |
| Motor Design | ECM |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Motor Type | ECM |
| Mounting Pattern | (4) #10-32 Studs |
| Mounting Stud Pattern | (4) #10-32 Studs |
| Mounting Stud Size | #10-32 |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550 RPM |
| No. Of Mounting Holes | 4 |
| No. Of Speeds | 1 |
| Number Of Mounting Holes | 4 |
| Output Wattage | 100 W |
| Output Watts | 100 W |
| Overall Length | 7" |
| Phase | 1 |
| Plug Type | Round 2 Pin |
| Shaft Dia. | 5/16" |
| Shaft Length | 2 5/8" |
| Shaft Orientation | All Angle |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 1.23 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 41.15 |
| Ship width (cm) | 33.02 |
| HS code | 8501402040 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Motor Shaft Rotation | Hp | Motor Enclosure Design | Motor Type | Mounting Type | Output Wattage | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UTAGF1551JRA | 115V AC | Counter Clockwise Lead End | 1/10 hp | Totally Enclosed Air Over | ECM | Extended Studs | 100 W | 5/16" | - | RFQ
|
|
UTAGF1552JRA | 230V AC | Counter Clockwise Lead End | 1/10 hp | Totally Enclosed Air Over | ECM | Extended Studs | 100 W | 5/16" | €260.14 |
