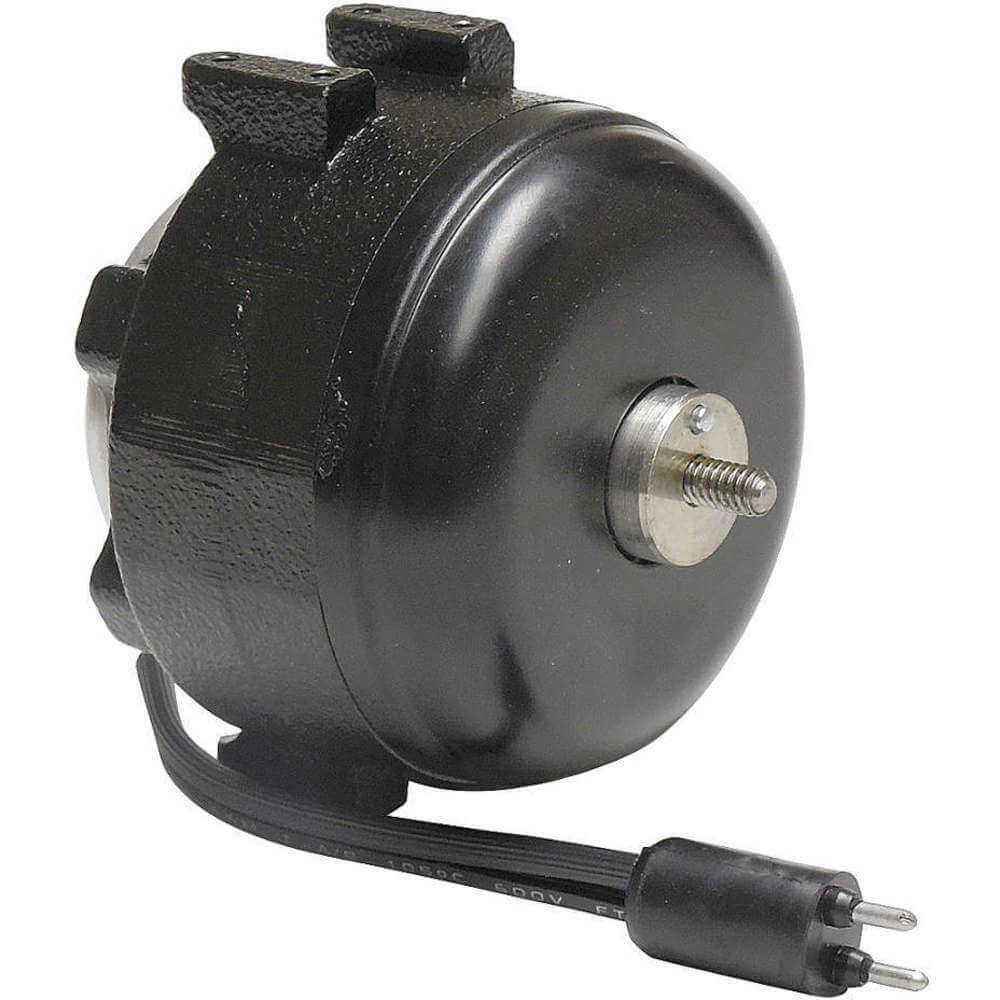

ELECTRIC MOTORS & SPECIALTIES SPFBE91 Unt Bearing Mtr 1/84hp 1350 - 1750rpm 115v
Item: AF7ZFFModel: SPFBE91Cross Ref: 23TM15
7 In Stock
Ships within 2 days via
€50.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Unit Bearing Motor |
| Application | HVAC/R |
| Bearing Type | Unit |
| Body Dia. | 3 7/16" |
| Bolt Circle Dia. | 2 13/16" |
| Cord Length | 13" |
| Features | Cool Running, Quiet Operation, Thick Film Lubricating System For Long Life And Dependability |
| Frame | Non Standard |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 0.6A |
| Green Certification Or Other Recognition | rohs.png |
| Hp | 1/84 hp |
| Included | (4) #8-36 Screws, Fan Silencer And Speed Nut |
| Insulation Class | Class B |
| Length Less Shaft | 3" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC, R |
| Motor Bearings | Unit |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rear, Foot |
| Motor Mounting Type | Rear/Foot |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Clockwise Lead End |
| Motor Sub Application | Refrigerator, Freezer |
| Motor Thermal Protection | Impedance |
| Motor Type | Shaded Pole |
| Nameplate Speed | 1500 RPM |
| No. Of Speeds | 1 |
| No. Of Studs | 8 |
| Output Watts | 9 W |
| Overall Length | 3 1/8" |
| Phase | 1 |
| Plug Type | Round 2 Pin |
| Ring Dia. | 2.81" |
| Shaft Dia. | 1/4" |
| Shaft Length | 5/8" |
| Shaft Orientation | Horizontal/Up |
| Stud Size | #8-36 |
| Thermal Protection | Impedance |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 8501106020 |
Product Variants
| Model | Hp | Motor Type | Motor Shaft Rotation | Thermal Protection | Shaft Dia. | Motor Application | Voltage | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ESP-OL50EMJR21 | 1/15 hp | Shaded Pole | Counter Clockwise Shaft End | Automatic | 5/16" | HVAC, R | 230V AC | Rear And Double Foot | €126.17 | |
| ESP-L16EM1 | 1/47 hp | Shaded Pole | Clockwise Lead End | Automatic | - | HVAC, R | 115V AC | Rear And Double Foot | €87.32 | |
| ESP-L16EM2 | 1/47 hp | Shaded Pole | Clockwise Lead End | Automatic | 1/4" | HVAC, R | 230V AC | Rear And Double Foot | €90.74 | |
| ESP-L25EM1 | 1/30 hp | Shaded Pole | Clockwise Lead End | Automatic | 1/4" | HVAC, R | 115V AC | Rear And Double Foot | €104.85 | |
| ESP-L25EM2 | 1/30 hp | Shaded Pole | Clockwise Lead End | Automatic | 1/4" | Refrigerator, Freezer | - | Rear And Double Foot | €108.72 | |
| ESP-L35EM1 | 1/20 hp | Shaded Pole | Clockwise Lead End | Automatic | 1/4" | HVAC, R | 115V AC | Rear And Double Foot | €110.30 | |
| ESP-L35EM2 | 1/20 hp | Shaded Pole | Clockwise Lead End | Automatic | 1/4" | HVAC, R | 230V AC | Rear And Double Foot | €114.09 |
