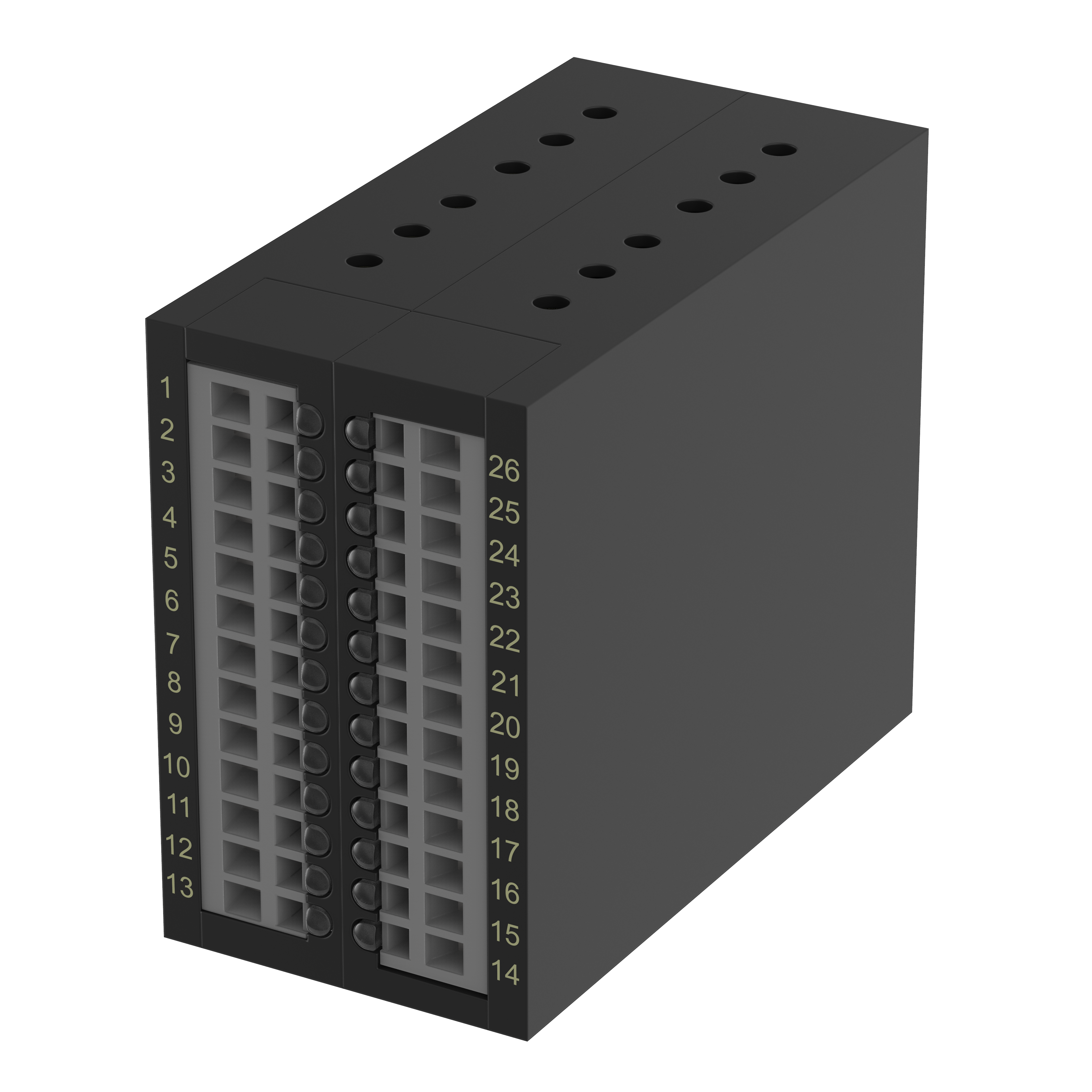

ELOBAU 4621273E Safety Relay, AC/DC, 24V
Get it by Monday, Dec 22
€728.57 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Relay |
| Air Pressure | 860 hPa to 1060 hPa |
| Air Pressure | 860 to 1060 hPa |
| Continuous Shock Resistance | 10g, 16 ms |
| Cross-short Detection | Yes |
| Current Consumption | 200 mA |
| Delta Tmax | 0.5 Deg. C/Min. |
| Edm/start Input | Yes |
| Fuse Operating Current | 1A |
| Fuse Safety Output | 4A Slow Blow |
| Housing Color | Silver |
| Housing Material | PBT |
| Installation | Arbitrary |
| Internal Electronic Fuse | No |
| Ip Rating | IP20 |
| Led Display | Yes |
| Max. Connection Cross Section | 2.5 sq. mm |
| Max. No. Operating Cycles At 0.5a Switching Current (ohmic Load) | 370000 |
| Max. No. Operating Cycles At 3a Switching Current (ohmic Load) | 180000 |
| Max. Operating Temp. | 55 Deg. C |
| Max. Operating Temp. | 55°C |
| Max. Operating Voltage | 26.4V AC |
| Max. Storage Temp. | 70°C |
| Max. Switching Current At Control Output | 3A |
| Max. Switching Power At Control Output | 90 W |
| Max. Switching Power At Safety Output | 120 W |
| Max. Switching Voltage At Control Output | 30V DC/250V AC |
| Max. Switching Voltage At Safety Output | 30V DC/250V AC |
| Min. Connection Cross Section | 0.14 sq. mm |
| Min. Operating Temp. | 0°C |
| Min. Operating Voltage | 21.6V AC |
| Min. Storage Temp. | -25°C |
| Min. Switching Current At Safety Output | 0.01A |
| Min. Switching Power At Safety Output | 0.1 W |
| Min. Switching Voltage At Control Output | 4A |
| Min. Switching Voltage At Safety Output | 10V DC |
| Mounting Type | Mounting Rail |
| Number Of Redundant Safety Inputs | 4 |
| Number Of Relay Control Output | 1 |
| Number Of Relay Safety Output | 1 |
| Operating Time | 10000 ms |
| Overvoltage | Category III |
| Pluggable Connection Terminals | No |
| Power Consumption | 5.28 W |
| Relative Humidity | 5% to 85% |
| Shock Resistance | 30g, 11 ms |
| Size | 75 mm x 47 mm x 92 mm |
| Spring Terminals | Yes |
| Start Function | Automatic |
| Turn-off Delay | 50 ms |
| Turn-on Delay | 100 ms |
| Utilization Category | 15-AC/-13-DC |
| Vibration Resistance | 10-55 Hz |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 9.2 |
| Ship width (cm) | 7.5 |
| Country of Origin | DE |
