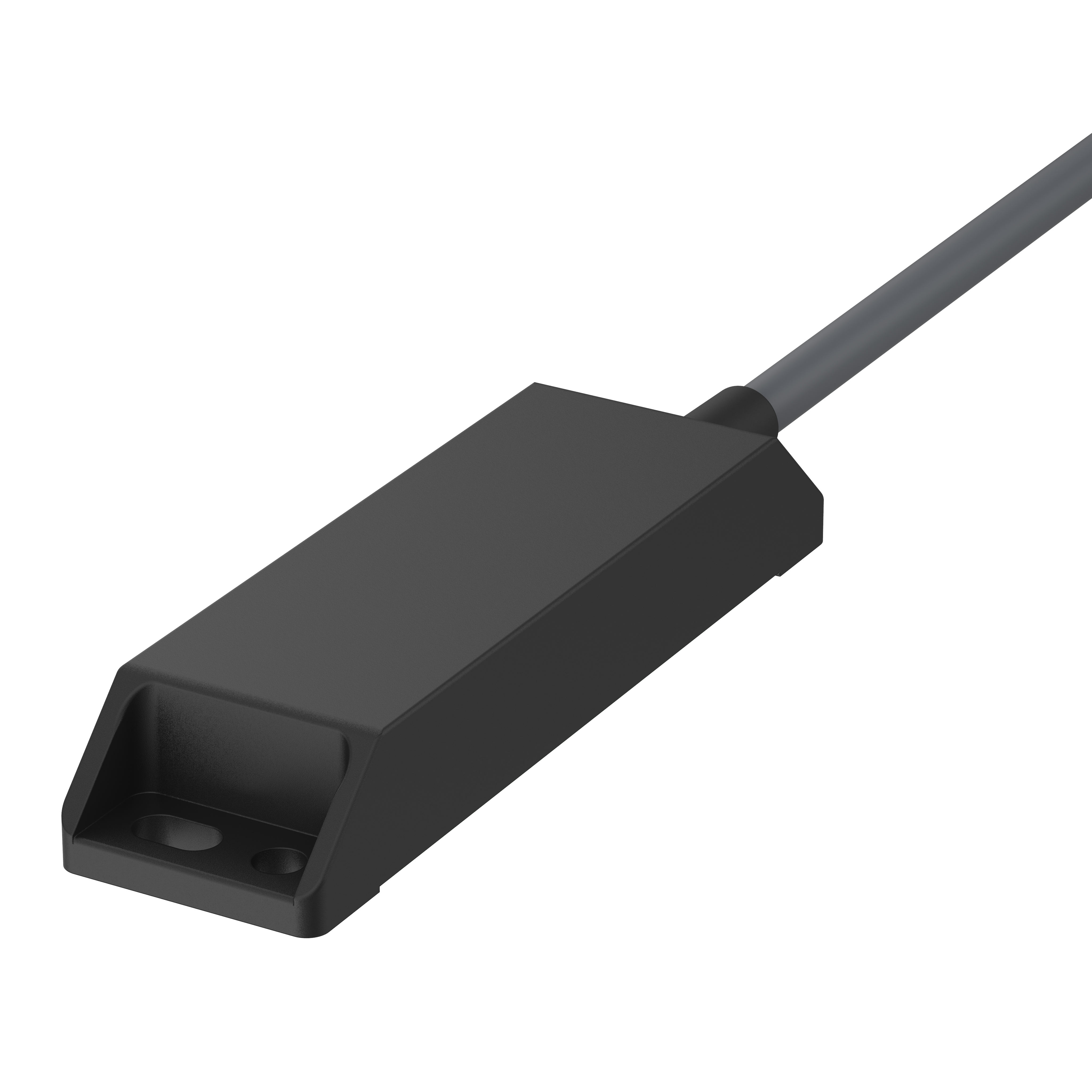

ELOBAU 165260 Safety Sensor, Magnetically Actuated, N.O./N.O./N.O., 1m Cable
Get it by Tuesday, Feb 17
€78.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Actuation Type | Front |
| Cable Length | 1m |
| Cable Size | 4 mm x 1/4 mm |
| Cable Type | LIYY |
| Communication Method | Hard Wired |
| Housing Color | Silver |
| Housing Design | Cuboid |
| Housing Material | PBT |
| Installation Opening | 4.5 mm |
| Ip Rating | IP67 |
| Led Display | No |
| Max. Operating Temp. | 75°C |
| Max. Operating Temp. | 75 Deg. C |
| Max. Storage Temp. | 75°C |
| Max. Switching Current | 0.1A |
| Max. Switching Voltage | 28.8V DC |
| Min. Operating Temp. | -25°C |
| Min. Storage Temp. | -25°C |
| Min. Switching Voltage | 19.2V DC |
| Mounting Type | Screwed From Above |
| Number Of Strands | 4 |
| Operating Voltage | 19.2-28.8V DC |
| Sensing Technology | Reed |
| Series Resistor | 22 ohms |
| Size | 88 mm x 25 mm x 14 mm |
| Structure | Two Channel |
| Switching Frequency | 5 Hz |
| Switching Principle | Magnetic |
| Technology | Reed |
| Wire Cross Section | 0.25 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Country of Origin | DE |
Product Variants
| Model | Ip Rating | Housing Material | Cable Length | Mounting Type | Led Display | Max. Operating Temp. | Housing Color | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 114270 | - | - | - | Screwed | No | - | - | - | €96.84 | |
| 114270-10 | IP67 | PBT | 1m | Screw | No | 75°C | Black | -25°C | €141.86 | |
| 114270-5 | IP67 | - | 1m | Screw | No | 75°C | Black | -25°C | €116.86 | |
| 114270A0D | - | - | - | Screwed | No | - | - | - | €97.66 | |
| 114570 | - | - | - | - | - | - | - | - | €104.46 | |
| 114570-10 | IP67 | - | - | Screwed | - | - | - | - | €151.46 | |
| 114V6203-2 | - | - | - | - | - | - | - | - | €111.61 |
