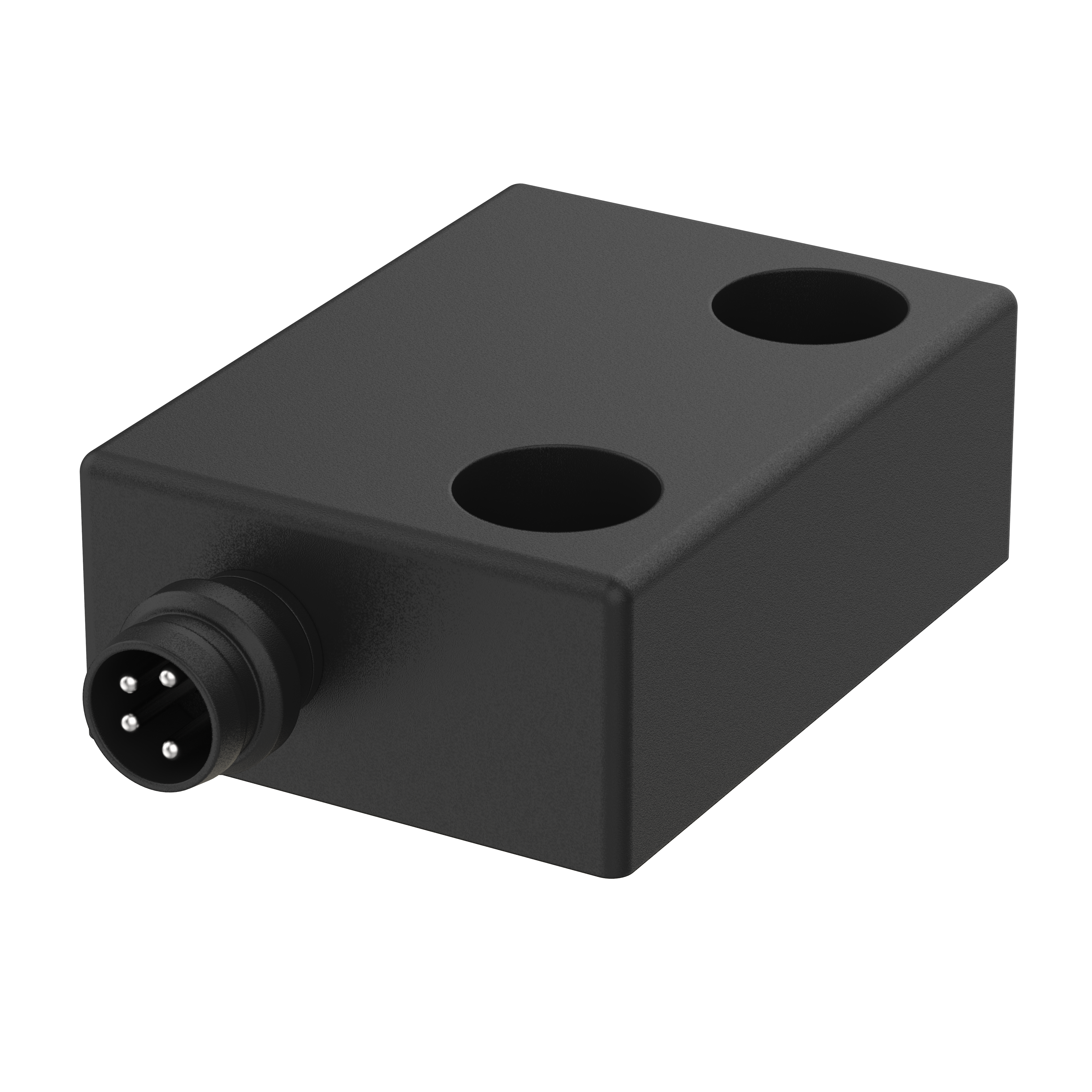

ELOBAU 153270SA0D Safety Sensor, Magnetically Actuated, N.O./N.C., Built In Connector, M8 Size
Get it by Monday, Dec 22
€103.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Actuation Type | Front |
| Assured Switch Off Distance | 21 mm |
| Assured Switching Distance | 9 mm |
| Communication Method | Hard Wired |
| Connector Size | M8 x 1 |
| Connector Type | 4 Pin |
| Housing Color | Silver |
| Housing Design | Cuboid |
| Housing Material | PBT |
| Installation Opening | 4.5 mm |
| Ip Rating | IP67 |
| Led Display | Single Coloured |
| Max. Operating Temp. | 75°C |
| Max. Operating Temp. | 75 Deg. C |
| Max. Storage Temp. | 75°C |
| Max. Switching Current | 0.1A |
| Max. Switching Current With Led | 0.01A |
| Max. Switching Voltage | 28.8V DC |
| Min. Operating Temp. | -25°C |
| Min. Storage Temp. | -25°C |
| Min. Switching Distance | 0.5 mm |
| Min. Switching Voltage | 19.2V DC |
| Mounting Type | Screwed From Above |
| Operating Voltage | 19.2-28.8V DC |
| Sensing Technology | Reed |
| Series Resistor | 22 ohms |
| Size | 36 mm x 26 mm x 13 mm |
| Structure | Two Channel |
| Switching Frequency | 5 Hz |
| Switching Principle | Magnetic |
| Technology | Reed |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.3 |
| Ship length (cm) | 3.6 |
| Ship width (cm) | 2.6 |
| Country of Origin | DE |
Product Variants
| Product | Model | Ip Rating | Housing Material | Cable Length | Mounting Type | Led Display | Max. Operating Temp. | Housing Color | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
153210 | - | Nylon | 1m | Screw | - | 70°C | - | -25°C | €36.91 | |
 |
171V62AY | - | PBT | - | Fastening Nut | No | 75°C | Silver | -25°C | €98.40 | |
 |
114270A0D | - | - | - | Screwed | No | - | - | - | €97.66 | |
 |
171V62VY | IP67, IP69K | Stainless Steel | - | Fastening Nut | No | 75°C | Silver | -25°C | - | RFQ
|
 |
114270-5 | IP67 | - | 1m | Screw | No | 75°C | Black | -25°C | €116.86 | |
 |
153V62-10 | - | - | - | - | - | - | - | - | €141.86 | |
 |
165270-5 | IP67 | - | 1m | Screwed | No | 75°C | Black | -25°C to +75°C | €98.45 |
