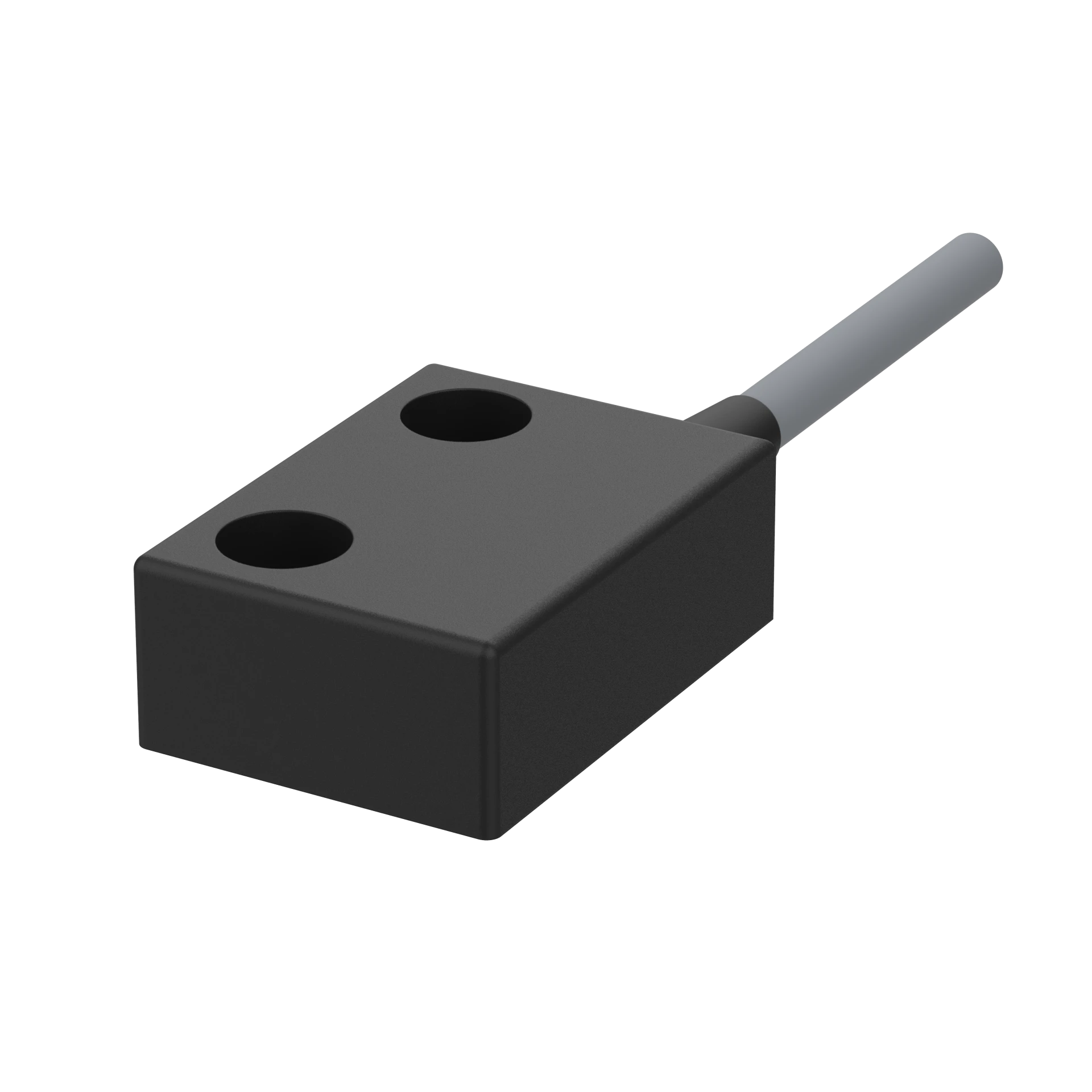

ELOBAU 153270-10 Safety Sensor, Magnetically Actuated, N.O./N.C., 10m Cable
Get it by Friday, Aug 21
€141.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Actuation Type | Front |
| Assured Switch Off Distance | 10 mm |
| Assured Switching Distance | 3 mm |
| Cable Length | 1m |
| Cable Size | 4 mm x 1/4 mm |
| Cable Type | LIYY |
| Communication Method | Hard Wired |
| Housing Color | Silver |
| Housing Design | Cuboid |
| Housing Material | PBT |
| Installation Opening | 4.5 mm |
| Ip Rating | IP67 |
| Led Display | No |
| Max. Operating Temp. | 75 Deg. C |
| Max. Operating Temp. | 75°C |
| Max. Storage Temp. | 75°C |
| Max. Switching Amps | 0.1A |
| Max. Switching Voltage | 28.8V DC |
| Min. Operating Temp. | -25°C |
| Min. Storage Temp. | -25°C |
| Min. Switching Distance | 0.5 mm |
| Min. Switching Voltage | 19.2V DC |
| Mission Time In Years | 20A |
| Mounting Type | Screwed From Above |
| No. Of Strands | 4 |
| Operating Voltage | 19.2-28.8V DC |
| Sensing Technology | Reed |
| Series Resistor | 22 ohms |
| Size | 36 mm x 26 mm x 13 mm |
| Structure | Two Channel |
| Switching Frequency | 5 Hz |
| Switching Principle | Magnetic |
| Technology | Reed |
| Wire Cross Section | 0.25 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 1.3 |
| Ship length (cm) | 3.6 |
| Ship width (cm) | 2.6 |
| Country of Origin | DE |
Product Variants
| Product | Model | Mounting Type | Operating Voltage | Ip Rating | Led Display | Max. Operating Temp. | Housing Color | Min. Operating Temp. | Housing Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
153210 | Screw | - | - | - | 70°C | - | -25°C | Cuboid | €36.91 | |
 |
171V62AY | Fastening Nut | 19.2-28.8V DC | - | No | 75°C | Silver | -25°C | Cylindrical | €98.40 | |
 |
114270A0D | Screwed | 19.2-28.8V DC | - | No | - | - | - | - | €97.66 | |
 |
171V62VY | Fastening Nut | 19.2-28.8V DC | IP67, IP69K | No | 75°C | Silver | -25°C | Cylindrical | - | RFQ
|
 |
114270-5 | Screw | 19.2-28.8V DC | IP67 | No | 75°C | Black | -25°C | Rectangular | €116.86 | |
 |
153V62-10 | - | - | - | - | - | - | - | - | €141.86 | |
 |
165270-5 | Screwed | 19.2-28.8V DC | IP67 | No | 75°C | Black | -25°C to +75°C | Cuboid | €98.45 |
