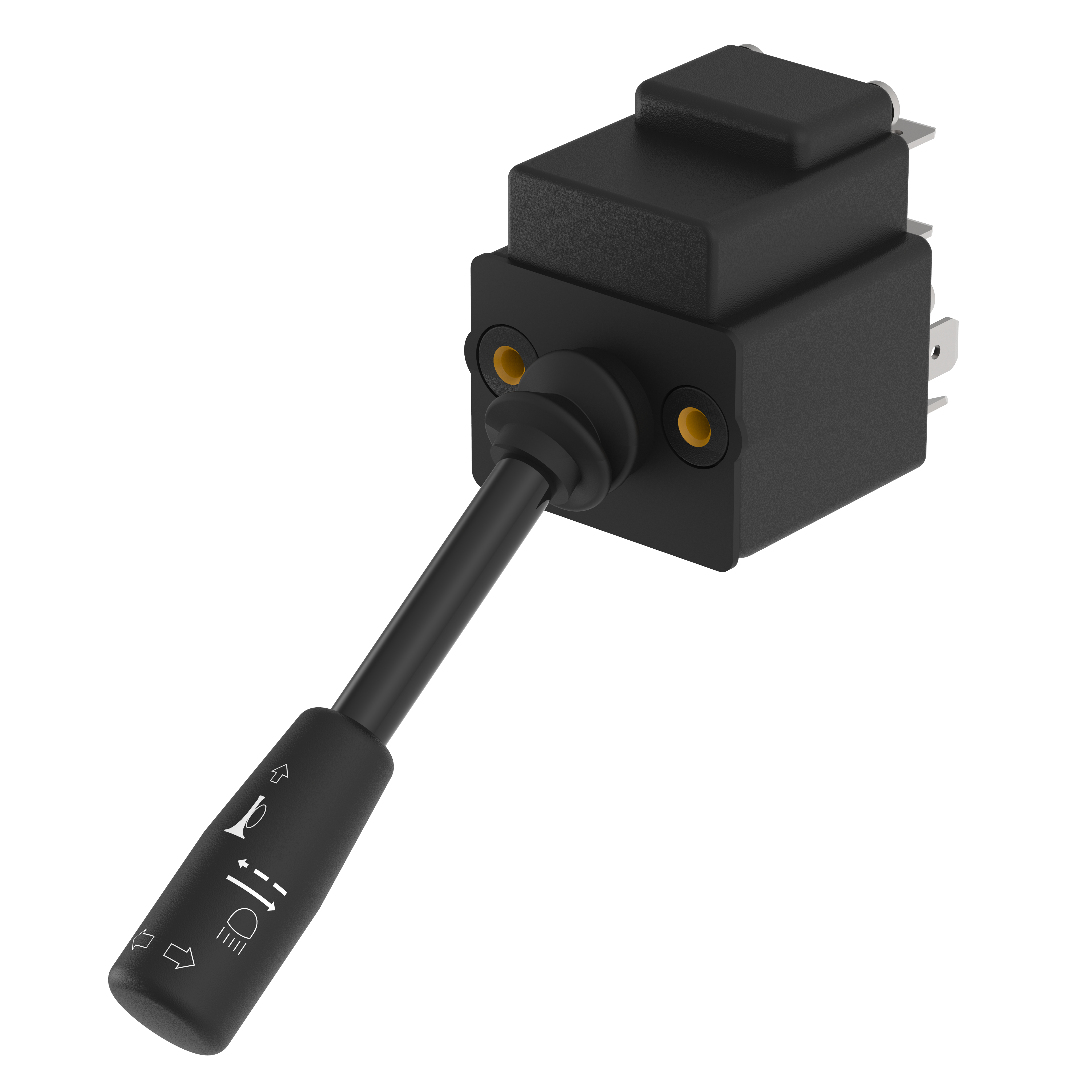

ELOBAU 151UMS10B Universal Switch, Small Handle With Print
Get it by Friday, Dec 19
€172.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Switch |
| Contact Form | Mechanical |
| Deflection - Headlamp Flasher | 6° |
| Deflection - High Beam | 9° |
| Deflection - Turn Signal | -15° to +15° |
| Gaiter Material | NBR |
| High Beam – Max. Switching Current | 10A |
| High Beam – Max. Switching Power | 120 W |
| High Beam – Max. Switching Voltage | 12V DC |
| Horn - Max. Inductive Switching Power | 50 W |
| Horn - Max. Switching Current | 4.2A |
| Horn - Max. Switching Voltage | 12V DC |
| Housing Material | PBT |
| Installation Depth | 45 mm |
| Low Beam – Max. Switching Current | 10A |
| Low Beam – Max. Switching Power | 120 W |
| Low Beam – Max. Switching Voltage | 12V DC |
| Max. Operating Temp. | 80 Deg. C |
| Max. Operating Temp. | 80°C |
| Max. Switching Current Of Headlamp Flasher | 10A |
| Max. Switching Power Of Headlamp Flasher | 120 W |
| Max. Switching Voltage Of Headlamp Flasher | 12V DC |
| Min. Operating Temp. | -30°C |
| Min. Storage Temp. | -40°C |
| Shaft Material | Aluminum |
| Turn Signal - Max. Switching Current | 8A |
| Turn Signal - Max. Switching Power | 96 W |
| Turn Signal - Max. Switching Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Country of Origin | DE |
