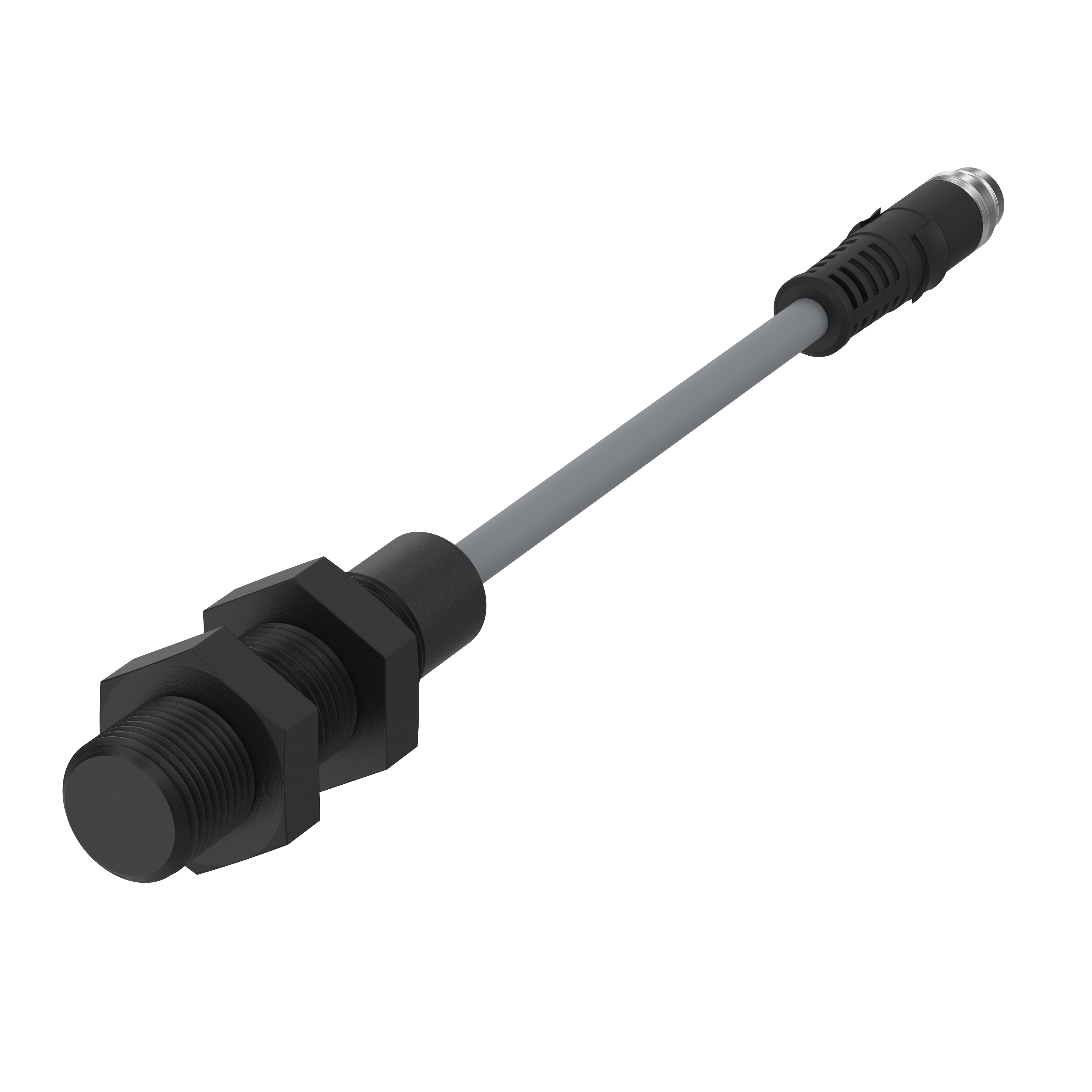

ELOBAU 12227102 Safety Sensor, Magnetically Actuated, N.O./N.C., M8 Size Pigtail
Get it by Tuesday, Dec 23
€124.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sensor |
| Actuation Type | Front |
| Assured Switch Off Distance | 37 mm |
| Assured Switching Distance | 15 mm |
| Cable Length | 0.1m |
| Cannot Be Mounted Flush | Yes |
| Communication Method | Hard Wired |
| Connector Size | M8 x 1 |
| Connector Type | 4 Pin |
| Degree Of Pollution | 3 |
| Housing Color | Silver |
| Housing Design | Cylindrical |
| Housing Material | PBT |
| Ip Rating | IP67, IP65, IP67, IP65 |
| Led Display | No |
| Max. Cable Temp. Range, Fixed Installation | 90°C |
| Max. Cable Temp. Range, Moving | 90°C |
| Max. Operating Temp. | 75°C |
| Max. Operating Temp. | 75 Deg. C |
| Max. Storage Temp. | 75°C |
| Max. Switching Current | 0.1A |
| Max. Switching Power | 3 W |
| Max. Switching Voltage | 28.8V DC |
| Min. Cable Temp. Range, Moving | -25° |
| Min. Cable Temperature Range, Fixed Installation | -25°C |
| Min. Operating Temp. | -25°C |
| Min. Storage Temp. | -25°C |
| Min. Switching Distance | 0.5 mm |
| Min. Switching Voltage | 19.2V DC |
| Mounting Type | Fastening Nut |
| Number Of Strands | 4 |
| Nut Material | PBT |
| Operating Voltage | 19.2-28.8V DC |
| Protection Class | Class III |
| Sensing Technology | Reed |
| Series Resistor | 22 ohms |
| Structure | Two Channel |
| Switching Frequency | 5 Hz |
| Switching Principle | Magnetic |
| Technology | Reed |
| Thread Size | M12 x 46 |
| Vibration Resistance | 10-55 Hz |
| Wire Cross Section | 0.25 sq. mm |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.2 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 1.2 |
| Country of Origin | DE |
Product Variants
| Product | Model | Ip Rating | Housing Material | Cable Length | Mounting Type | Led Display | Max. Operating Temp. | Housing Color | Min. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
153210 | - | Nylon | 1m | Screw | - | 70°C | - | -25°C | €36.91 | |
 |
171V62AY | - | PBT | - | Fastening Nut | No | 75°C | Silver | -25°C | €98.40 | |
 |
114270A0D | - | - | - | Screwed | No | - | - | - | €97.66 | |
 |
171V62VY | IP67, IP69K | Stainless Steel | - | Fastening Nut | No | 75°C | Silver | -25°C | - | RFQ
|
 |
114270-5 | IP67 | - | 1m | Screw | No | 75°C | Black | -25°C | €116.86 | |
 |
153V62-10 | - | - | - | - | - | - | - | - | €141.86 | |
 |
165270-5 | IP67 | - | 1m | Screwed | No | 75°C | Black | -25°C to +75°C | €98.45 |
