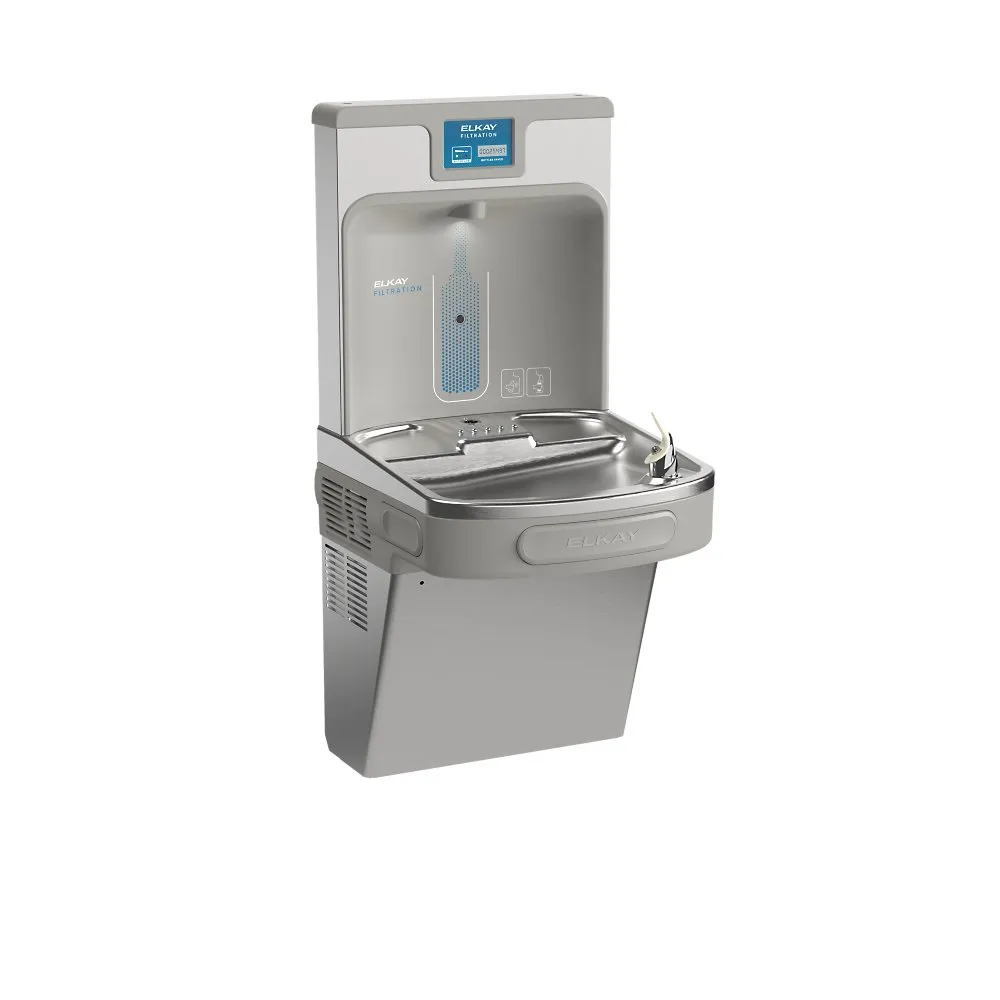

ELKAY LZS8WSSP Enhanced Bottle Filler and Single ADA Cooler Refrigerated, Stainless, High Capacity
Get it by Wednesday, Dec 24
Payment
Delivery
Product Specifications:
| Item | Water Cooler with Bottle Filling Station |
| Ada Compliant | Yes |
| Antimicrobial | Yes |
| Bi-level Field Adjustable | No |
| Bottle Filler Depth | 3 1/2" |
| Bottle Filler Width | 18" |
| Bubbler Style | Flexi Guard Safety Bubbler |
| Chilling Capacity | 8 GPH |
| Compressor Hp | 1/5 hp |
| Cooling Capacity | 8 GPH @ 50°F |
| Drain Outside Diameter | 1 1/4" |
| Environment | Indoor |
| Features | Antimicrobial, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor, Quick Filter Change |
| Filter Status Indicator | Yes |
| Filtered | Yes |
| Fountain Actuation | Front Pushbar, Side Pushbar |
| Frequency | 60 Hz |
| Full Load Current | 5A |
| Height | 39 7/16" |
| Housing Color | Silver |
| Housing Finish | Plain |
| Housing Material | Stainless Steel |
| Includes | Bottle Filler x Water Cooler x Filter |
| Includes Back Panel | No |
| Includes Pet Bowl | No |
| Includes Water Filter | Yes |
| Length | 18 3/8" |
| Manufacturer Warranty Length | 1 yr. Electrical Components, 1 yr. Water System, 5 yrs. Refrigeration System |
| Material | Stainless Steel |
| Maximum Cold Water Temperature | 50°F |
| Maximum Constant Stream Pressure | 105 psi |
| Minimum Constant Stream Pressure | 20 psi |
| Minimum Supply Line Pressure | 20 psi |
| Mounting Hole Diameter | 7/16" |
| Mounting Location | Wall Surface Mount |
| Mounting Type | Wall |
| No. Of Stations | 1 |
| Number Of Bubblers | 1 |
| Number Of Mounting Holes | 3 |
| Operating Voltage | 115V AC |
| Overall Depth | 19" |
| Overall Height | 39 1/2" |
| Overall Width | 18 3/8" |
| Power Consumption | 370 W |
| Power Source | Electric Corded |
| Product Datasheet | elkay-lzs8wssp.pdf |
| Refrigerant Type | R134A |
| Refrigeration | Refrigerated |
| Series | Ez Series |
| Station Type | Bottle Filling Dispenser, Single Fountain |
| Temperature Adjustment | Factory Set But Adjustable |
| Vandal Resistant | No |
| Width | 19" |
Shipping Info:
| Ship weight (kg) | 38.25 |
| Ship height (cm) | 73.66 |
| Ship length (cm) | 52.07 |
| Ship width (cm) | 50.01 |
| Country of Origin | US |
Product Details:
Elkay LZS8WSSP Water Cooler with Bottle Filling Station serves as a convenient and accessible source of potable water for hydration purposes. This drinking fountain is used to provide a reliable and sanitary way to access drinking water without the need for disposable bottles or cups. It is ideal for public places, such as schools, parks, offices, gyms and commercial buildings.
Features:
- It features ADA compliance, meeting standards for accessibility in public spaces while ensuring inclusivity for all users.
- This water cooler with bottle filling station has a refrigerated cooling capacity of 8 gallons per hour at 50 degrees F, providing chilled water.
- It comes with an automatic filter status reset feature, ensuring timely water filter replacement for optimal water quality.
- This water cooler with bottle filling station offers hands-free operation, promoting hygiene and minimising the spread of germs.
- It is equipped with a visual filter monitor, allowing users to easily monitor the status of the water filter for maintenance purposes.
- This drinking fountain features a stainless steel housing for durability, corrosion resistance and a sleek appearance.
- It includes antimicrobial components, enhancing sanitation by inhibiting the growth of bacteria and germs on the dispenser surfaces.
Compatible Accessories:
- Elkay 1000001600 Front Pushbar Kit: It can be used with a drinking fountain with a bottle filling station, allowing users to easily access the bubbler for direct drinking by pressing the front pushbar. It enhances convenience and accessibility, ensuring seamless operation of the drinking fountain in public spaces.
Frequently Asked Questions:
Q. How does the sensor-activated bottle filling station work?
A. The sensor-activated bottle filling station of LZS8WSSP detects when a bottle is placed beneath the dispenser and automatically activates the flow of water, allowing users to fill their bottles hands-free. This promotes hygiene and convenience, especially in high-traffic areas.
Q. How to maintain this water cooler with a bottle filling station?
A. Regular cleaning of exterior surfaces, timely filter replacement and periodic sanitisation are essential steps. Inspecting components for damage, checking the refrigeration system and monitoring water quality are also important.
Documentation:
Product Variants
| Product | Model | Includes Water Filter | Height | Housing Color | Drain Outside Diameter | Housing Finish | Bi-level Field Adjustable | Fountain Actuation | Vandal Resistant | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
VRCGRN8WSK | No | 39 3/4" | Gray | 1 1/4" | Plain | No | Front Push Button | Yes | €3,548.18 | RFQ
|
![]() |
LZS8WSLP | Yes | 39 7/16" | Light Gray | 1 1/4" | Granite | No | Front Pushbar, Side Pushbar | No | €2,731.02 | |
![]() |
LZSTL8WSLP | Yes | 39 1/2" | Light Gray | 1 1/2" | Granite | Yes | Front Pushbar, Side Pushbar | No | €3,354.23 | |
![]() |
EZSTL8WSLK | No | 39 1/16" | Light Gray | 1 1/2" | Granite | Yes | Front Pushbar, Side Pushbar | No | €3,042.68 | |
![]() |
LZSTL8WSSP | Yes | 39 1/2" | Silver | 1 1/2" | Plain | Yes | Front Pushbar, Side Pushbar | No | €3,420.24 | |
![]() |
LZS8WSL2K | - | - | - | - | - | - | - | - | €2,469.98 |
