ELDON JAMES L16-16WP Elbow 90 Degree 1 X 3/4 Inch Polypropylene
Item: AB4PFRModel: L16-16WPCross Ref: 1ZKN9
7 In Stock
Ships within 2 days via
10.00% off
€29.25 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Elbow, 90 Degrees |
| Application | Air, Chemicals, Non-Potable Water, Pharmaceutical |
| Barb Size | 1" |
| Barb Style | Single Barb |
| Basic Material | Plastic |
| Basic Pipe Fitting Material | Plastic |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Polypropylene |
| Color | White |
| Connection Type | Barbed x MNPT |
| Dimensions | 2.538" x 1.383" x 2.495" |
| Fitting Material | Polypropylene |
| Fitting Side A Connection Type | Barbed |
| Fitting Side A Tube Inner Diameter | 1" |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1" |
| Hex Size | 1.383" |
| Hose Barb Dash Size | 16 |
| Hose Barb Size | 1" |
| Material | Polypropylene |
| Max. Pressure | 150 psi |
| Maximum Operating Pressure | 125 psi @ 70°F |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | 9°F |
| Pipe Size | 1" |
| Resistance Properties | Chemical Resistant, Physical Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Standards | RoHS |
| Temp. Range | +9°F to +150°F |
| Thread Size | 1" |
| Thread Type | NPT |
| Tube Fitting Material | Polypropylene |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 6.34 |
| Ship length (cm) | 6.45 |
| Ship width (cm) | 3.51 |
| HS code | 3917400090 |
| Country of Origin | US |
Product Variants
| Model | Connection Type | Fitting Material | Pipe Size | Temp. Range | Barb Size | Specific Fitting Shape | Fitting Side B Connection Type | Fitting Side B Pipe Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

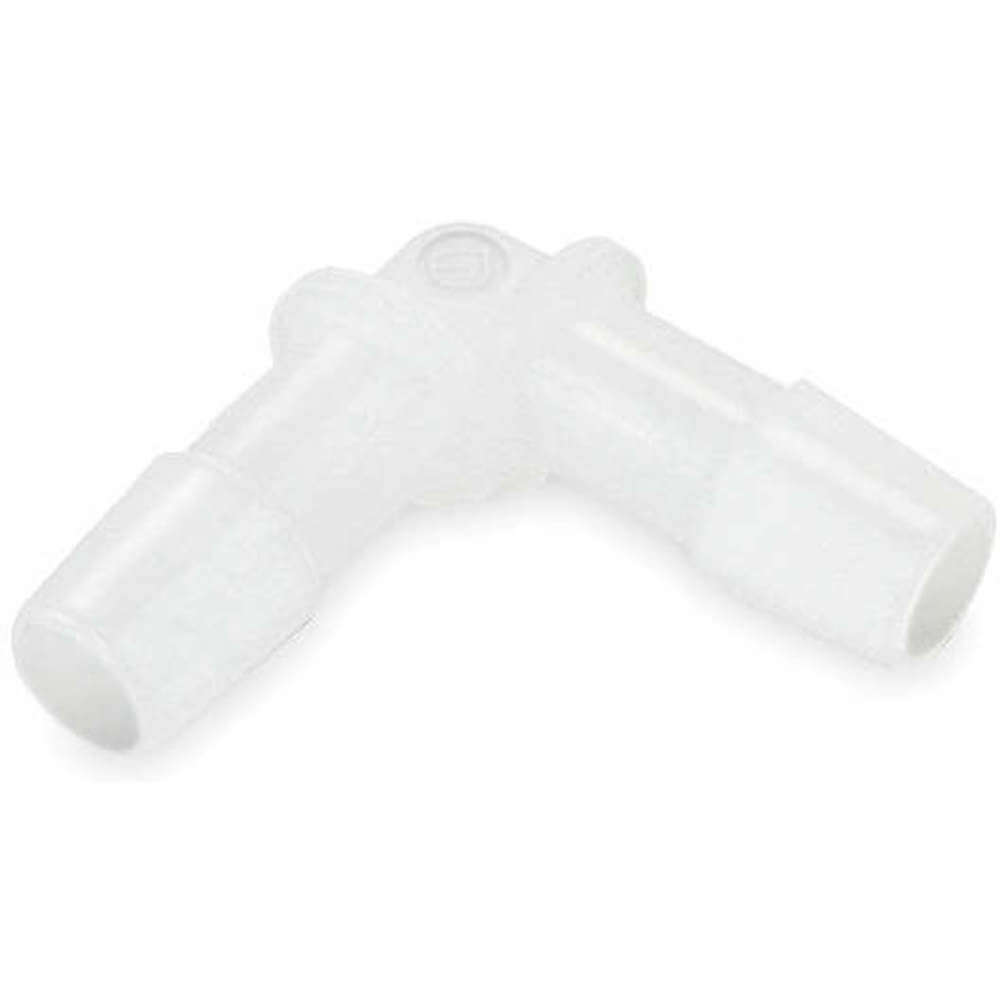

| L0-2NK | Barbed | PVDF | - | -80°F to +226°F | 1/8" | Elbow | Barbed | - | 5 | €19.66 | |
| L0-4NK | Barbed | PVDF | - | -80°F to +226°F | 1/4" | Elbow | Barbed | - | 5 | €39.13 | |
| L0-6NK | Barbed | PVDF | - | -80°F to +226°F | 3/8" | Elbow | Barbed | - | 5 | €42.96 | |

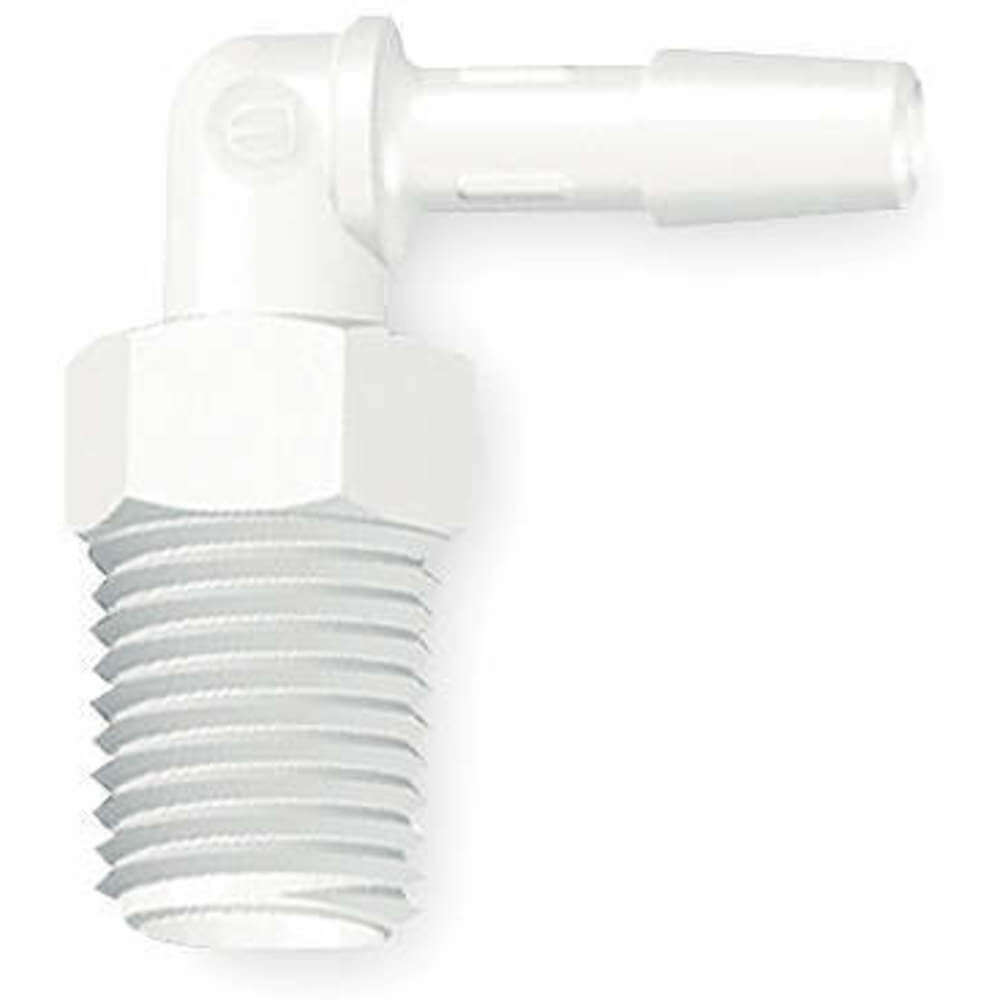

| L12-12WP | Barbed x MNPT | Polypropylene | 3/4" | +9°F to +150°F | 3/4" | Elbow Adapter | MNPT | 3/4" | 10 | €32.31 | |
| L2-3WP | Barbed x MNPT | Polypropylene | 1/8" | +9°F to +150°F | 3/16" | Elbow Adapter | MNPT | 1/8" | 10 | €23.37 | |
| L2-4WP | Barbed x MNPT | Polypropylene | 1/8" | +9°F to +150°F | 1/4" | Elbow Adapter | MNPT | 1/8" | 10 | €23.33 | |
| L2-6WP | Barbed x MNPT | Polypropylene | 1/8" | +9°F to +150°F | 3/8" | Elbow Adapter | MNPT | 1/8" | 10 | €22.84 |
