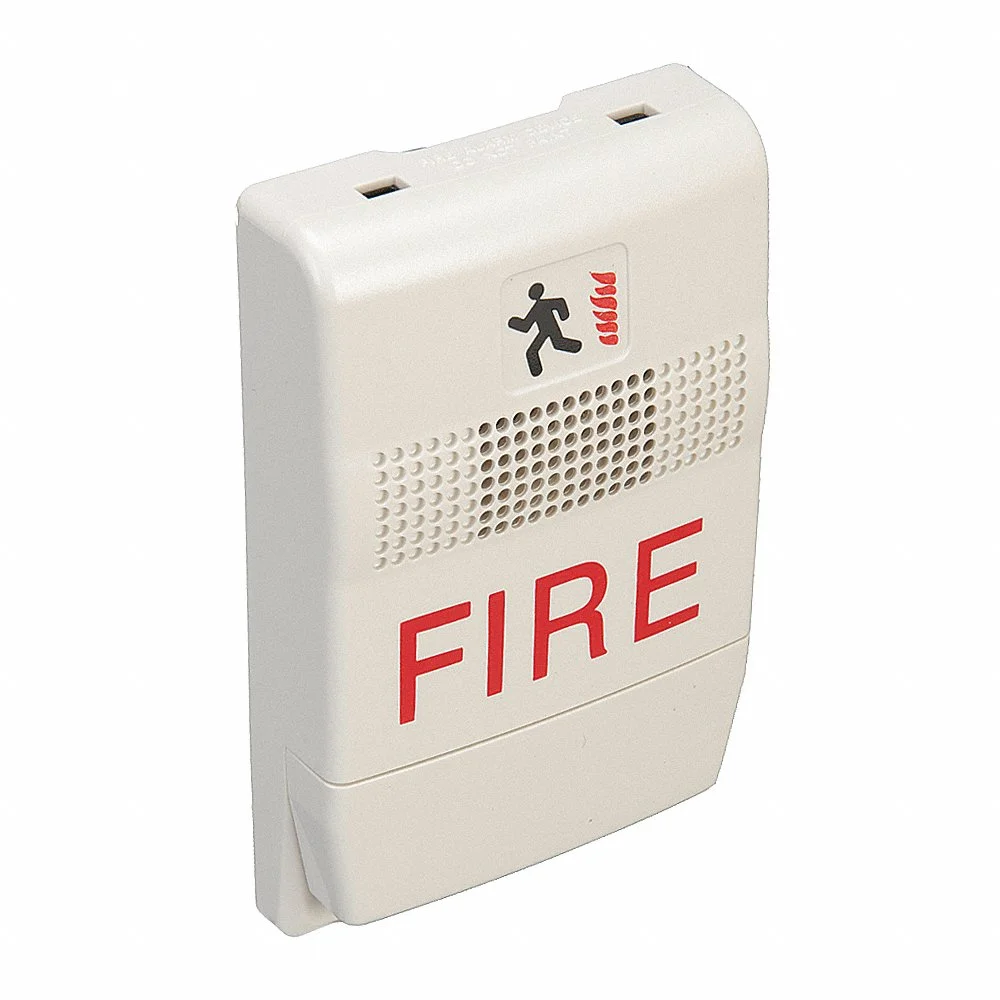

EDWARDS SIGNALING EG1F-C Chime, Marked Fire, White, Flush/Surface, 13/16 Inch Depth, 2 3/4 Inch Length
Item: AA8AKPModel: EG1F-CCross Ref: 16X349
7 In Stock
Ships within 2 days via
5.00% off
€129.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Chime |
| Alarm Amps | 30/60 mA |
| Ambient Temp. | +32°F to +120°F |
| Application | Signaling |
| Color | White |
| Depth | 13/16" |
| Finish | White |
| Height | 4 1/2" |
| Humidity Range | 93 % RH |
| Length | 2 3/4" |
| Max. Operating Temp. | 120°F |
| Min. Operating Temp. | 32°F |
| Mounting Location | Ceiling Mount, Wall Mount |
| Mounting Style | Flush Mount, Surface Mount |
| Mounting Type | Flush, Surface |
| Operating Amps | 30 mA DC, 60 mA FWR |
| Operating Voltage | 24V DC |
| Overall Depth | 13/16" |
| Overall Height | 2 3/4" |
| Overall Width | 2 3/4" |
| Peak Output | 78.6 dBA |
| Peak Output (dba) | 78.6 |
| Power Source | Wire |
| Product Datasheet | edwards-signaling-eg1-c.pdf |
| Product Type | Chime |
| Sound Style | Chime |
| Type | Marked Fire |
| Voltage | 24V DC |
| Width | 2 4/5" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 4.83 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 5.84 |
| HS code | 8531800050 |
| Country of Origin | CN |
