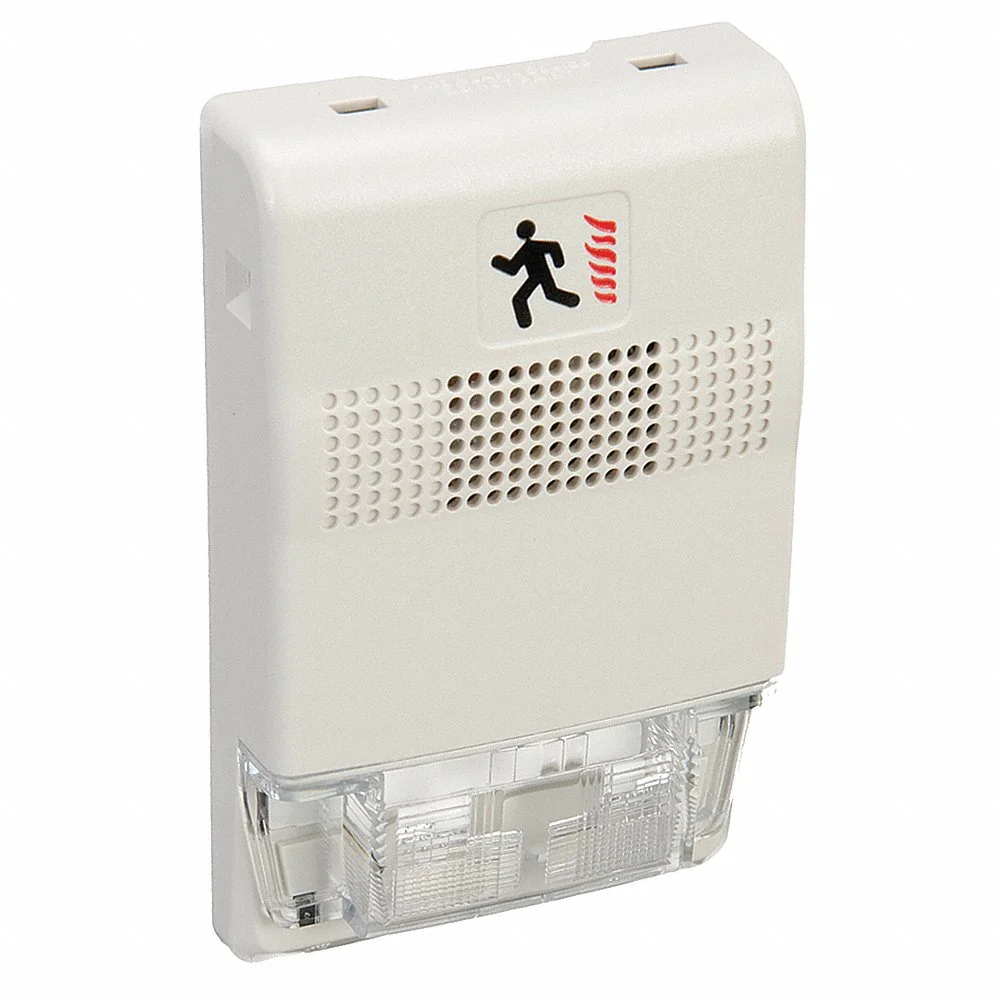

EDWARDS SIGNALING EG1-CVM Chime Strobe, White, Flush/Surface, 13/16 Inch Depth, 2 3/4 Inch Length
Get it by Monday, Jul 13
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€187.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Chime |
| Alarm Amps | 99-277/154-383 mA |
| Ambient Temp. | +32°F to +120°F |
| Color | White |
| Control Protocol | Direct Wire |
| Features | Textured Housing |
| Finish | White |
| Height | 4 1/2" |
| Housing Color | White |
| Housing Material | Plastic |
| Humidity Range | 93 % RH |
| Length | 2 3/4" |
| Lens Color | Clear |
| Light Intensity | 15 cd, 30 cd, 75 cd, 110 cd |
| Light Operating Mode | Strobe |
| Light Source | Xenon |
| Max. Alarm Volume @ 10 Ft. | 66 dB |
| Max. Operating Temp. | 120°F |
| Min. Operating Temp. | 32°F |
| Mounting Location | Wall Mount |
| Mounting Style | Flush Mount, Surface Mount |
| Mounting Type | Flush, Surface |
| Operating Voltage | 16-33V DC |
| Overall Depth | 13/16" |
| Overall Height | 4 1/2" |
| Overall Width | 2 3/4" |
| Peak Output | 78.6 dBA |
| Peak Output (dba) | 78.6 |
| Power Source | Wire |
| Product Datasheet | edwards-signaling-eg1-c.pdf |
| Product Type | Chime And Strobe |
| Sound Style | Tone |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.59 |
| HS code | 8531800050 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Depth | Color | Alarm Amps | Height | Type | Peak Output | Housing Material | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EG1F-CVM | - | White | 99-277/154-383 mA | 4 1/2" | Marked Fire | 78.6 dBA | Plastic | Flush, Surface | €235.21 | |
 |
EG1RF-CVM | 0.812" | Red | 99-277/154-383 mA | - | Marked Fire | 78.6 dBA | Plastic | Flush, Surface | €235.21 | |
 |
EG1R-CVM | 0.844" | Red | 0.277A | 4 1/2" | - | 78.6 dBA | Plastic | - | €209.65 |
