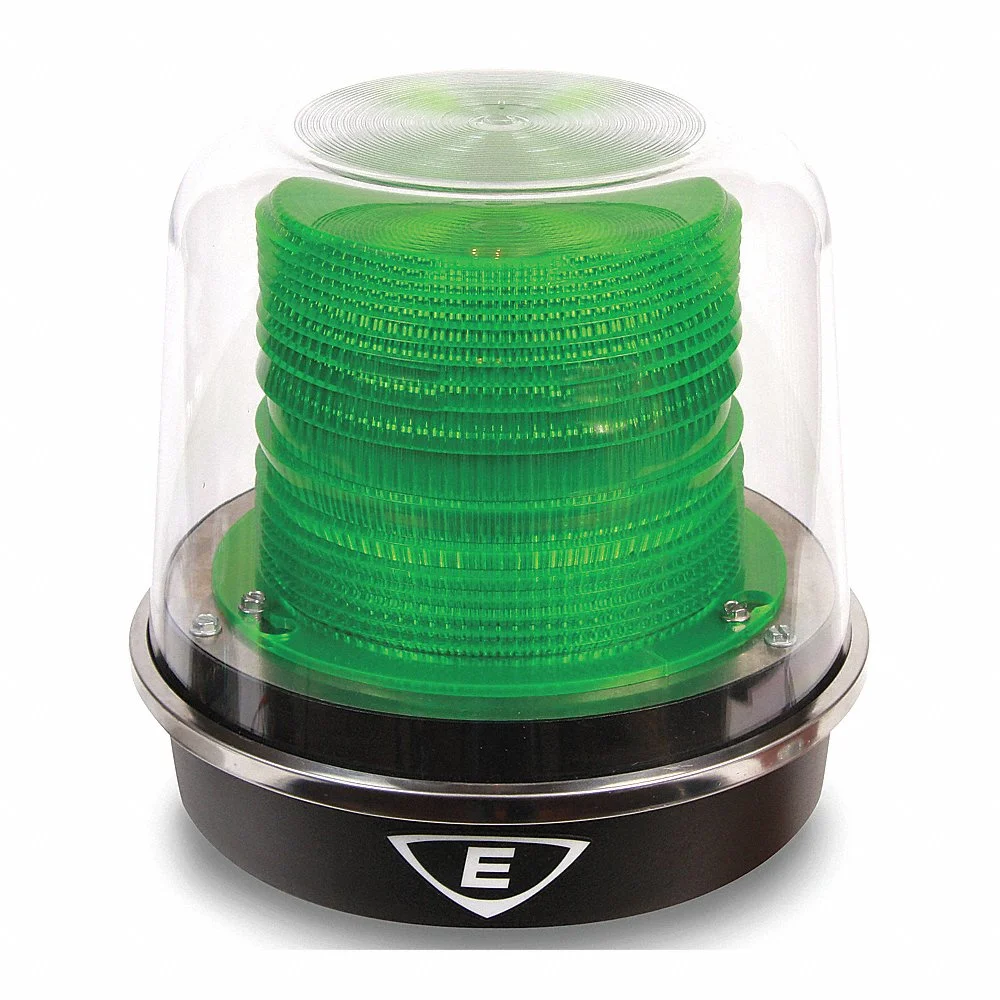

EDWARDS SIGNALING 94PLEDMG24ADB LED Beacon, NEMA4X, Green
Item: AD4BJXModel: 94PLEDMG24ADBCross Ref: 40Z975
7 In Stock
Ships within 2 days via
10.00% off
€910.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Beacon Light |
| Amps Drawn | 0.7/0.55A |
| Color | Green |
| Connection Type | Wire Leads |
| Control Protocol | Direct Wire |
| Dia. | 8 1/4" |
| Diameter | 7 3/4" |
| Flashes Per Minute | 65/85/120/460/480/750/1000 FPM |
| Footprint Diameter | 8 1/4" |
| For Location | Indoor/Outdoor |
| Height | 8 1/4" |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Includes Mounting Hardware | No Mounting Hardware |
| Ip Rating | IP66 |
| Lamp Color | Green |
| Lamp Life | 148000 hrs. |
| Lamp Type | LED |
| Lens Color | Green |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 148000 hrs. |
| Light Operating Mode | Flashing, Steady |
| Mounting | Conduit |
| Mounting Location | Conduit Mount |
| Mounting Mechanism | 3/4" FNPT |
| Mounting Style | Surface Mount |
| Mounting Thread Size | 3/4" |
| Nema Rating | NEMA 4X |
| Operating Current | 0.55A @ 24V AC/DC, 0.7A @ 12V DC |
| Operating Temp. | -31°F to +150.8°F |
| Operating Temperature - Maximum | 151°F |
| Operating Temperature - Minimum | -31°F |
| Operating Voltage | 12V DC/24V AC/DC |
| Overall Diameter | 8 1/4" |
| Overall Height | 7 3/4" |
| Power Source | Wire |
| Product Type | Warning Light |
| Requires Base | Base Not Required |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 21.91 |
| Ship width (cm) | 22.86 |
| HS code | 8531800050 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Diameter | Lens Color | Power Source | Mounting | Lamp Life | Housing Material | Lens Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

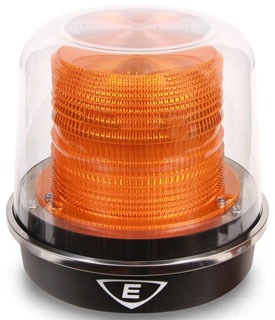

94PLEDMA24ADB | 8 1/4" | 7 3/4" | Amber | Wire | Conduit | 148000 hrs. | Polycarbonate | Fresnel | €1,011.99 | |
 |

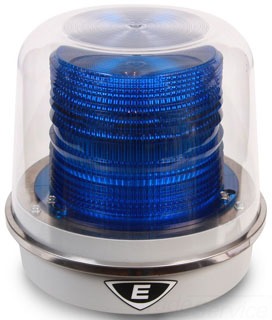

94PLEDMB24ADB | 8 1/4" | 7 3/4" | - | 24V AC/DC | Conduit | 148000 hrs. | Polycarbonate | Fresnel | €1,011.99 | |
 |
94PLEDMM24ADB | 8 1/4" | 7 3/4" | Magenta | Wire | Conduit | 148000 hrs. | Polycarbonate | Fresnel | €1,019.79 | |
 |

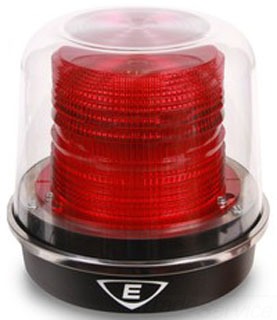

94PLEDMR24ADB | 8 1/4" | 7 3/4" | Red | Wire | Conduit | 148000 hrs. | Polycarbonate | Fresnel | €1,011.99 | |
|
94PLEDMW24ADB | 8 1/4" | 7 3/4" | Clear | Wire | Conduit | 148000 hrs. | Polycarbonate | Fresnel | €1,011.99 | |
|
94PLEDMA120AB | 8 1/4" | 7 3/4" | Amber | - | Conduit | 148000 hrs. | Polycarbonate | Fresnel | €1,066.55 | |
|
94PLEDMB120AB | 8 1/4" | 7 3/4" | Blue | Wire | Conduit | 148000 hrs. | Polycarbonate | Fresnel | €1,093.16 |
