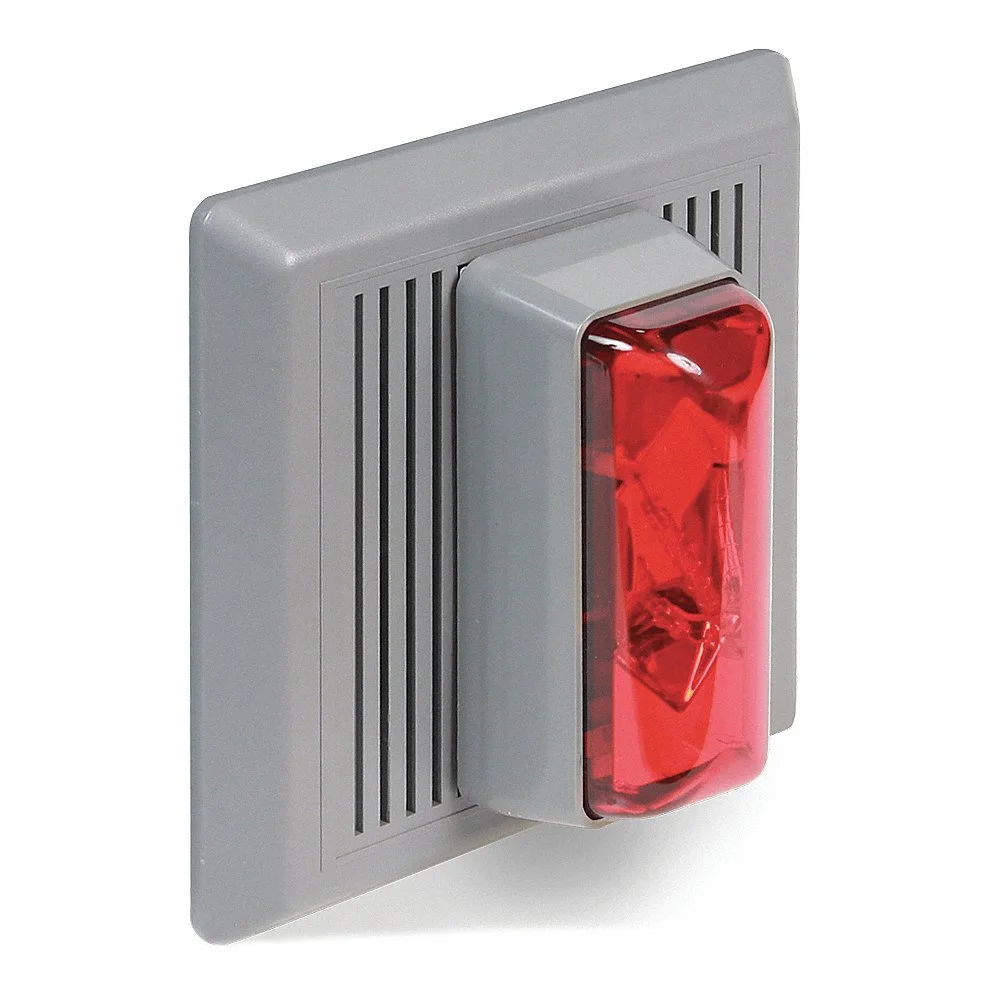

EDWARDS SIGNALING 869STRR-N5 Flush Mount Horn/Strobe, 120V, Red, 5 1/2 x 5 1/2 Inch Size
Item: AA7PWAModel: 869STRR-N5Cross Ref: 16G550
7 In Stock
Ships within 2 days via
5.00% off
€472.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Strobe |
| Amps | 0.09A |
| Amps Drawn | 148 mA |
| Brightness Selection | Fixed Brightness |
| Connection Type | Wire Leads |
| Control Protocol | Direct Wire |
| Depth | 5/8" |
| Flashes Per Minute | 60 FPM |
| For Location | Indoor |
| Height | 5 1/2" |
| Housing Color | Gray |
| Housing Material | Thermoplastic |
| Lamp Type | Strobe |
| Lens Color | Red |
| Light Intensity | 21 cP |
| Light Operating Mode | Strobe |
| Light Output | 21 cP |
| Light Source | Xenon |
| Max. Alarm Volume @ 1 M | 100 dB |
| Max. Alarm Volume @ 10 Ft. | 90 dB |
| Max. Operating Temp. | 120°F |
| Min. Operating Temp. | 32°F |
| Mounting | Flush Or Panel |
| Mounting Location | Wall Mount |
| Mounting Style | Flush Mount |
| No. Of Sound Patterns | 1 |
| Operating Amps | 0.148A |
| Operating Temp. | +32°F to +120°F |
| Operating Voltage | 120V AC |
| Overall Height | 5/8" |
| Overall Length | 5 1/2" |
| Overall Width | 5 1/2" |
| Power Source | Wire |
| Product Datasheet | edwards-signaling-869stra-n5.pdf |
| Product Type | Horn And Strobe |
| Sound Continuity | Continuous |
| Sound Level | 90dB @ 10 ft. |
| Sound Style | Horn |
| Vibration | No Vibration |
| Voltage | 120V AC |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 14.61 |
| HS code | 8531800050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Amps | Mounting | Lamp Type | Sound Level | Operating Voltage | Lens Color | Light Intensity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
869STRA-N5 | 120V AC | 0.09A | Flush Or Panel | Strobe | 90dB @ 10 ft. | 120V AC | Amber | 90 cP | €468.99 | |
 |
869STRB-N5 | 120V AC | 0.09A | Flush Or Panel | Strobe | 90dB @ 10 ft. | 120V AC | Blue | 20 cP | €514.70 | |
 |
869STRC-N5 | 120V AC | 0.09A | Flush Or Panel | Strobe | 90dB @ 10 ft. | 120V AC | Clear | 150 cP | €445.37 | |
|
869STRR-AQ | 24V AC/DC | 0.219A | Flush Or Panel | Strobe | 90dB @ 10 ft. | 24V AC/DC | Red | 21 cP | €491.05 | |
|
869STRA-AQ | 24V AC/DC | 0.219A | Flush Or Panel | Strobe | 90dB @ 10 ft. | 24V AC/DC | Amber | 90 cP | €477.88 | |
|
869STRB-AQ | 24V AC/DC | 0.219A | Indoor Flush | Strobe | 90dB @ 10 ft. | 24V AC/DC | Blue | 20 cP | €465.82 | |
|
869STRC-AQ | 24V AC/DC | 0.219A | Flush Or Panel | Strobe | 90dB @ 10 ft. | 24V AC/DC | Clear | 150 cP | €487.57 |
