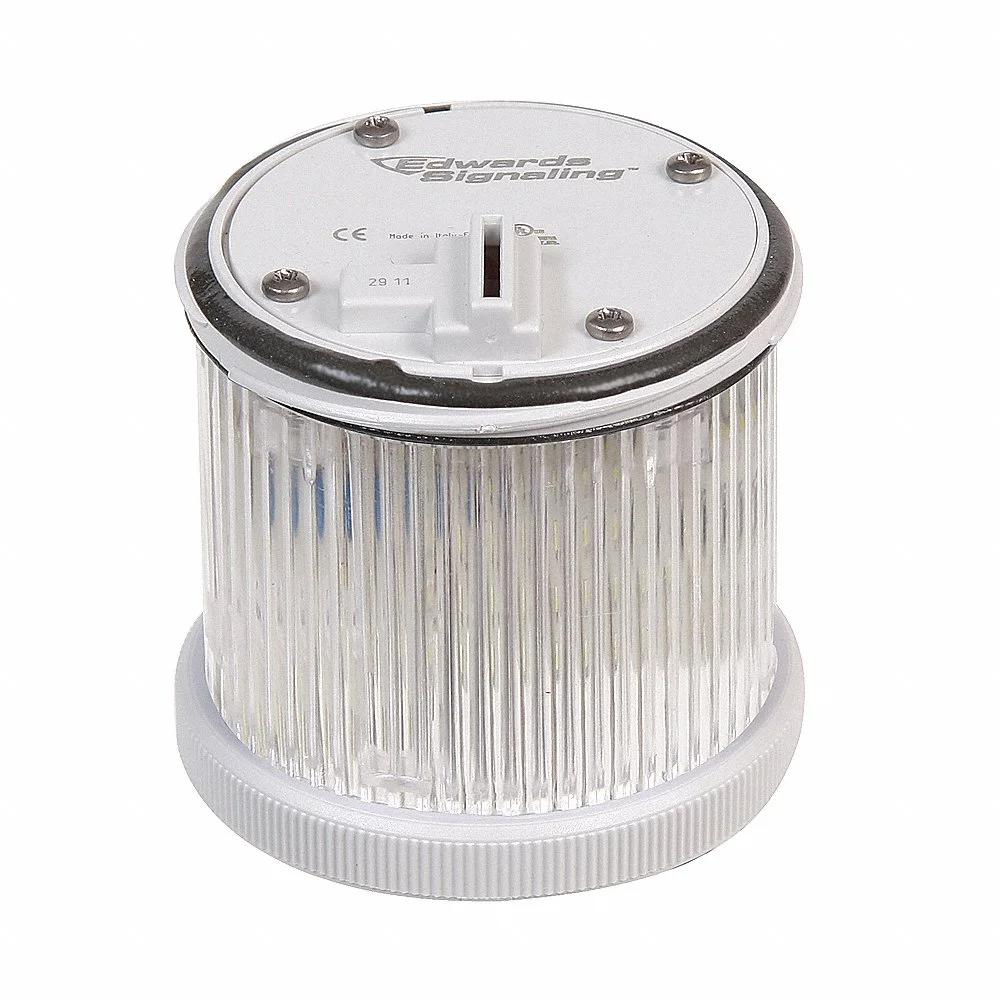

EDWARDS SIGNALING 270CLEDMW24AD Stack Light, White, 70mm Size
Item: AD4BKMModel: 270CLEDMW24ADCross Ref: 40Z989
7 In Stock
Ships within 2 days via
10.00% off
€282.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Stacklight |
| Color | White |
| Compatible With Series | 200 Class |
| Diameter | 2.953" |
| Flashes Per Minute | 75/85 FPM |
| For Location | Indoor/Outdoor |
| Height | 2.323" |
| Housing Material | Plastic |
| Ip Rating | IP54, IP66 |
| Lamp Type | LED |
| Lens Color | White |
| Lens Design | Snap Mount |
| Lens Material | Polycarbonate |
| Lens Shape | Cylinder |
| Light Mode | Multi-Mode |
| Light Operating Mode | Flashing, Steady |
| Mounting | Surface |
| Nema Rating | NEMA 3R, NEMA 4X |
| Number Of Lights | 1 |
| Operating Current | 0.065A @ 24V DC, 0.075A @ 24V AC |
| Operating Temp. | -22°F to +140°F |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | -22°F |
| Operating Voltage | 24V AC/DC |
| Overall Diameter | 70 mm |
| Overall Height | 3 1/8" |
| Power Source | 24V AC/DC |
| Sounder Included | No |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 8.64 |
| HS code | 8531800050 |
| Country of Origin | US |
Product Variants
| Model | Height | Power Source | Housing Material | Nema Rating | Ip Rating | Lamp Type | Operating Temp. | Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 270CLEDMA24AD | 2.323" | 24V AC/DC | Plastic | NEMA 3R, NEMA 4X | IP54, IP66 | LED | -22°F to +140°F | - | €308.42 | |
| 270CLEDMB24AD | 2.323" | 24V AC/DC | Plastic | NEMA 3R, NEMA 4X | IP54, IP66 | LED | -22°F to +140°F | - | €309.86 | |
| 270CLEDMG24AD | 2.323" | 24V AC/DC | Plastic | NEMA 3R, NEMA 4X | IP54, IP66 | LED | -22°F to +140°F | - | €332.04 | |
| 270CLEDMR24AD | 2.323" | 24V AC/DC | Plastic | NEMA 3R, NEMA 4X | IP54, IP66 | LED | -22°F to +140°F | - | €332.04 | |
| 270CLEDMA120A | 2.323" | 120V AC | Plastic | NEMA 3R, NEMA 4X | IP54, IP66 | LED | -22°F to +140°F | - | €329.71 | |
| 270CLEDMB120A | 2.323" | 120V AC | Plastic | NEMA 3R, NEMA 4X | IP54, IP66 | LED | -22°F to +140°F | - | €308.42 | |
| 270CLEDMG120A | 2.323" | 120V AC | Plastic | NEMA 3R, NEMA 4X | IP54, IP66 | LED | -22°F to +140°F | - | €329.71 |
