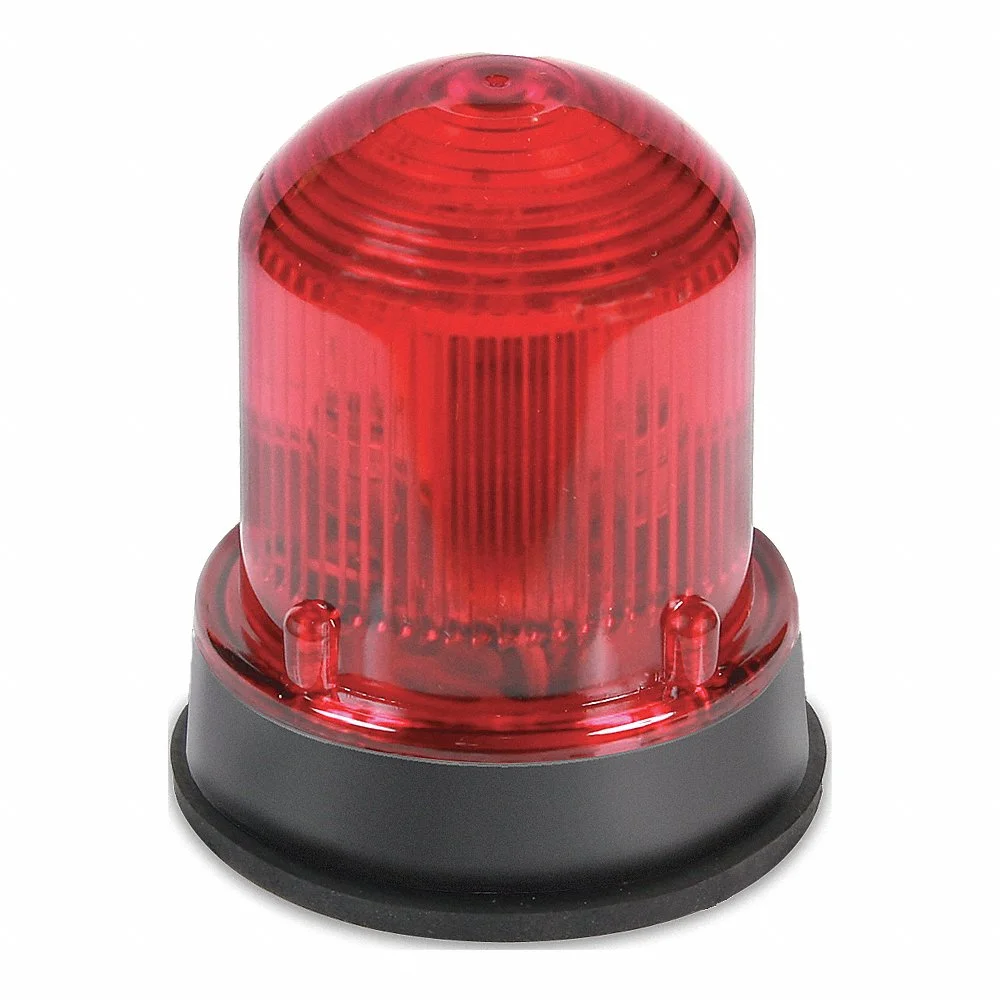

EDWARDS SIGNALING 125XBRMR24DB Flashing LED Beacon, 24V, Red, 0.215A Rating
Item: AA7PYWModel: 125XBRMR24DBCross Ref: 16G616
7 In Stock
Ships within 2 days via
5.00% off
€542.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indicating Beacon Flashing |
| Amps Drawn | 0.215A |
| Audible Alarm Type | Visual |
| Color | Red |
| Connection Type | Wire Leads |
| Control Protocol | Direct Wire |
| Dia. | 3 1/4" |
| Features | Shock Proof, Vibration Proof, Shatter Resistant, Chemical Resistant, Corrosion Resistant, Heat Resistant |
| Flashes Per Minute | 65 FPM |
| Footprint Dia. | 3 1/4" |
| For Location | Indoor, Outdoor |
| For Use With | Outdoor |
| Height | 3 7/8" |
| Housing Color | Black |
| Housing Material | 33% Glass Filled Nylon |
| Included Mounting Hardware | No Mounting Hardware |
| Lamp Color | Red |
| Lamp Life | 148000 hrs. |
| Lamp Type | LED |
| Lens Color | Red |
| Lens Material | Polycarbonate |
| Lifespan | 148000 hrs. |
| Light Operating Mode | Flashing, Steady |
| Light Source | LED |
| Max. Operating Temp. | 150°F |
| Min. Operating Temp. | -31°F |
| Mounting Location | Conduit Mount, Panel Mount |
| Mounting Mechanism | 1/2" FNPT, 3/4" MNPT |
| Mounting Style | Surface Mount |
| Mounting Thread Size | 1/2" Internal NPT, 3/4" External NPT |
| Nema Rating | NEMA 4X |
| Operating Amps | 0.215A |
| Operating Voltage | 24V DC |
| Overall Height | 3 7/8" |
| Power Source | Wire |
| Product Datasheet | edwards-signaling-125xbrmw120ab.pdf |
| Product Type | Warning Light |
| Requires Base | Base Not Required |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 10.16 |
| HS code | 8531800050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Color | Operating Voltage | Lens Color | Operating Amps | Amps Drawn | Lamp Color | Lens Material | Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
125XBRMA120AB | Amber | 120V AC | Amber | 0.108A | 0.108A | Amber | Polycarbonate | 3 1/4" | €611.02 | |
|
125XBRMA24DB | Amber | 24V DC | Amber | 0.215A | 0.215A | Amber | Polycarbonate | 3 1/4" | €598.48 | |
 |
125XBRMB120AB | Blue | 120V AC | Blue | 0.108A | 0.108A | Blue | Polycarbonate | 3 1/4" | €611.02 | |
|
125XBRMB24DB | Blue | 24V DC | Blue | 0.215A | 0.215A | Blue | Polycarbonate | 3 1/4" | €563.91 | |
 |
125XBRMG120AB | Green | 120V AC | Green | 0.108A | 0.108A | Green | Polycarbonate | 3 1/4" | €611.02 | |
|
125XBRMG24DB | Green | 24V DC | Green | 0.215A | 0.215A | Green | Polycarbonate | 3 1/4" | €563.91 | |
|
125XBRMR120AB | Red | 120V AC | Red | 0.108A | 0.108A | Red | Polycarbonate | 3 1/4" | €611.02 |
