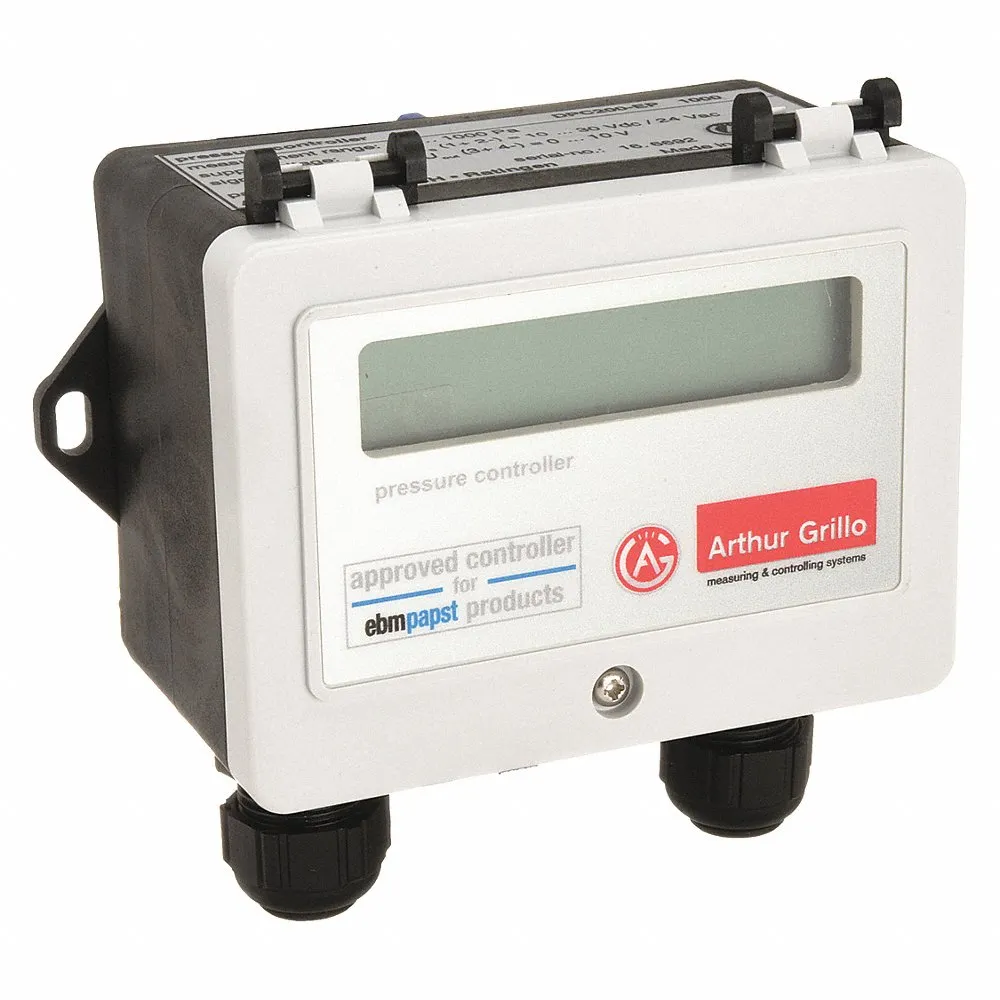

EBM-PAPST 700-00-1063 Digital Differential Pressure Gauge With Transducer, 0 To 1000 Pa, 5 mm Smooth Barb
Item: CP4BGNModel: 700-00-1063Cross Ref: 33TD73
7 In Stock
Ships within 2 days via
5.00% off
€585.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Transducer |
| Accuracy | ±1.00% |
| Adjustable Set Points | Yes |
| Ambient Operating Temp. | -10°C to +50°C |
| Application | Filtration |
| Auto Shutoff | No |
| Backlit Screen | No |
| Basic Gauge Case Material | Plastic |
| Battery Included | No |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | White |
| Case Depth | 2 4/25" |
| Case Height | 2 19/25" |
| Case Shape | Rectangle |
| Case Width | 3.74" |
| Compatible Process Media | Air |
| Differential Gauge Connection Size | 5 mm |
| Differential Gauge Connection Type | Smooth Barb |
| Digital Differential Pressure Gauge Type | Digital Differential Pressure Gauge With Transducer |
| Digital Gauge Accuracy | -1% to +1% |
| Display Resolution | 0.01 in. wg |
| Display Screen Type | LCD |
| Display Units | Cfm, In Wg, M3/Hr, Pa |
| Features | Large Diaphragm Element Reduces Fluctuations |
| For Tubing Size | 5 mm to 6 mm |
| Gauge Connection Location | Bottom |
| Hazardous Location Rating | Not Rated |
| Housing Material | Plastic |
| Included | Controller |
| Ip Rating, Nema Rating | IP54 |
| Low Battery Indicator | No |
| Max. Working Static Pressure | 0 Pa to 1000 Pa |
| Mounting Hardware Included | No |
| Mounting Orientation | Upright Only |
| Mounting Type | Wall Mounted |
| No. Of Digits | 16 |
| No. Of Display Lines | 2 |
| No. Of Set Points | 2 |
| No. Of Switches | 3 |
| Non Sparking | No |
| Output | 0-10V DC |
| Panel-mountable | No |
| Peak Hold | No |
| Primary Display Range | 0 Pa to 1000 Pa |
| Process Connection Location | Bottom |
| Process Connection Size | 5 mm |
| Process Connection Type | Smooth Barb |
| Sensor Material | Silicone |
| Sensor Type | Diaphragm |
| Set Point Selection | Dry Contact |
| Zero Error | -0.75% to +0.75% |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Working Static Pressure | Primary Display Range | Ambient Operating Temp. | Display Range | Process Connection Size | Process Connection Location | Process Connection Type | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 700-00-1064 | 0 Pa to 2000 Pa | 0 Pa to 2000 Pa | 14°F to 122°F | 0 to 2000 Pa, 0 to 8 in. wg | 5 mm | Bottom | Smooth Barb | Plastic | - | RFQ
|
| 700-00-1065 | 0 Pa to 4000 Pa | 0 Pa to 4000 Pa | 14°F to 122°F | 0 to 16 in. wg, 0 to 4000 Pa | 5 mm | Bottom | Smooth Barb | Plastic | €615.95 | |
| 700-00-1061 | 0 Pa to 50 Pa | 0 Pa to 50 Pa | 14°F to 122°F | 0 to 0.2 in. wg, 0 to 50 Pa | 5 mm | Bottom | Smooth Barb | Plastic | €615.95 | |
| 700-00-1062 | 0 Pa to 500 Pa | 0 Pa to 500 Pa | 14°F to 122°F | 0 to 2 in. wg, 0 to 500 Pa | 5 mm | Bottom | Smooth Barb | Plastic | €615.95 |
