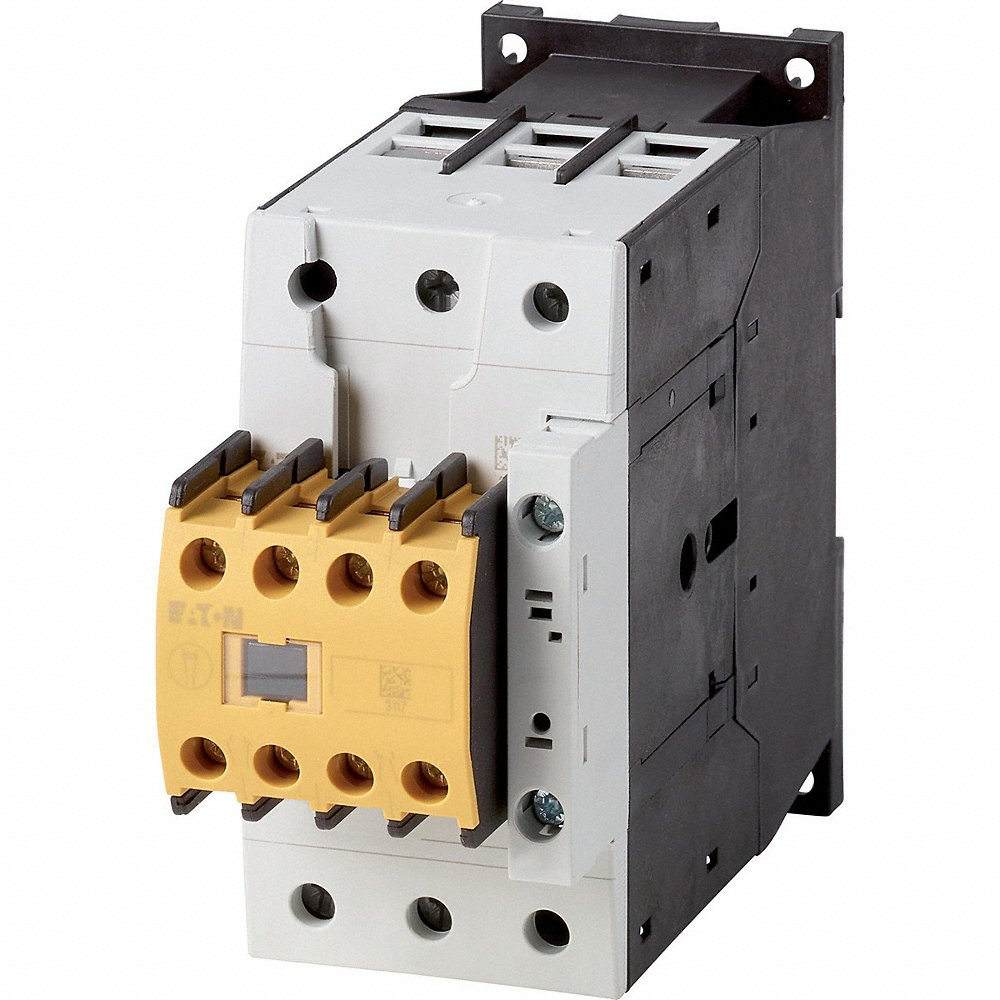

EATON XTSE065D22TD Magnetic Contactor, Non-Reversing, 24VDC
Item: DC2KDAModel: XTSE065D22TDCross Ref: 810WF1
7 In Stock
Ships within 2 days via
5.00% off
€1,693.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Auxiliary Contact Form | 2NO, 2NC |
| Auxiliary Contact Module Capacity | Not Applicable |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 24V DC |
| Contactor Style | IEC |
| Frame Type | D |
| Hp @ 3 Ph-240v | 25 hp |
| Hp @ 3 Phase-208v | 20 hp |
| Hp @ 3 Phase-480v | 40 hp |
| Hp @ 3 Phase-600v Ac | 60 hp |
| Includes Auxiliary Contacts | Yes |
| Mounting Style | Bolt-On, Panel Mount, DIN Rail |
| Nema Enclosure Rating | NO Enclosure |
| No. Of Auxillary Contacts | 4 |
| Overall Depth | 2 2/5" |
| Overall Height | 2 1/2" |
| Overall Width | 4.7" |
| Series | XT Series |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 10.16 |
| Country of Origin | DE |
