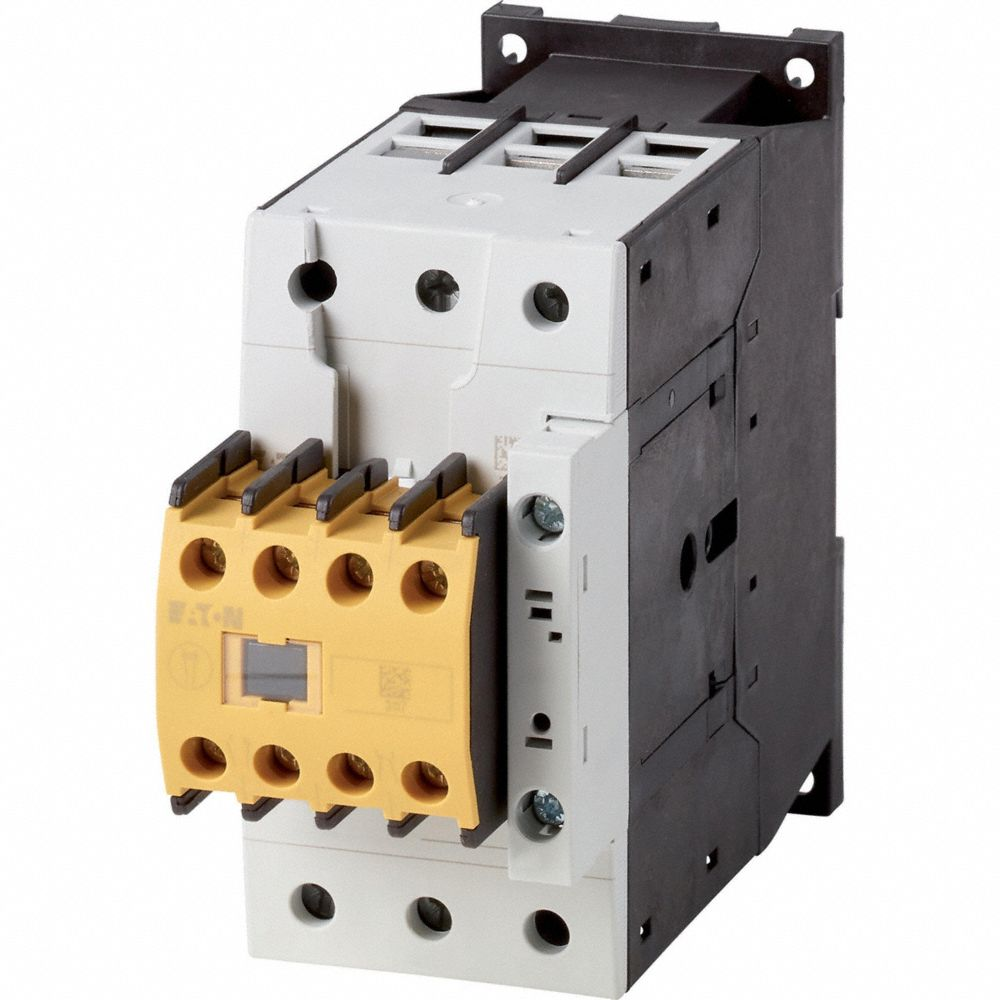

EATON XTSE050D22A Magnetic Contactor, 3 Pole, 50 A
Item: EA3YXAModel: XTSE050D22ACross Ref: 810WE8
7 In Stock
Ships within 2 days via
5.00% off
€1,318.51 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Auxiliary Contact Form | 2NO/2NC |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 110-120V AC |
| Contactor Style | IEC |
| Embedded Surge Suppressor | No |
| Frame Size | D |
| Frame Type | D |
| Full Load Amps-inductive | 50A |
| Full Load Amps-resistive | 50A |
| Hp @ 3 Ph-240v | 20 hp |
| Hp @ 3 Phase-208v | 15 hp |
| Hp @ 3 Phase-480v | 40 hp |
| Hp @ 3 Phase-600v Ac | 50 hp |
| Integrated Surge Suppression | No |
| Mounting Style | Bolt-On, Panel Mount, DIN Rail |
| Nema Enclosure Rating | NO Enclosure |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 110-120V AC |
| Overall Depth | 2 2/5" |
| Overall Height | 5.9" |
| Overall Width | 4.7" |
| Series | XT Series |
| Wire Termination Type | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 10.16 |
| Country of Origin | DE |
Product Variants
| Product | Model | Coil Voltage | Frame Size | Overall Height | Full Load Amps-resistive | Overall Width | Full Load Amps-inductive | Nominal Coil Voltage @ 60hz | Auxiliary Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XTSE007BE23A | 110-120V AC | Be | 27.17" | 7A | 17 18/25" | 7A | 110-120V AC | 2NO/3NC | €604.21 | |
 |

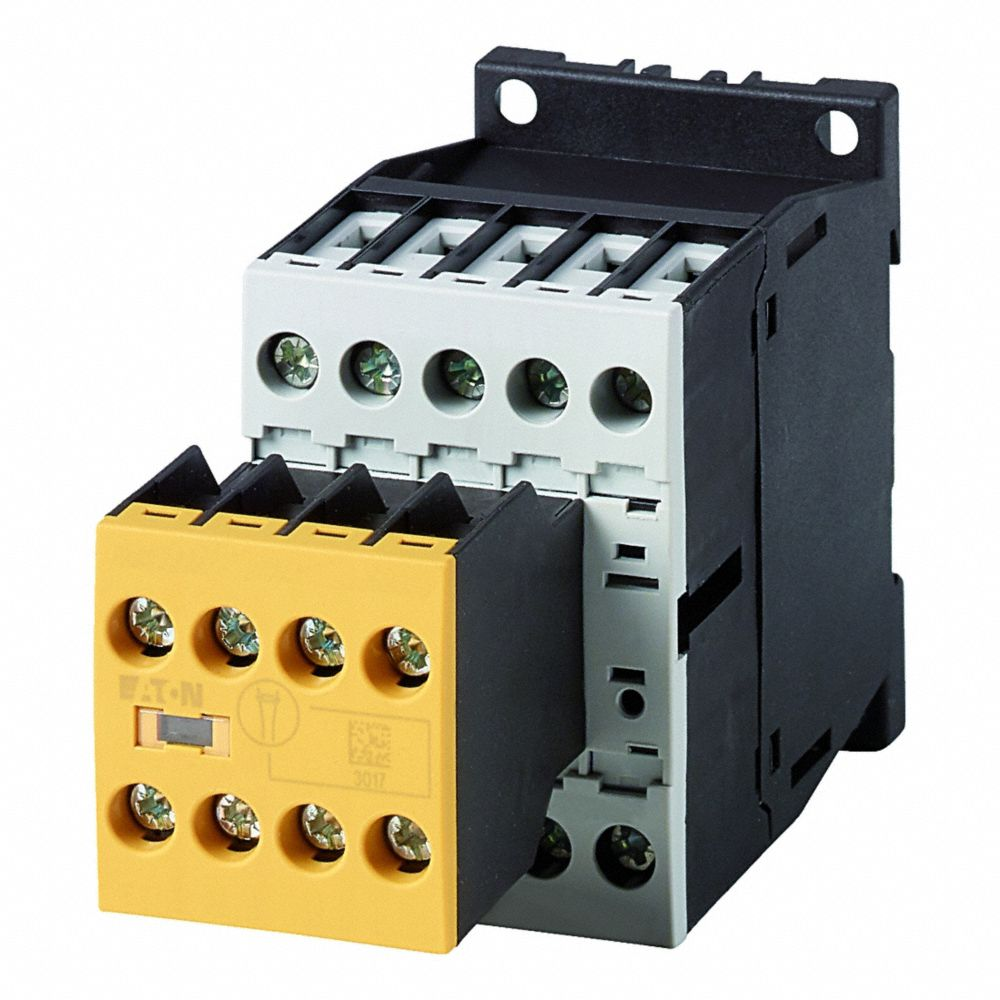

XTSE012BE23A | 110-120V AC | Be | 1.9" | 12A | 3.1" | 12A | 110-120V AC | 2NO/3NC | €671.34 | |
 |

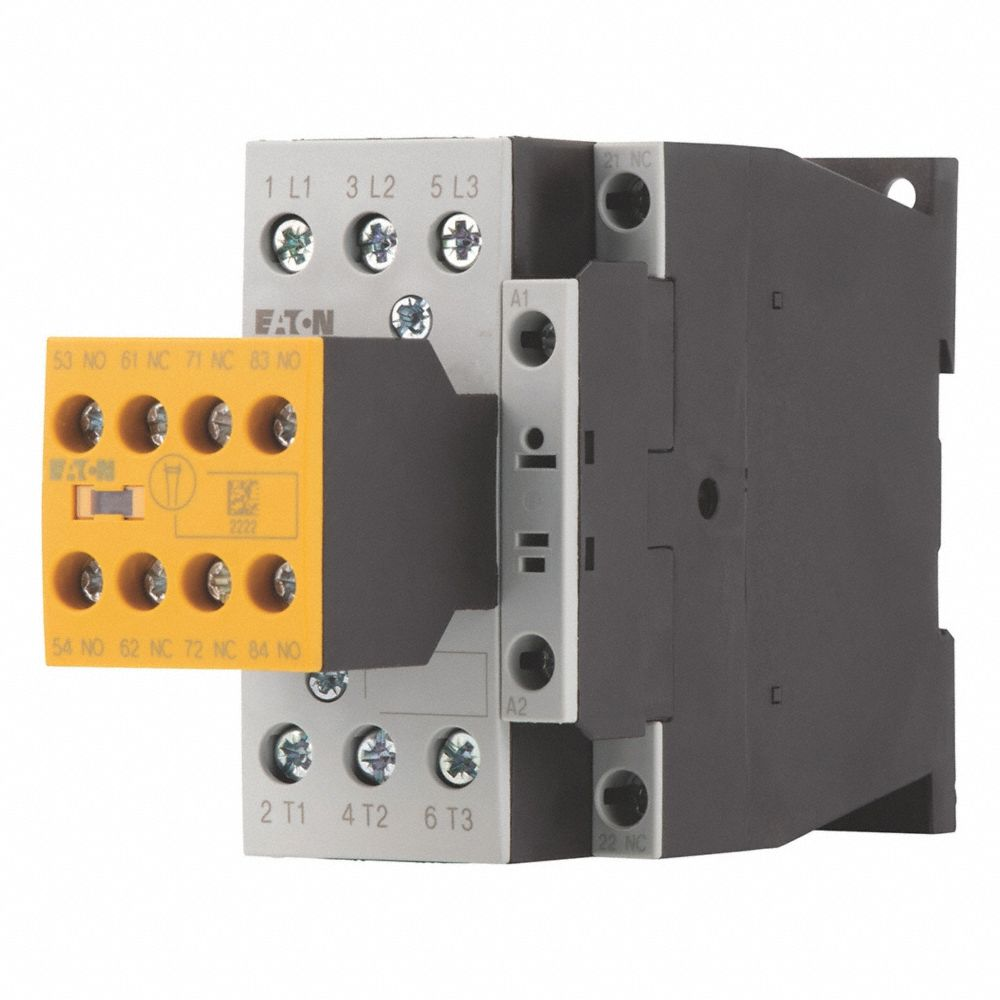

XTSE025C23A | 110-120V AC | A | 1.9" | 25A | 3 3/5" | 25A | 110-120V AC | 2NO/3NC | €823.08 | |
|
XTSE025CE23A | 110-120V AC | CE | 1.9" | 25A | 3 3/5" | 25A | 110-120V AC | 2NO/3NC | €882.29 | |
|
XTSE032CE23A | 110-120V AC | CE | 2" | 32A | 3 1/2" | 32A | 110-120V AC | 2NO/3NC | €1,034.56 | |
 |

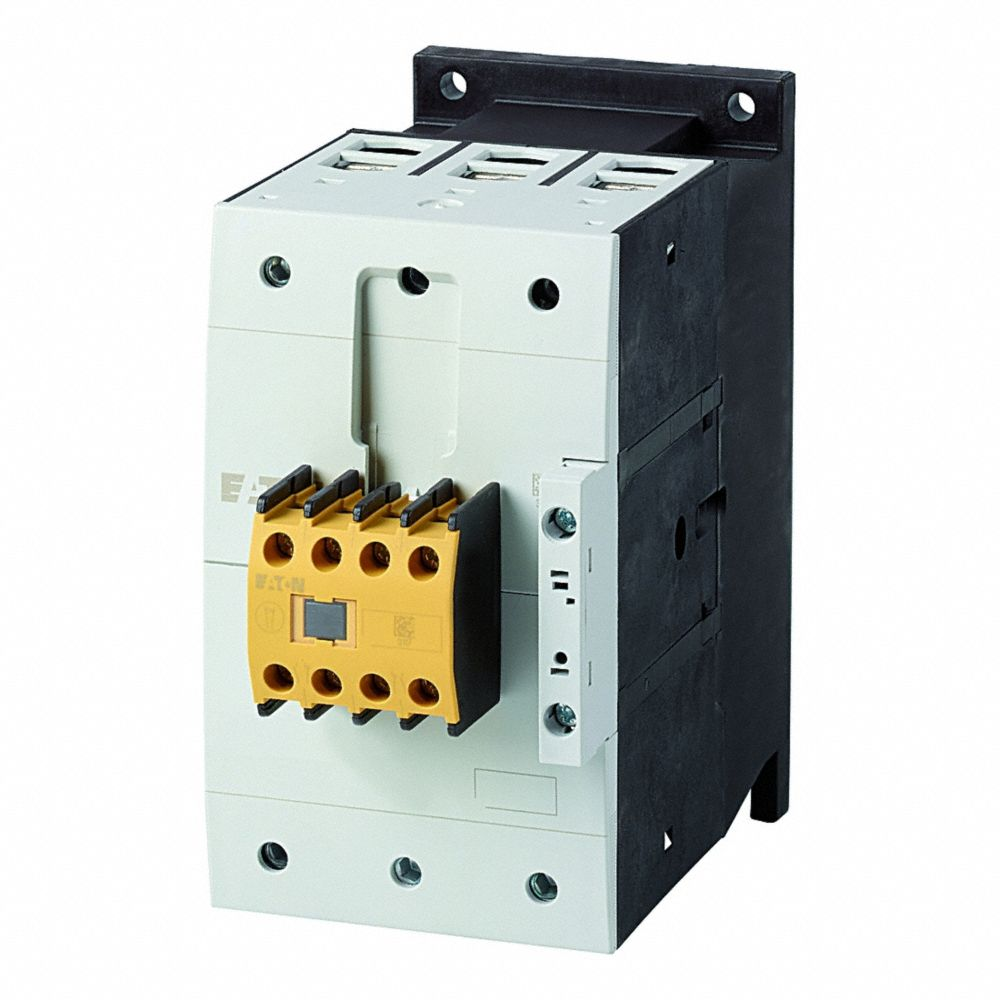

XTSE080F22A | 110-120V AC | F | 4" | 80A | 7" | 80A | 110-120V AC | 2NO/2NC | €1,855.59 | |
|
XTSE095F22A | 110-120V AC | F | 3.9" | 95A | 6.9" | 95A | 110-120V AC | 2NO/2NC | €2,157.17 |
