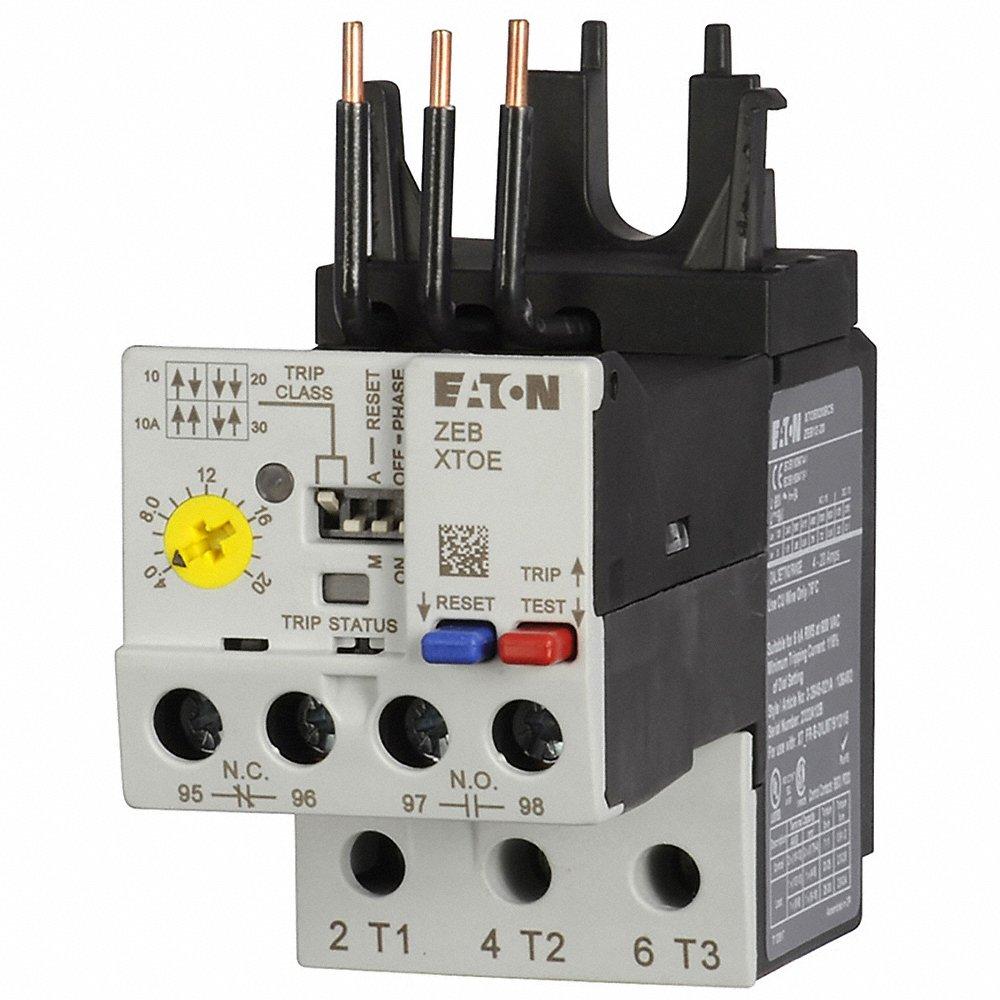

EATON XTOE020CCSS Overload Relay, Electronic Protection, 3 Poles, 4 A, 20 A/1NC, Phase Loss Sensitivity
Item: CJ2NXAModel: XTOE020CCSSCross Ref: 5XHL0
7 In Stock
Ships within 2 days via
5.00% off
€277.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Overload Relay |
| Auxiliary Contacts Included | 1NO/1NC |
| Body Depth | 3 4/5" |
| Body Height | 3.1" |
| Body Width | 1.8" |
| Compatible Contactor Series | XT MINI CONTACTORS Series |
| Compatible Contactors | Frame Size C |
| For Use With | Separate Mounting |
| Frame Size | C |
| Included Thermal Units | Not Applicable |
| Ip Rating | IP20 |
| Kit Required For Retrofit Mtg. | No |
| Max. Overload Relay Amps Setting | 20A |
| Min. Overload Relay Amps Setting | 4A |
| Mounting Method | Separate |
| Mounting Style | Separately Mounted |
| No. Of Poles | 3 |
| Overall Height | 4 8/25" , 6 1/2" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Phase Loss Sensitivity | Yes |
| Product Height | 6 1/2" |
| Product Width | 1 4/5" |
| Relay Mounting Style | Separately Mounted |
| Relay Style | IEC |
| Reset Type | Automatic, Manual |
| Sensing Method | Electronic |
| Separate Mounting | Only |
| Thermal Units Required | Not Applicable To Electronic Type Overload Relays |
| Trip Class | Class 10, Class 20, Class 30 |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 16.51 |
| Ship length (cm) | 10.97 |
| Ship width (cm) | 4.57 |
| HS code | 8536.49 |
| Country of Origin | DO |
Product Variants
| Product | Model | Max. Overload Relay Amps Setting | Body Height | Body Width | Body Depth | Min. Overload Relay Amps Setting | Overload Protection Type | Relay Mounting Style | Frame Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XTOE045DCS | 45A | 4" | 1.8" | 2.2" | 9A | Electronic | Direct To Contactor | D | €354.91 | |
 |
XTOE100GGSS | 100A | 4.13" | 2.2" | 5.47" | 20A | Electronic | Separately Mounted | G | €560.93 | |
|
XTOE020BCS | 20A | 3 1/2" | 1.77" | 2 1/5" | 4A | Electronic | Direct To Contactor | B | €263.07 | |
 |
XTOM001AC1 | 1A | 2.03" | 1.77" | 1.85" | 0.6A | Thermal | Direct To Contactor | A | €182.76 | |
 |
XTOE005BCS | 5A | 3.5" | 1.77" | 2.2" | 1A | Electronic | Direct To Contactor | B | €250.13 | |
|
XTOE020BGS | 20A | 3 1/2" | 1.77" | 2 1/5" | 4A | Electronic | Direct To Contactor | B | €321.54 | |
|
XTOE005CCSS | 5A | 3 1/2" | 2 1/4" | 3 4/5" | 1A | Electronic | - | 45 mm | €292.08 |
