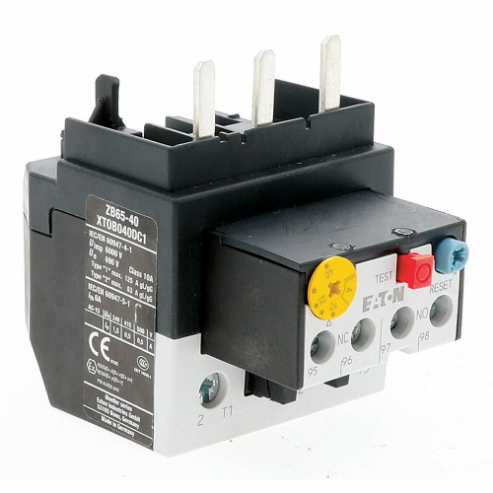

EATON XTOB040DC1 IEC Overload Relay, Thermal Protection, 3 Poles, 24 A, 40 A
Item: CP4AUNModel: XTOB040DC1Cross Ref: 242Y57
7 In Stock
Ships within 2 days via
5.00% off
€403.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Overload Relay |
| Amps | 25-40A |
| Auxiliary Contacts Included | 1NO/1NC |
| Body Depth | 2.45" |
| Body Height | 3.31" |
| Body Width | 2.36" |
| Compatible Contactor Series | XT MINI CONTACTORS Series |
| Compatible Contactors | Frame Size D |
| Frame Size | D |
| Ip Rating | IP20 |
| Max. Overload Relay Amps Setting | 40A |
| Min. Overload Relay Amps Setting | 24A |
| No. Of Poles | 3 |
| Overload Protection Type | Thermal |
| Phase | 3 |
| Phase Loss Sensitivity | No |
| Relay Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Reset Type | Automatic, Manual |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Trip Class | Class 10 |
| Use With | Mfr. Series XTCE Contactors |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 8.41 |
| Ship length (cm) | 6.22 |
| Ship width (cm) | 5.99 |
Product Variants
| Product | Model | Body Height | Body Width | Body Depth | Amps | Trip Class | Reset Type | Use With | Thermal Units Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

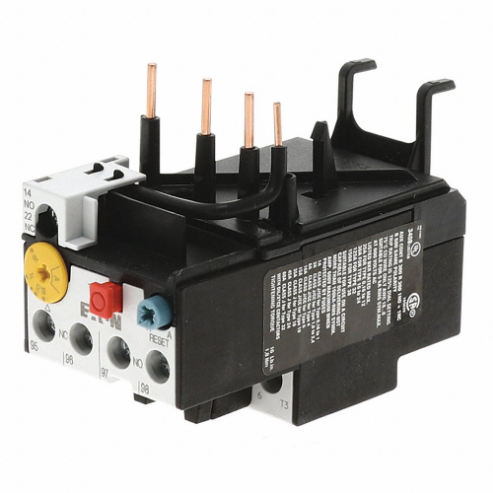

XTOB016CC1 | 3.28" | 1.76" | 1.88" | 10-16A | Class 10 | Automatic, Manual | Mfr. Series XTCE Contactors | None (Relay Includes Integrated Bimetallic Elements) | €182.77 | |
 |

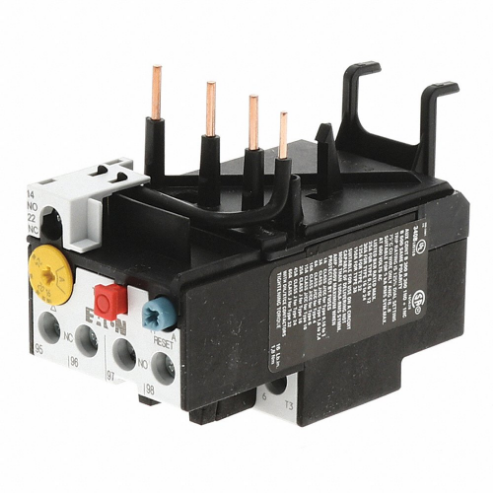

XTOB024CC1 | 3.28" | 1.76" | 1.88" | 16-24A | Class 10 | Automatic, Manual | Mfr. Series XTCE Contactors | None (Relay Includes Integrated Bimetallic Elements) | €182.77 | |
 |

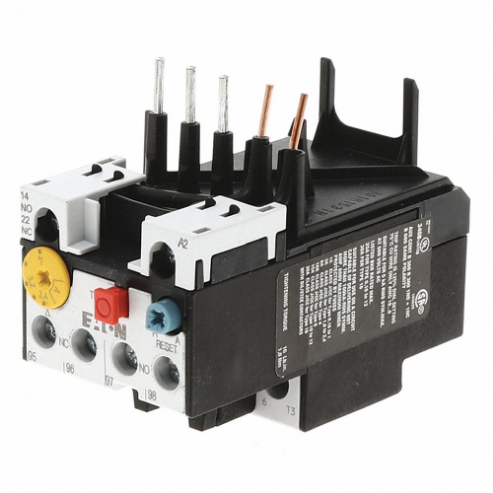

XTOB004BC1 | 3.28" | 1.76" | 1.86" | 2.4-4A | Class 10 | Automatic, Manual | Mfr. Series XTCE Contactors | None (Relay Includes Integrated Bimetallic Elements) | €181.06 | |
 |

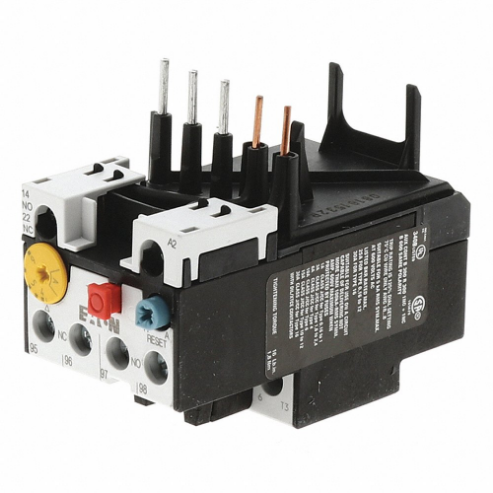

XTOB006BC1 | 3.28" | 1.76" | 1.86" | 4-6A | Class 10 | Automatic, Manual | Mfr. Series XTCE Contactors | None (Relay Includes Integrated Bimetallic Elements) | €159.64 | |
 |
XTOB010BC1 | 3 7/25" | 1 19/25" | 1.86" | 6-9A | Class 10 | Automatic, Manual | Mfr. Series XTCE Contactors | None (Relay Includes Integrated Bimetallic Elements) | €164.05 | |
 |

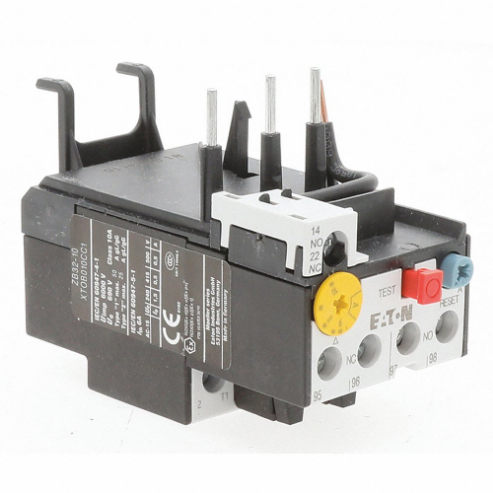

XTOB010CC1 | 3.28" | 1.76" | 1.88" | 6-9A | Class 10 | Automatic, Manual | Mfr. Series XTCE Contactors | None (Relay Includes Integrated Bimetallic Elements) | €164.05 |
