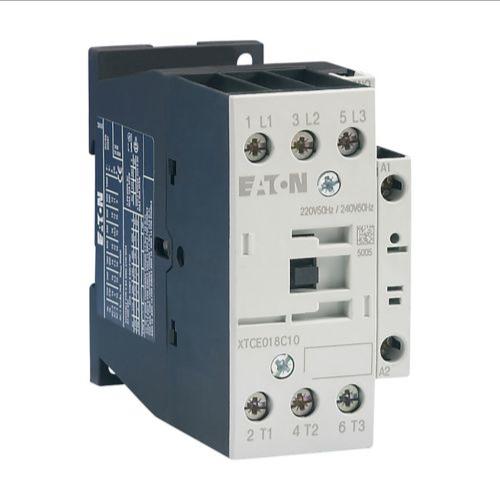

EATON XTCE025C10A IEC Magnetic Contactor, Non-Reversing, 3 Poles, 25 A, 120 VAC Coil, 1NO, C Frame Size
Item: BH8XLBModel: XTCE025C10ACross Ref: 4TYY2
7 In Stock
Ships within 2 days via
10.00% off
€377.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Amps Rating | 25A |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 110-120V AC |
| Contact Configuration | 1 NO |
| Contactor Style | IEC |
| Continuous Amps Rating | 25A |
| Electrical Operating Durability | 300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie) |
| Frequency | 50/60 Hz |
| Frequency Rating | 50-60 Hz |
| Full Load Current - Inductive | 25A |
| Full Load Current - Resistive | 45A |
| Height | 2" |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 240v Ac | 10 hp |
| Horsepower @ Three Phase - 480v Ac | 15 hp |
| Horsepower @ Three Phase - 600v Ac | 20 hp |
| Hp @ Three Phase - 208v Ac | 7 1/2 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Length | 4" |
| Main Power Pole Contact Form | 3NO |
| Max. Hp Rating | 2, 3, 5/ 7 1/2, 10, 15, 20 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | XT IEC Series |
| Minimum Operating Temperature | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Number Of Poles | 3 |
| Operation | Non-Reversing |
| Overall Depth | 4" |
| Overall Height | 2" |
| Overall Width | 3 1/2" |
| Product Name | Eaton XT IEC contactor |
| Reversing Capability | Non-reversing |
| Series | Xt Series Series |
| Terminals | Screw Terminals |
| Type | Full Voltage Non-reversing Contactor |
| Width | 3 1/2" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 8.89 |
| Country of Origin | RO |
Product Variants
| Model | Number Of Poles | Frame Size | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Height | Includes Auxiliary Contacts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XTCE007B01A | 3 | B | Non-reversing | 3NO | 1NC | 120V AC | 2" | Yes | €250.30 | |
| XTCE007B01C | 3 | B | Non-reversing | 3NO | 1NC | 480V AC | 3 1/2" | Yes | €239.42 | |
| XTCE007B01E | 3 | B | Non-reversing | 3NO | 1NC | 208V AC | 3" | Yes | €239.42 | |
| XTCE007B01B | 3 | B | Non-reversing | 3NO | 1NC | 240V AC | 3.07" | Yes | €250.30 | |
| XTCE007B01T | 3 | B | Non-reversing | 3NO | 1NC | 24V AC | 1 1/2" | Yes | €250.30 | |
| XTCE007B01TD | 3 | B | Non-reversing | 3NO | 1NC | 24V DC | 3" | Yes | €334.78 | |
| XTCE007B10A | 3 | B | Non-reversing | 3NO | 1NO | 120V AC | 2.67" | Yes | €238.92 |
