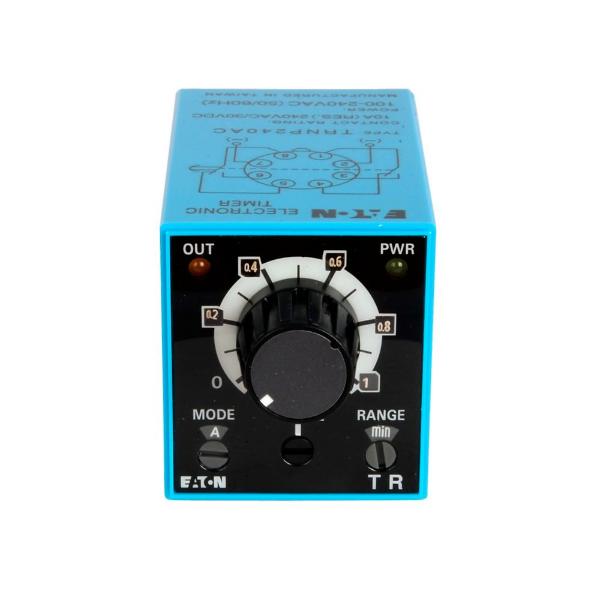

EATON TRNP240AC Multi-Function Time Delay Relay, Panel Door Mounted, 100 to 240VAC, 10 A, 8 Pins/Terminals
Item: BH7THNModel: TRNP240ACCross Ref: 20XG05
7 In Stock
Ships within 2 days via
10.00% off
€437.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Adjustment Method | Rotary Knob |
| Body Depth | 1.58" |
| Body Height | 3.07" |
| Body Width | 1.42" |
| Contact Configuration | 2 Form C, DPDT |
| Contact Form | DPDT |
| Contact Material | Silver Alloy |
| Contact Rating (ac) | 10A @ 240V |
| Contact Rating (dc) | 10A @ 30V |
| Current Rating | 10A |
| Delay Function | Flasher Pause Or On First, On Delay, Power Triggered, Single Shot Leading Edge Voltage Controlled |
| Electrical Connection Type | Pin |
| Environmental Protection | Enclosed |
| Frequency | 50-60 Hz |
| Function | Power Triggered On Delay Flasher-Pause Or On First Single Shot Leading Edge Voltage Controlled |
| Height | 1.58" |
| Ip Rating | IP20 |
| Length | 3.07" |
| Maximum Time Setting | 600 hrs. |
| Mfr. Series | TR Series |
| Minimum Time Setting | 0.1 sec. |
| Number Of Delay Functions | 4 |
| Number Of Pins/terminals | 8 |
| Operating Mode | Power Triggered |
| Output | Delayed |
| Power Consumption | 6.5 VA |
| Prod Load Amps | 10A |
| Prod Load Voltage | 240V AC/30V DC |
| Relay Mounting Style | Panel Door |
| Socket Code | A |
| Terminals | Pin, Octal |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 1.42" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.01 |
| Ship length (cm) | 7.8 |
| Ship width (cm) | 3.61 |
| Country of Origin | US |
Product Variants
| Product | Model | Input Voltage | Relay Mounting Style | Number Of Delay Functions | Electrical Connection Type | Contact Form | Number Of Pins | Height | Contact Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMR5P0512 | 12V AC/DC | - | - | - | - | 11 | - | - | €417.48 | RFQ
|
 |
TMR6X00120 | 120V AC/DC | - | - | - | - | 8 | 2 2/5" | - | €577.67 | |
|
TMR6X0024 | 24V AC/DC | - | - | - | - | 8 | 2 2/5" | - | €603.91 | |
|
TMR6X00240 | 240V AC/DC | - | - | - | - | 8 | 2 2/5" | - | €577.67 | |
 |
TMRP5101 | 12-240V AC/DC | - | - | - | - | 8 | 1 22/25" | 90% Silver 10% Nickel | €802.46 | |
 |
TMRD1UN | - | - | - | - | - | - | - | - | €161.17 | |
|
TMRP5100 | 12-240V AC/DC | - | - | - | - | 11 | 1 22/25" | 10% Nickel 90% Silver | €575.68 |
