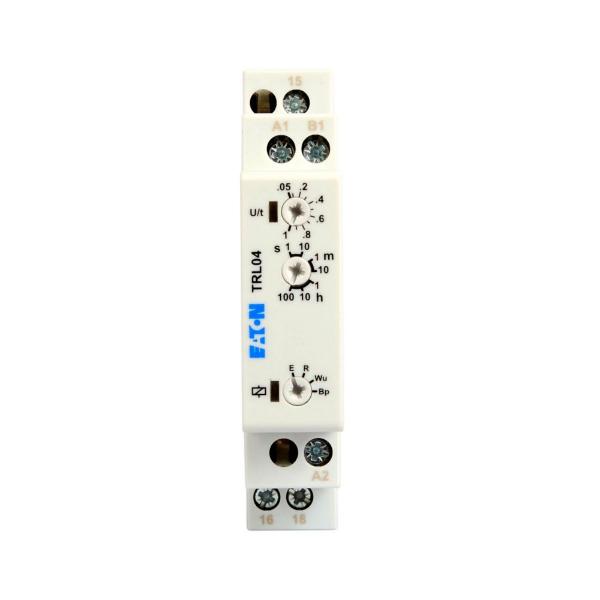

EATON TRL04 Multi-Function Time Delay Relay, DIN-Rail Mounted, 24 to 240 VAC/DC, 8 A, 8 Pins/Terminals
Item: BH7TGUModel: TRL04Cross Ref: 20XF98
7 In Stock
Ships within 2 days via
10.00% off
€135.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Adjustment Method | Rotary Dip Switch |
| Body Depth | 2.36" |
| Body Height | 3.43" |
| Body Width | 0.69" |
| Coil Voltage | 24-240V AC/DC |
| Contact Configuration | SPDT |
| Contact Form | SPDT |
| Contact Material | Silver Alloy |
| Contact Rating (ac) | 8A @ 250V |
| Current Rating | 8A |
| Delay Function | Flasher Pause First, On/Off Delay, Power Triggered, Single Shot Leading Edge Voltage Controlled |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 200000 |
| Enclosure Material | Plastic |
| Environmental Protection | Enclosed |
| Frequency | 50-60 Hz |
| Function | On/Off Delay Power Triggered Single Shot Leading Edge Voltage Controlled Flasher Pause First |
| Height | 3.43" |
| Input Voltage | 24-240V AC/DC |
| Ip Rating | IP40 |
| Length | 1.3" |
| Maximum Operating Temperature | 131°F |
| Maximum Time Setting | 100 hrs. |
| Mechanical Operating Durability | 20000000 |
| Mfr. Series | TR Series |
| Minimum Operating Temperature | -13°F |
| Minimum Time Setting | 0.05 sec. |
| Mounting Type | Compact Din Rail |
| Number Of Delay Functions | 4 |
| Number Of Pins/terminals | 8 |
| Operating Time Accuracy | Less Than 0.5% +/-5 Ms |
| Power Consumption | 1.5 W/4 VA |
| Relay Mounting Style | Din-Rail |
| Time Delay | 0.05 sec. to 100 hrs. |
| Warranty | 1 Year Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 1 4/5" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 8.71 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 4.57 |
| Country of Origin | US |
Product Variants
| Product | Model | Input Voltage | Relay Mounting Style | Number Of Delay Functions | Electrical Connection Type | Contact Form | Number Of Pins | Height | Contact Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMR5P0512 | 12V AC/DC | - | - | - | - | 11 | - | - | €417.48 | RFQ
|
 |
TMR6X00120 | 120V AC/DC | - | - | - | - | 8 | 2 2/5" | - | €577.67 | |
|
TMR6X0024 | 24V AC/DC | - | - | - | - | 8 | 2 2/5" | - | €603.91 | |
|
TMR6X00240 | 240V AC/DC | - | - | - | - | 8 | 2 2/5" | - | €577.67 | |
 |
TMRP5101 | 12-240V AC/DC | - | - | - | - | 8 | 1 22/25" | 90% Silver 10% Nickel | €802.46 | |
 |
TMRD1UN | - | - | - | - | - | - | - | - | €161.17 | |
|
TMRP5100 | 12-240V AC/DC | - | - | - | - | 11 | 1 22/25" | 10% Nickel 90% Silver | €575.68 |
