EATON RT12M12F10CUES Marine Duty Ventilated Transformer, 120 VAC Primary, 10 KVA Power Rating, 60 Hz, 1 Phase
Get it by Tuesday, Aug 18
€13,689.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transformer |
| Coil Material | Copper |
| Frame | 815 |
| Frequency | 60 Hz |
| Height | 30 1/4" |
| Length | 15.82" |
| Nema Enclosure Rating | NEMA 2 |
| Primary Voltage | 120V |
| Secondary Voltage | 120V |
| Tap Size | 2 at +2.5% FCAN, 4 at -2.5% FCBN |
| Type | Marine Duty Transformer |
| Va | 10 kVA |
| Weather Shield | WS15 |
| Width | 16.87" |
Shipping Info:
| Ship weight (kg) | 89.1 |
| Ship height (cm) | 76.84 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 42.85 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Secondary Voltage | Primary Voltage | Frame | Weather Shield | Va | Wiring Connection | Kvar Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

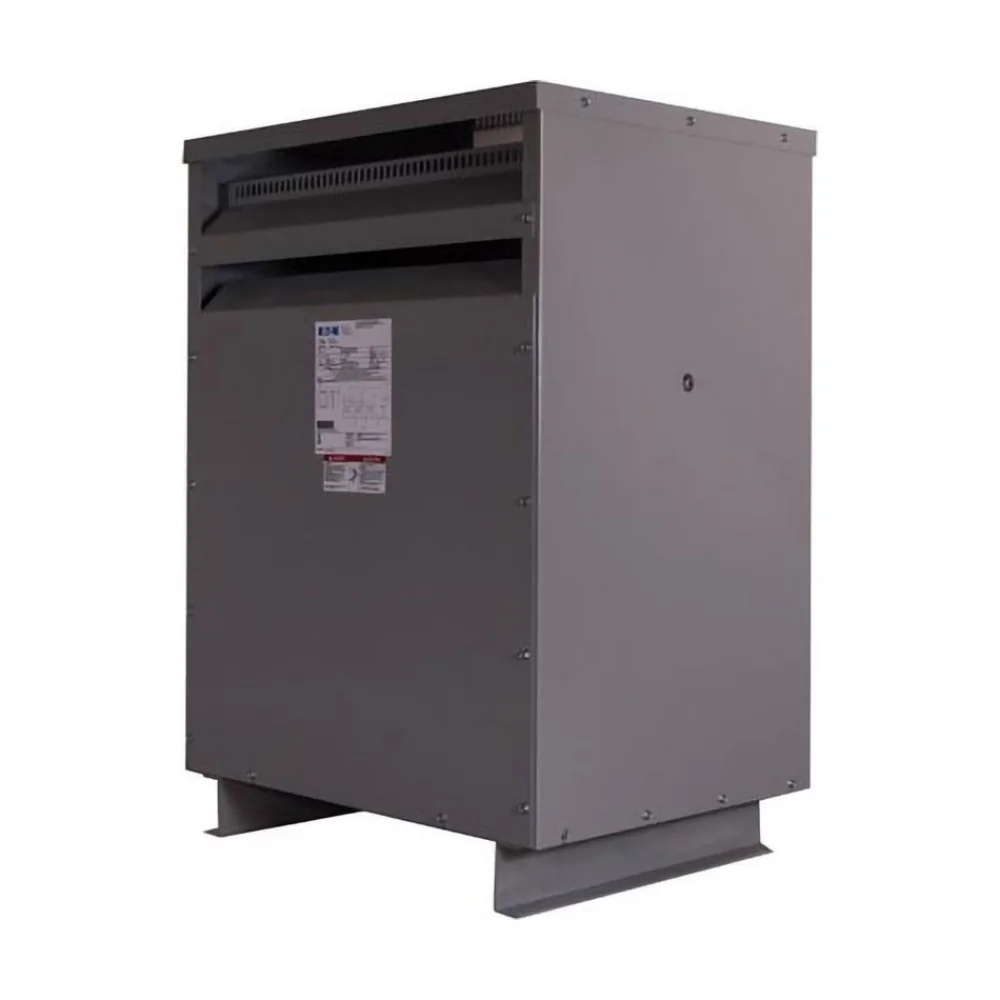

MV48M12F15CU | 29.99" | 120V | 480V | 912D | WS38 | - | 281B15M | 15 kVA | €11,033.04 | |
 |
MV45G28F09CU | 30" | 208Y/120V | 450V | 912B | WS38 | 9 kVA | - | - | €12,974.03 | |
|
MV48G26F09CU | 30" | 110/220V | 480V | 912D | WS38 | 9 kVA | 316C09M | - | €12,974.03 | |
|
MV48M28F09CU | 30" | 208Y/120V | 480V | 912B | WS38 | 9 kVA | - | - | €11,096.89 | |
 |
MV48M28F22CU | 56.17" | 208Y/120V | 480V | 917 | - | 225 kVA | - | - | €69,818.46 | |
 |
MV48M28T22CU | 56.17" | 208Y/120V | 480V | 917 | WS34 | - | - | 225 kVA | €46,443.47 |
