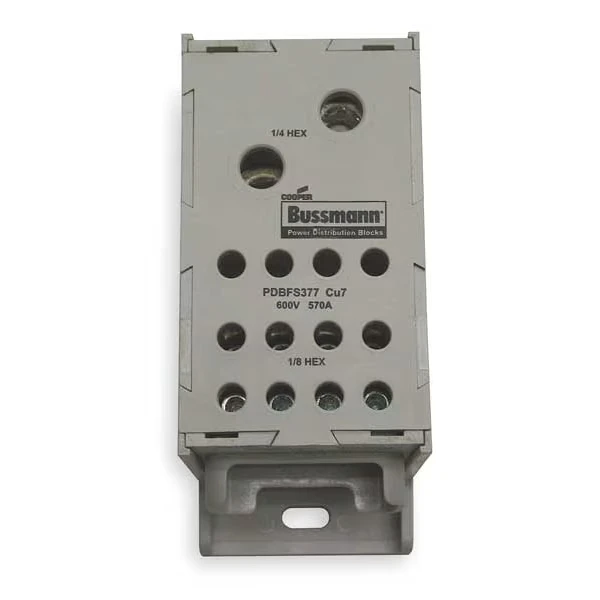

EATON PDBFS377 Pwr Dist Block, 570A, 1P, 4AWG-300 MCM, 600V
Request a Quote
Payment
Delivery
Product Specifications:
| Depth | 2.93" |
| Features | Ip-20 Finger-Safe |
| For Conductor Material | Aluminum, Copper |
| For Line Copper Wire Size-max. | 300 kcmil |
| For Load Aluminum Wire Size-max. | 4 AWG |
| For Max. Line Wire Size | 300 kcmil |
| For Max. Load Wire Size | 4 AWG |
| Length | 4.67" |
| Line Connections/pole | 2 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 12 |
| Load Side Connection Type | Lug |
| Max. Amps | 570A |
| Max. Amps-copper Conductor | 570A |
| Min. For Line Aluminum Wire Size | 4 AWG |
| Min. For Line Copper Wire Size | 4 AWG |
| Min. For Load Aluminum Wire Size | 12 AWG |
| Min. For Load Copper Wire Size | 14 AWG |
| Mounting | DIN Rail, Panel |
| No. Of Circuits | 1 |
| Overall Depth | 2.94" |
| Overall Length | 4 3/5" |
| Overall Width | 1.86" |
| Primary Connections/pole | 2 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 12 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 1 22/25" |
Shipping Info:
| Ship length (cm) | 11.86 |
| Ship width (cm) | 4.78 |
