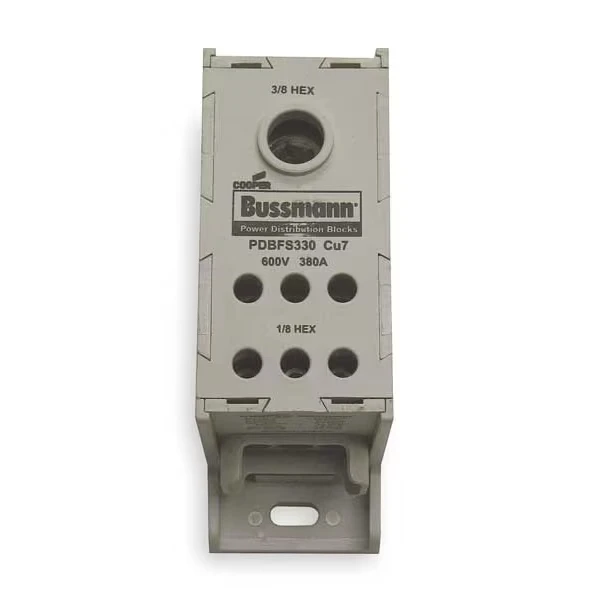

EATON PDBFS330 Pwr Dist Block, 380A, 1P, 6P Secondary, 600V
Request a Quote
Payment
Delivery
Product Specifications:
| Depth | 2.95" |
| Features | Ip-20 Finger-Safe |
| For Conductor Material | Aluminum, Copper |
| For Line Copper Wire Size-max. | 500 kcmil |
| For Load Aluminum Wire Size-max. | 2 AWG |
| For Max. Line Wire Size | 500 kcmil |
| For Max. Load Wire Size | 2 AWG |
| Length | 4.67" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 6 |
| Load Side Connection Type | Lug |
| Max. Amps | 380A |
| Max. Amps-copper Conductor | 380A |
| Min. For Line Aluminum Wire Size | 6 AWG |
| Min. For Line Copper Wire Size | 6 AWG |
| Min. For Load Aluminum Wire Size | 14 AWG |
| Min. For Load Copper Wire Size | 14 AWG |
| Mounting | Panel |
| No. Of Circuits | 1 |
| Overall Depth | 2.98" |
| Overall Length | 4.63" |
| Overall Width | 1.58" |
| Primary Connections/pole | 1 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 6 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 1.55" |
Shipping Info:
| Ship length (cm) | 11.86 |
| Ship width (cm) | 3.94 |
