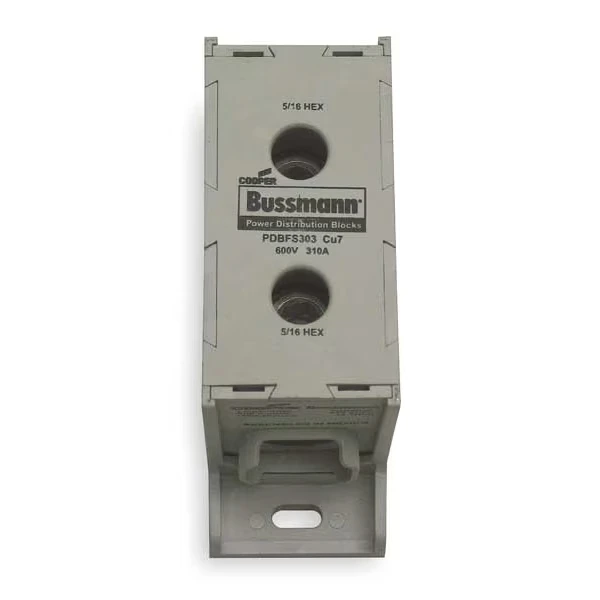

EATON PDBFS303 Pwr Dist Block, 310A, 1P, 6AWG-350 MCM, 600V
Request a Quote
Payment
Delivery
Product Specifications:
| Depth | 2.87" |
| Features | Ip-20 Finger-Safe |
| For Conductor Material | Aluminum, Copper |
| For Line Copper Wire Size-max. | 350 kcmil |
| For Load Aluminum Wire Size-max. | 350 kcmil |
| For Max. Line Wire Size | 350 kcmil |
| For Max. Load Wire Size | 6 AWG |
| Length | 4.67" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 1 |
| Load Side Connection Type | Lug |
| Max. Amps | 310A |
| Max. Amps-copper Conductor | 310A |
| Min. For Line Aluminum Wire Size | 6 AWG |
| Min. For Line Copper Wire Size | 6 AWG |
| Min. For Load Aluminum Wire Size | 6 AWG |
| Min. For Load Copper Wire Size | 6 AWG |
| Mounting | DIN Rail, Panel |
| No. Of Circuits | 1 |
| Overall Depth | 1" |
| Overall Length | 5" |
| Overall Width | 1/2" |
| Primary Connections/pole | 1 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 1 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 1.55" |
Shipping Info:
| Ship length (cm) | 11.86 |
| Ship width (cm) | 3.94 |
