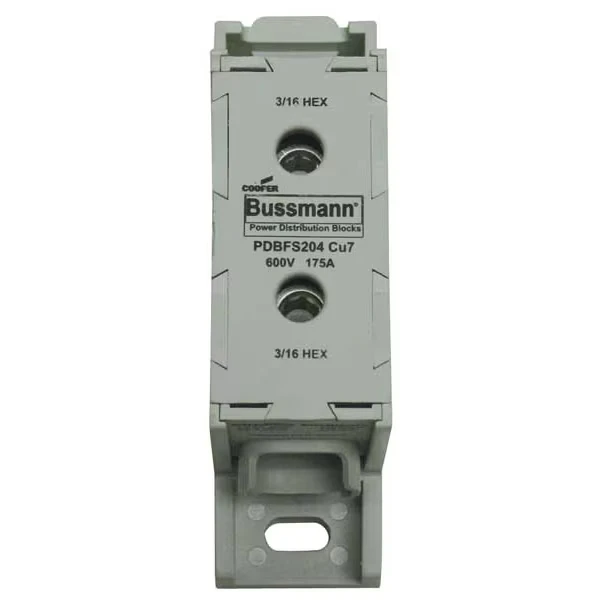

EATON PDBFS204 Pwr Dist Block, 175A, 1P, 1P Primary, 600VAC
Request a Quote
Payment
Delivery
Product Specifications:
| Depth | 2.15" |
| Features | Ip-20 Finger-Safe |
| For Conductor Material | Aluminum, Copper |
| Length | 3.37" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 1 |
| Load Side Connection Type | Lug |
| Max. Amps | 175A |
| Max. Amps-copper Conductor | 175A |
| Min. For Line Aluminum Wire Size | 8 AWG |
| Min. For Line Copper Wire Size | 14 AWG |
| Min. For Load Aluminum Wire Size | 8 AWG |
| Min. For Load Copper Wire Size | 14 AWG |
| Mounting | DIN Rail, Panel |
| No. Of Circuits | 1 |
| Overall Depth | 3.7" |
| Overall Length | 2.15" |
| Overall Width | 0.99" |
| Primary Connections/pole | 1 |
| Rohs Compliant | Yes |
| Secondary Connection/pole | 1 |
| Terminal Material | Aluminum |
| Ul 94 Flammability Rating | V-0 |
| Width | 1.03" |
Shipping Info:
| Ship length (cm) | 8.56 |
| Ship width (cm) | 2.62 |
