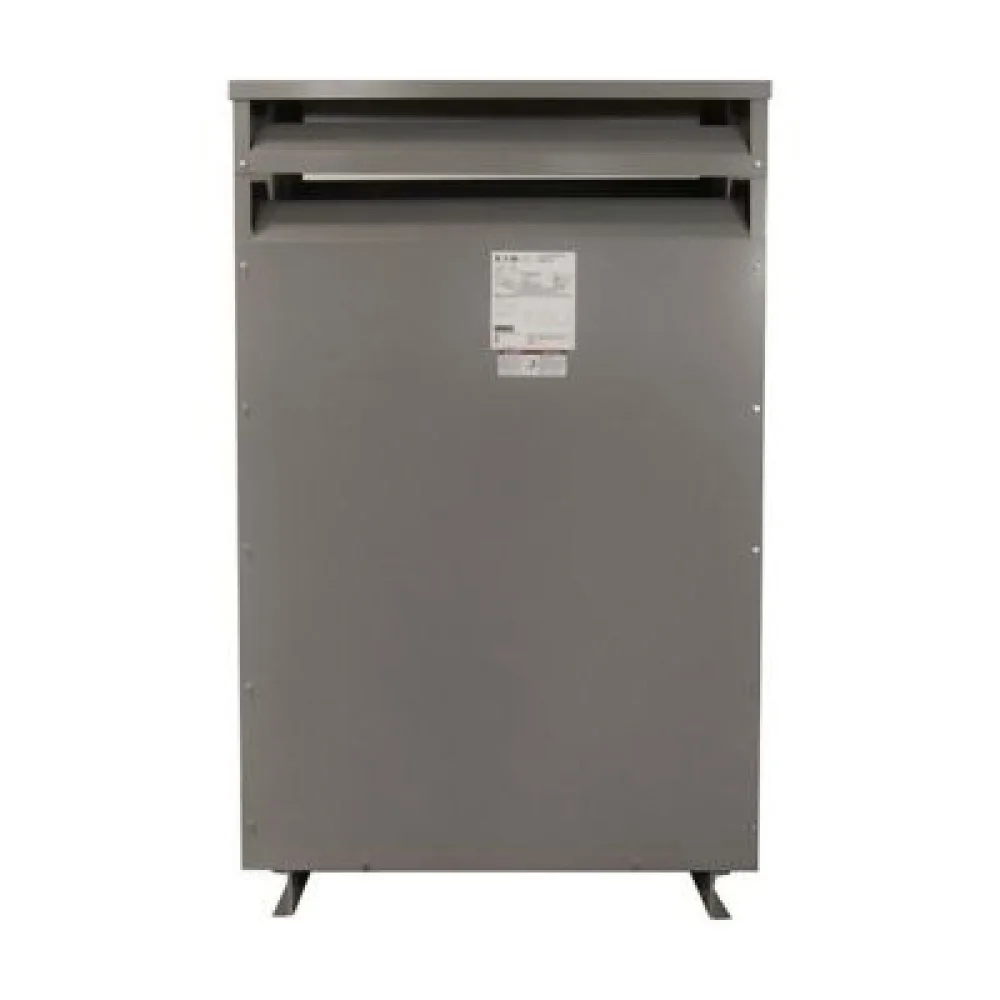

EATON N43M51T22X Non Linear Transformer, 3-Phase, PV 416V, SV 416Y/240V, 225 KVA, Aluminum Coil, Frame 919
Get it by Friday, Apr 17
€26,573.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transformer |
| Coil Material | Aluminum |
| Design | K-13 |
| Frame | 919 |
| Frequency Rating | 50-60 Hz |
| Height | 75" |
| Kva Rating | 225 kVA |
| Length | 36.23" |
| Phase | 3 |
| Primary Voltage | 416V |
| Secondary Voltage | 416Y/240V |
| Special Features | Electrostatically Shielded |
| Tap Size | 2 At +2.5% FCAN, 4 At -2.5% FCBN |
| Temp. Rise | 150°C |
| Type | Ventilated Transformer |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Weathershield | WS35 |
| Width | 44 1/5" |
Shipping Info:
| Ship weight (kg) | 1080 |
| Ship height (cm) | 190.5 |
| Ship length (cm) | 92.02 |
| Ship width (cm) | 112.27 |
Product Variants
| Model | Material | Height | Primary Voltage | Secondary Voltage | Price | |
|---|---|---|---|---|---|---|
| HT10P11S1516 | - | 31.3" | 120/240V | 120/240V | €3,510.94 | |
| HT20P11B2516CU | - | 37.59" | 240/480V | 120/240V | €7,342.59 | |
| HT20P11B1516 | - | 31.3" | 240/480V | 120/240V | €3,916.30 | |
| HT20P11B7516 | - | 62 22/25" | 240/480V | 120/240V | €10,316.00 | |
| HT20P11B7516CU | - | 62 22/25" | 240/480V | 120/240V | €16,014.12 | |
| HT20P11F05 | - | 30 1/4" | 240/480V | 120/240V | €4,475.28 | |
| HT20P11F5016CU | - | 42.03" | 240/480V | 120/240V | €10,364.27 |
