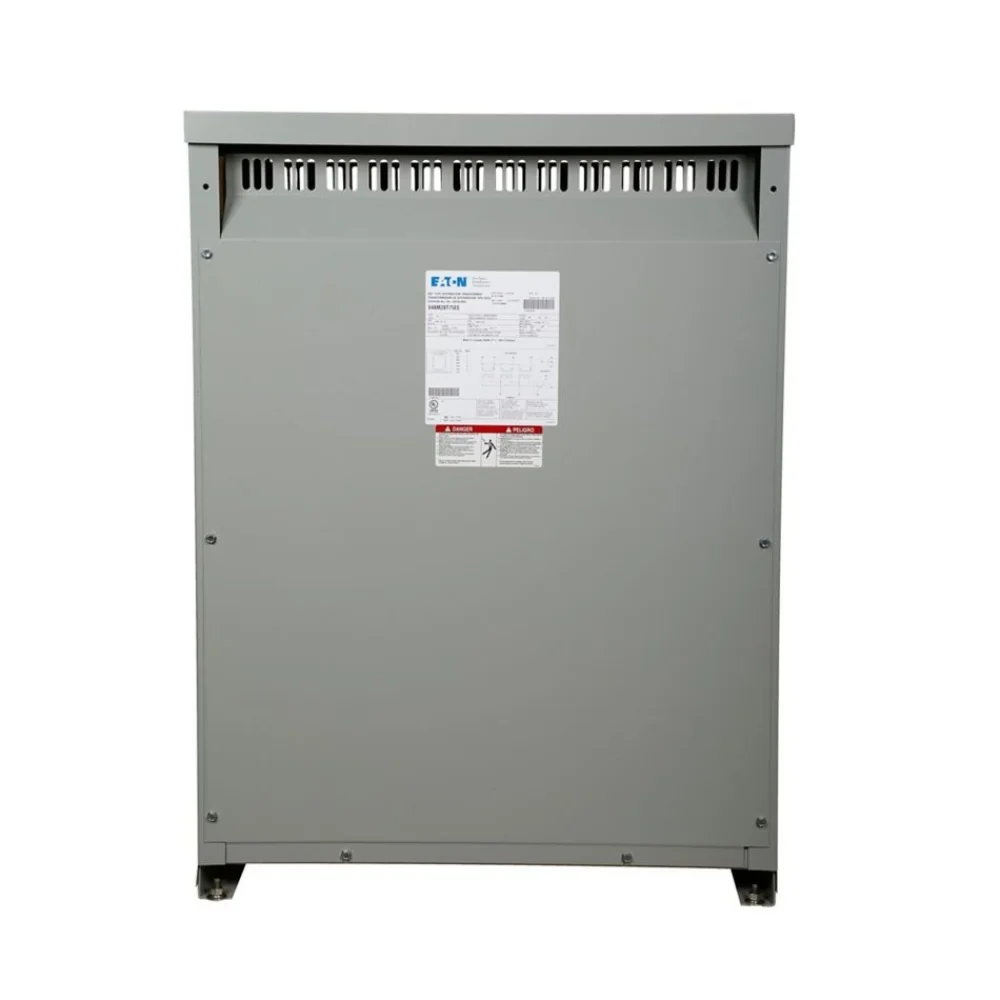

EATON N29G28T09XAFCUSR Nonlinear Ventilated Xfmr, Kt-13, Three-Phase, Primary Voltage 208V, Taps 2 At -5% Fcbn | BH4ZRC

EATON N29G28T09XAFCUSR Nonlinear Ventilated Transformer, Primary 208V, Secondary 208Y/120V, 9 KVA, 50/60 Hz

Item: BH4ZRCModel: N29G28T09XAFCUSR
Check Availability
In Stock

Get it by Tuesday, Sep 1

€15,393.91 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Transformer
Coil Material Copper
Design KT-13
Frame 912B
Frequency 50-60 Hz
Height 30"
Kva Rating 9 kVA
Length 16 1/2"
Nema Enclosure Rating NEMA 2
Notes Certified Test Report Of NEMA ST-20 Sound Level (On CMI Style), Fungus Proof
Phase 3
Primary Voltage 208V
Secondary Voltage 208Y/120V
Tap Size 2 At -5% FCBN
Temp. Rise 150°C
Type Nonlinear Ventilated Transformer
Weather Shield WS38
Width 23"
Wiring Connection 610A

Shipping Info:

Ship weight (kg) 99.45
Ship height (cm)76.2
Ship length (cm)41.91
Ship width (cm)58.42

Product Variants

ProductModelHeightPrimary VoltageCoil MaterialSecondary VoltageKva RatingPhaseTemp. RiseFramePrice
EATON HT10P11S1516 K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 120 X 240V | BH3MCP HT10P11S151631.3"120/240VAluminum120/240V15 kVA1150°C816€3,510.94
EATON HT20P11B2516CU K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCQ HT20P11B2516CU37.59"240/480VCopper120/240V25 kVA180°C818€7,342.59
EATON HT20P11B1516 K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCR HT20P11B151631.3"240/480VAluminum120/240V15 kVA180°C816€3,916.30
EATON HT20P11B7516 K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCU HT20P11B751662 22/25"240/480VAluminum120/240V75 kVA180°C821€10,316.00
EATON HT20P11B7516CU K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCV HT20P11B7516CU62 22/25"240/480VCopper120/240V75 kVA180°C821€16,014.12
EATON HT20P11F05 K-Factor Transformer, Ventilated, K-4, Single-Phase, Pv 240 X 480V | BH3MCX HT20P11F0530 1/4"240/480VAluminum120/240V5 kVA1115°C815€4,475.28
EATON HT20P11F5016CU K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCZ HT20P11F5016CU42.03"240/480VCopper120/240V50 kVA1115°C-€10,364.27
