EATON M22M-D-B Push Button Operator, 22 mm Size, Momentary Push, Blue, Flush Button
Item: BH4RVWModel: M22M-D-BCross Ref: 30XD87
7 In Stock
Ships within 2 days via
10.00% off
€23.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Action | Momentary |
| Bezel | Metal |
| Bezel Material | Metal |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Metal |
| Head/lens Color | Blue |
| Height | 4" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 1" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Mode | Flush Momentary |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Depth | 1" |
| Overall Height | 4" |
| Overall Width | 3" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Modular Pushbutton |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Material | Ip Rating | Bezel Material | Type | Legend | Basic Material | Number Of Operators | Terminal Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22M-D-G | Metal | IP67, IP69K | Metal | Modular Pushbutton | - | - | 1 | Screw Clamp | €28.27 | |
 |
M22M-D-G-GB1 | Metal | IP67, IP69K | Metal | Modular Pushbutton | Start | - | 1 | Screw Clamp | €21.26 | |
 |
M22M-DH-B | Metal | IP67, IP69K | Metal | Modular Pushbutton | - | - | 1 | Screw Clamp | €31.67 | |
 |
M22M-DH-G-GB1 | Metal | IP67, IP69K | Metal | - | I | - | 1 | Screw Clamp | €28.27 | |
 |
M22M-DH-G | Metal | IP67, IP69K | Metal | Modular Pushbutton | - | - | 1 | Screw Clamp | €28.88 | |
|
M22M-DH-R | Metal | IP67, IP69K | Metal | Modular Pushbutton | - | - | 1 | Screw Clamp | €29.94 | |
 |

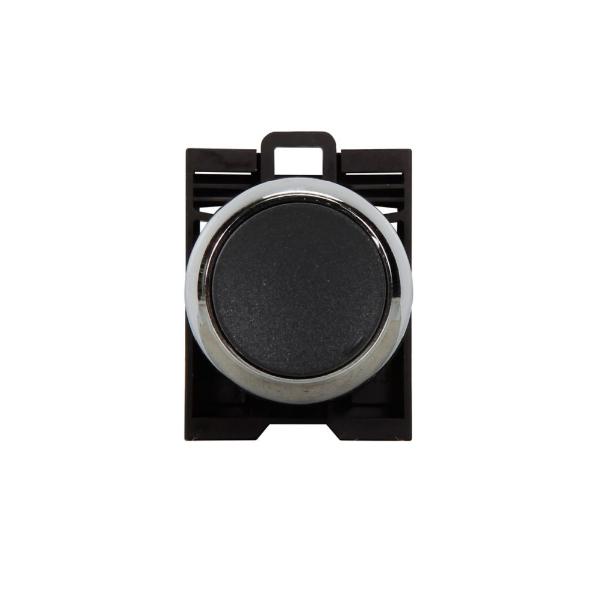

M22M-DH-S | Metal | IP67, IP69K | Metal | Modular Pushbutton | - | - | 1 | Screw Clamp | €30.10 |
