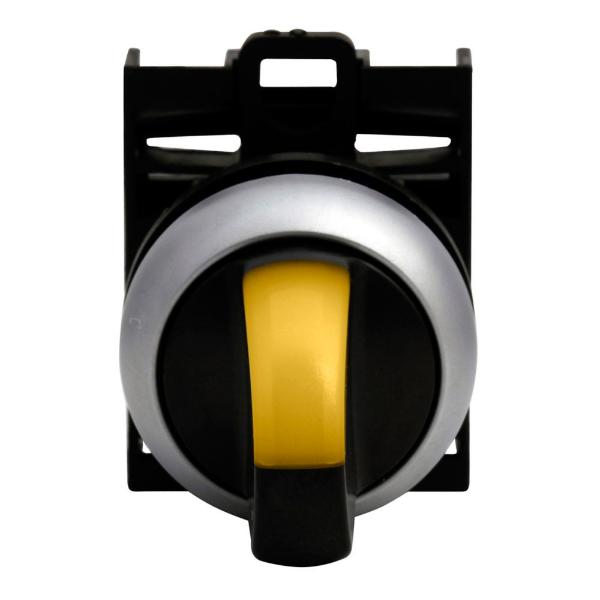

EATON M22-WLK-Y Modular Pushbutton, 22.5 mm, Illuminated, Silver Bezel, Yellow Button, Ip66, Two-Position
Item: BH4UTMModel: M22-WLK-YCross Ref: 60JM56
7 In Stock
Ships within 2 days via
10.00% off
€63.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Action | Maintained/Momentary |
| Actuator Function | Momentary |
| Actuator Type | Knob |
| Bezel Color | Silver |
| Bezel Material | Silver |
| Button Color | Yellow |
| Cam | No Cam Needed |
| Hazardous Location Specification | Not Rated |
| Height | 1.06" |
| Illumination | Illuminated |
| Ip Rating | IP66, IP67, IP69K |
| Length | 1.17" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. Can Be Converted In The Field To Maintained Operation With The Removal Of A Color Coded Adapter. |
| Number Of Positions | 2 |
| Operating Cycles | Light: 100,000, Button: 100,000 |
| Operator Head Material | Polycarbonate |
| Operator Illumination | Non Illuminated |
| Overall Depth | 2.78" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Series | M22 Series |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Color | Black |
| Switch Head Type | Short Lever |
| Type | Selector Switch |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1.17" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 2.97 |
| Ship width (cm) | 2.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Height | Number Of Operators | Head Material | Contact Form | Nema Rating | Size | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-DDLF-WS-ETCH | - | 13/25" | - | - | - | - | - | - | €62.86 | |
 |
M22-DDLF-GR-ETCH | IP66 | 13/25" | - | - | - | - | - | - | €65.57 | |
|
M22-DDL-GR | IP66 | 13/25" | - | - | - | - | - | - | €57.22 | |
 |
M22-DDLF-GR-X1-X0 | IP66 | 13/25" | - | - | - | - | - | - | €74.18 | |
 |
M22-D-B | IP67, IP69K | 1" | 1 | Plastic | - | - | - | - | €22.21 | |
|
M22-DDLF-WS | - | 13/25" | - | - | - | - | - | - | €53.19 | |
|
M22-DDLF-GR | IP66 | 13/25" | - | - | - | - | - | - | €58.91 |
