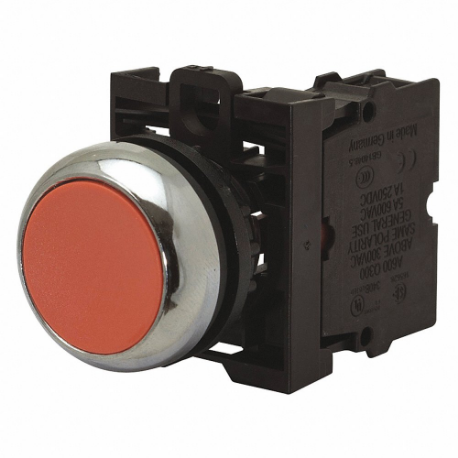

EATON M22-DR-R Modular Non-Illuminated Pushbutton Operator, 22.5 mm, 2 Positions, Red
Item: CP4AUHModel: M22-DR-RCross Ref: 60JN30
7 In Stock
Ships within 2 days via
10.00% off
€25.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Operator |
| Action | Maintained |
| Actuator Color | Black, Green, Red |
| Actuator Function | Maintained |
| Bezel Material | Silver |
| Button Color | Black, Green, Red |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Ip Rating | IP67, IP69K |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Mode | Maintained |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Height | 1 1/4" |
| Product Type | Push Button Operators |
| Product Width | 1 3/4" |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
