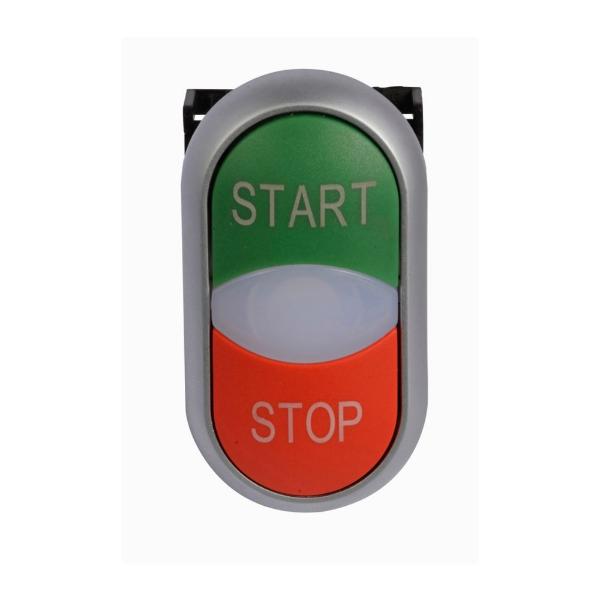

EATON M22-DDL-GR-GB1-GB0 Modular Pushbutton, 22.5 mm, Illuminated, Top Green, Bottom Red, Ip66
Item: BH4RDKModel: M22-DDL-GR-GB1-GB0Cross Ref: 30XE99
7 In Stock
Ships within 2 days via
10.00% off
€72.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Action | Momentary |
| Actuator Function | Momentary |
| Actuator Type | Extended, Dual Buttton |
| Application | Pushbutton |
| Bezel Color | Silver |
| Bezel Material | Silver |
| Button Color | Green, Red |
| Etching Code | GB1, GB2 |
| Features | Includes Contact Block Mounting Adapter |
| Head Material | Metal |
| Head/lens Color | Green, Red |
| Height | 13/25" |
| Illumination | Illuminated |
| Ip Rating | IP67, IP69K |
| Legend | Start, Stop |
| Legend Background Color | Green, Red |
| Legend Color | White |
| Length | 2.15" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 2 |
| Operating Cycles | Light: 100,000, Button: 200,000 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 2.15" |
| Overall Height | 13/25" |
| Overall Width | 1.17" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Material Type | Non Metallic |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | 22.5 mm Modular |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1.17" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 1.32 |
| Ship length (cm) | 5.46 |
| Ship width (cm) | 2.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Height | Number Of Operators | Head Material | Contact Form | Nema Rating | Size | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-DDLF-WS-ETCH | - | 13/25" | - | - | - | - | - | - | €62.86 | |
 |
M22-DDLF-GR-ETCH | IP66 | 13/25" | - | - | - | - | - | - | €65.57 | |
|
M22-DDL-GR | IP66 | 13/25" | - | - | - | - | - | - | €57.22 | |
 |
M22-DDLF-GR-X1-X0 | IP66 | 13/25" | - | - | - | - | - | - | €74.18 | |
 |
M22-D-B | IP67, IP69K | 1" | 1 | Plastic | - | - | - | - | €22.21 | |
|
M22-DDLF-WS | - | 13/25" | - | - | - | - | - | - | €53.19 | |
|
M22-DDLF-GR | IP66 | 13/25" | - | - | - | - | - | - | €58.91 |
