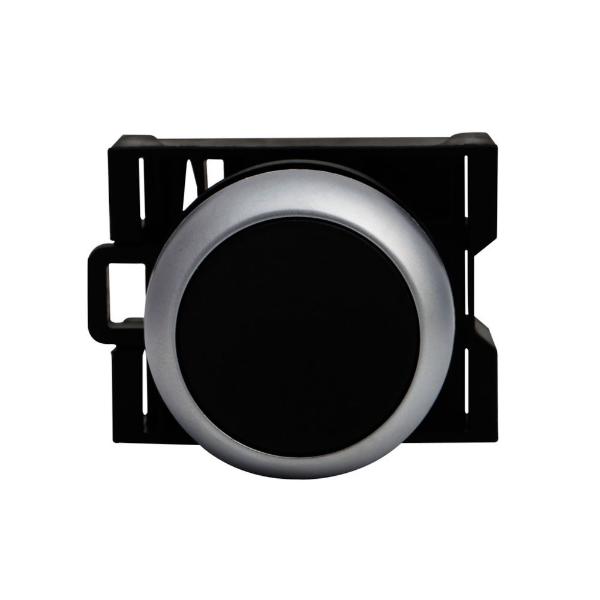

EATON M22-D-S Modular Pushbutton, Non-Illuminated, 22.5 mm, Momentary, Black Actuator, Silver Bezel
Item: BH4RNNModel: M22-D-SCross Ref: 60JN37
7 In Stock
Ships within 2 days via
10.00% off
€19.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Action | Maintained |
| Actuator Color | Black |
| Actuator Function | Momentary |
| Actuator Type | Button, Flush |
| Bezel Color | Silver |
| Bezel Material | Silver |
| Button Color | Black |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Black |
| Height | 1" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 2" |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Cycles | 5 Million |
| Operating Mode | Momentary |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 2" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Height | Number Of Operators | Head Material | Contact Form | Nema Rating | Size | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-DDLF-WS-ETCH | - | 13/25" | - | - | - | - | - | - | €62.86 | |
 |
M22-DDLF-GR-ETCH | IP66 | 13/25" | - | - | - | - | - | - | €65.57 | |
|
M22-DDL-GR | IP66 | 13/25" | - | - | - | - | - | - | €57.22 | |
 |
M22-DDLF-GR-X1-X0 | IP66 | 13/25" | - | - | - | - | - | - | €74.18 | |
 |
M22-D-B | IP67, IP69K | 1" | 1 | Plastic | - | - | - | - | €22.21 | |
|
M22-DDLF-WS | - | 13/25" | - | - | - | - | - | - | €53.19 | |
|
M22-DDLF-GR | IP66 | 13/25" | - | - | - | - | - | - | €58.91 |
