EATON M22-C2-M2V Non-Illuminated Assembled Pushbutton Control Station, 1NC-1NO Contact, 2 Operators
Get it by Friday, Aug 21
€161.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Control Station |
| Actuator | Pushbuttons, top: flush, bottom: extended |
| Actuator Function | Momentary |
| Base | Black |
| Button Color | Green, Red |
| Enclosure Color | Gray |
| Etching Code | GB1, GB0 |
| Height | 2.7" |
| Illumination | Non-Illuminated |
| Inscription | START, STOP |
| Ip Rating | IP66 |
| Length | 4 18/25" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | 25% Smaller Depth Than Most Competitor Enclosures. Imoact Resistant Polycarbonate Enclosure |
| Orientation | Vertical |
| Type | Control Station |
| Width | 3.15" |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 11.99 |
| Ship width (cm) | 8 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Enclosure Color | Nema Enclosure Rating | Ip Rating | Illumination | Contact Configuration | Actuator Function | Orientation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-C1-M12H | 4" | - | NEMA 12 | IP40 | - | 2 NC | - | - | €236.94 | |
 |

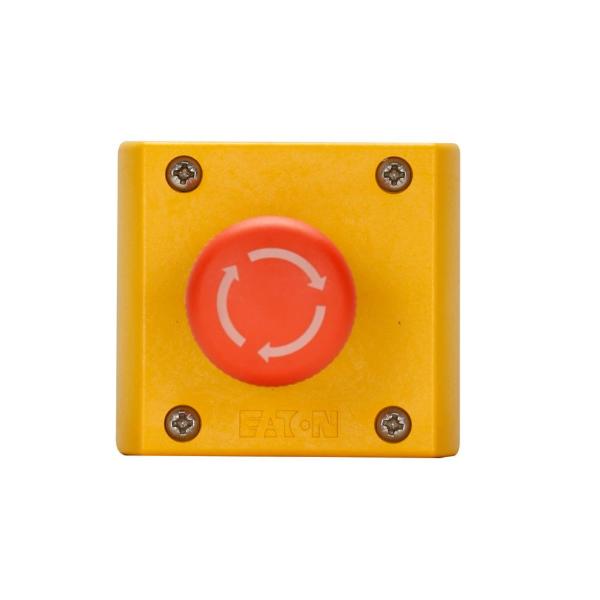

M22-C1-M13H | 2.7" | Yellow | NEMA 13, NEMA 4X | IP66 | Non-Illuminated | 1 NO | Maintained | Horizontal | €265.97 | |
 |
M22-C1-M16H | 2.7" | Gray | NEMA 13, NEMA 4X | IP66 | Non-Illuminated | 1 NC, 1 NO | Momentary | Horizontal | - | RFQ
|
 |
M22-C1-M1H | 2.7" | Yellow | NEMA 13, NEMA 4X | IP66 | Non-Illuminated | 1 NC | Maintained | Horizontal | €161.73 | |
 |
M22-C1-M7H | 2.7" | Gray | NEMA 13, NEMA 4X | - | Non-Illuminated | NC | Momentary | Horizontal | €158.51 | |
 |
M22-C1-M8H | 2.7" | Gray | NEMA 13, NEMA 4X | IP66 | Non-Illuminated | NC | Momentary | Horizontal | €179.74 | |
|
M22-C1-M14H | 2.7" | Yellow | NEMA 13, NEMA 4X | IP66 | Non-Illuminated | 2 NC | Maintained | Horizontal | €256.96 |
