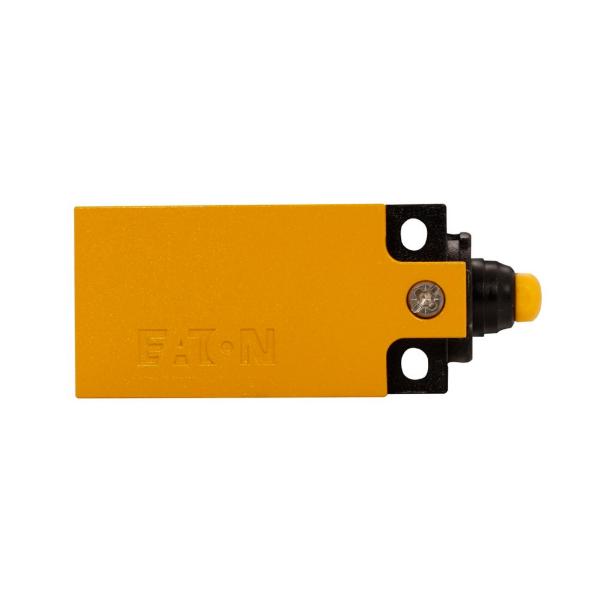

EATON LSM-02 Limit Switch Body, Zinc, 2NC
Item: BH4QEHModel: LSM-02Cross Ref: 49A899
7 In Stock
Ships within 2 days via
5.00% off
€220.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Ac Contact Rating | 6A @ 240V |
| Accuracy | 0.02 mm |
| Compatible With Series | Ls Titan |
| Connection | Cage clamps |
| Contact Configuration | 2 NC, slow make break, positive opening |
| Contact Form | 2NC |
| Contact Rating | 6A At 240V AC, 3A At 24V DC |
| Dc Contact Rating | 3A @ 24V |
| Display Qty | 1 |
| Electrical Connection | Cage Clamp |
| Enclosure Material | Die Cast Zinc |
| Height | 2.99" |
| Ip Rating | IP66, IP67 |
| Length | 1.22" |
| Material | Zinc |
| Max. Amps | 3A , 6A |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Mounting Hole Dia. | 4/25" |
| Mounting Hole Horizontal Center To Center Distance | 20 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13 |
| No. Of Mounting Holes | 2 |
| Overall Depth | 1.22" |
| Overall Height | 2.99" |
| Overall Width | 1 8/25" |
| Switch Type | Top push plunger |
| Type | LS-Titan |
| Width | 1 8/25" |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 7.59 |
| Ship length (cm) | 3.1 |
| Ship width (cm) | 3.35 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Enclosure Material | Connection | Max. Amps | Electrical Connection | Contact Rating | Input Voltage | Led Indicator | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LS-11S-S | 4 24/25" | Polyamide | Cage clamps | 3A | - | 6A At 240V AC, 3A At 24V DC | - | - | €128.02 | |
 |
LS-11 | 2.99" | Polyamide | Cage clamps | 3A | - | 6A At 240V AC, 3A At 24V DC | - | - | €93.76 | |
|
LSE-02-LA | 3.86" | Polyamide | Cage clamps | 0.2A | - | 0.2A At 24V DC | 12-30V DC | Status and error: single LED | €261.98 | |
 |
LS-20 | 2.99" | Polyamide | Cage clamps | 3A | - | 6A At 240V AC, 3A At 24V DC | - | - | €114.12 | |
|
LSE-02-RLA40R | 4.71" | Polyamide | Cage clamps | 0.2A | - | 0.2A At 24V DC | 12-30V DC | Status and error: single LED | - | RFQ
|
 |
LS-11-ZB | 1.18" | Plastic | Cage clamps | 3A At 24V DC | - | 6A At 230V AC, 3A At 24V DC | - | - | €503.05 | |
 |
LS4-S11-1-I-ZB | 1.57" | Plastic | Screw Terminal | 3A At 24V DC | - | 6A At 230V AC, 3A At 24V DC | - | - | €708.96 |
