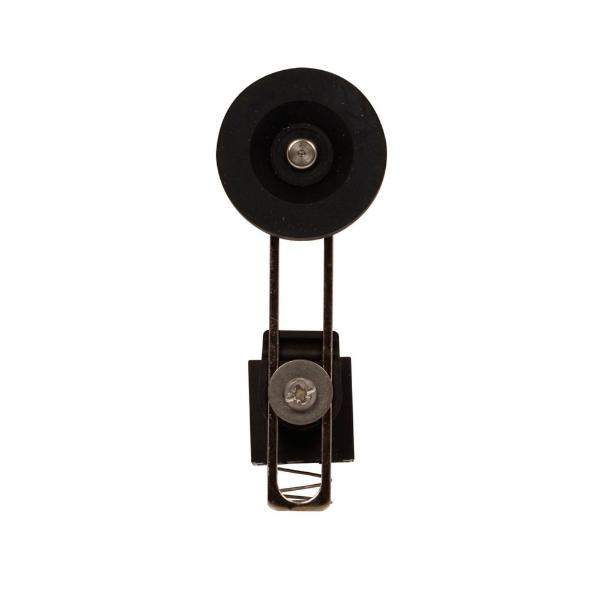

EATON LS-XRLA40 Ls-Titan Miniature Din Limit Switch Operator Head, Adj. Side Rotary, Operator Only, Ip67 | BH4QLE 49A915

EATON LS-XRLA40 Limit Switch Head, Vertical, Rotary Lever Actuator, Side, 10, Momentary

Item: BH4QLEModel: LS-XRLA40Cross Ref: 49A915
7 In Stock

Ships within 2 days via

€57.69
10.00% off
€51.92 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Limit Switch
Action Momentary
Actuator Location Side
Actuator Style Roller Lever Plunger
Arm Adjustability Adjustable
Arm Length - Maximum 2.54"
Arm Length - Minimum 3/4"
Arm Material Metal
Arm/operator Length 2.54"
Compatible With Brand Eaton
Compatible With Grainger Part Number 49A896, 49A897, 49A898, 49A899, 49A901, 49A902, 49A905, 49A906
Compatible With Manufacturer Model Number LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible With Series Ls Titan
Differential Travel 65°
Directional Movement CCW/CW
Display Qty 1
Height 4.41"
Includes Actuator Actuator Included
Ip Rating IP66, IP67
Length 0.94"
Manufacturer Warranty Length 1 yr.
Max. Operating Temp. 158°F
Min. Operating Temp. -13°F
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
Operating Force 8N
Operating Torque 8.88 lbs.-in.
Overall Depth 0.94"
Overall Height 4.41"
Overall Width 0.98"
Overtravel 55°
Plunger Adjustability Adjustable
Pretravel 55°
Reset Travel 5°
Roller Adjustability Adjustable
Roller Diameter 1.57"
Roller Material Nylon
Roller Position Side
Roller Width 1.57"
Series LS Series
Switch Type Adjustable Side Rotary Operator only
Total Travel 65°
Type LS-Titan
Warranty 1 yr.
Width 0.98"

Shipping Info:

Ship weight (kg) 0.03
Ship height (cm)11.2
Ship length (cm)2.39
Ship width (cm)2.49
Country of OriginUS

Product Variants

ProductModelIp RatingActuator StyleContact FormAc Contact RatingElectrical ConnectionMounting TypeHeightOperating ForcePrice
EATON LS-11S-S Ls-Titan Miniature Din Limit Switch, Top Push Plunger, Polyamide Pa66-Gf25 Enclosure | BH4QCB LS-11S-S------4 24/25"-€128.02
EATON LS-11 Ls-Titan Miniature Din Limit Switch, Top Push Plunger, Polyamide Pa66-Gf25 Enclosure | BH4QCD LS-11------2.99"-€93.76
EATON LSE-02-LA Ls-Titan Miniature Din Electronic Limit Switch, Angled Roller Lever, Electronic Contacts | BH4QCE LSE-02-LA------3.86"-€261.98
EATON LS-20 Ls-Titan Miniature Din Limit Switch, Top Push Plunger, Polyamide Pa66-Gf25 Enclosure | BH4QCF LS-20------2.99"-€114.12
EATON LSE-02-RLA40R Ls-Titan Miniature Din Electronic Limit Switch, Adj. Side Rotary, Electronic Contacts | BH4QCH LSE-02-RLA40R------4.71"--
RFQ
EATON LS-11-ZB Limit Switch Body, Cage Clamps, 6A At 230 Vac, 3A At 24 Vdc | BH4QCJ LS-11-ZB------1.18"-€503.05
EATON LS4-S11-1-I-ZB Interlock Switch, Ls-Titan, Cabinet Door Interlock, Screw Terminals, 6A At 230 Vac | BH4QCK 45MZ48 LS4-S11-1-I-ZBIP65-1NO/1NC6A @ 230V-Full Size DIN Rail1.57"-€708.96
