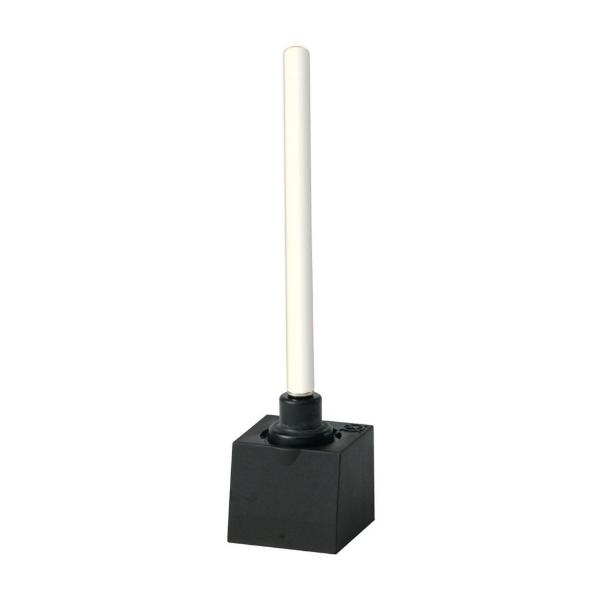

EATON LS-XOR Ls-Titan Miniature Din Limit Switch Operator Head, Actuating Rod | BH4QLA 49A920

EATON LS-XOR Limit Switch Head, Vertical, Wobble Stick Actuator

Item: BH4QLAModel: LS-XORCross Ref: 49A920
7 In Stock

Ships within 2 days via

€101.38
5.00% off
€96.31 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Limit Switch
Action Momentary
Actuator Location Top
Actuator Style Rod
Arm Adjustability Fixed
Arm Material Metal
Arm/operator Length 4.33"
Compatible With Brand Eaton
Compatible With Grainger Part No 49A896, 49A897, 49A898, 49A899, 49A901, 49A902, 49A905, 49A906
Compatible With Manufacturer Model Number LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible With Series Ls Titan
Differential Travel 26°
Directional Movement Omnidirectional
Display Qty 1
Height 4 3/25"
Included Actuator Actuator Included
Ip Rating IP66, IP67
Length 0.94"
Max. Arm Length 4.33"
Max. Operating Temp. 158°F
Min. Arm Length 4.96"
Min. Operating Temp. -13°F
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
Operating Force 1N
Operating Torque 8.88 lbs.-in.
Over Travel 43°
Overall Depth 0.94"
Overall Height 4.12"
Overall Width 0.98"
Pre-travel 20°
Reset Travel 22°
Series LS Series
Switch Type Actuating Rod, operator only
Total Travel 65°
Type LS-Titan
Width 0.98"

Shipping Info:

Ship weight (kg) 0.01
Ship height (cm)10.46
Ship length (cm)2.39
Ship width (cm)2.49
Country of OriginUS

Product Variants

ProductModelHeightEnclosure MaterialConnectionMax. AmpsElectrical ConnectionContact RatingInput VoltageLed IndicatorPrice
EATON LS-11S-S Ls-Titan Miniature Din Limit Switch, Top Push Plunger, Polyamide Pa66-Gf25 Enclosure | BH4QCB LS-11S-S4 24/25"PolyamideCage clamps3A-6A At 240V AC, 3A At 24V DC--€128.02
EATON LS-11 Ls-Titan Miniature Din Limit Switch, Top Push Plunger, Polyamide Pa66-Gf25 Enclosure | BH4QCD LS-112.99"PolyamideCage clamps3A-6A At 240V AC, 3A At 24V DC--€93.76
EATON LSE-02-LA Ls-Titan Miniature Din Electronic Limit Switch, Angled Roller Lever, Electronic Contacts | BH4QCE LSE-02-LA3.86"PolyamideCage clamps0.2A-0.2A At 24V DC12-30V DCStatus and error: single LED€261.98
EATON LS-20 Ls-Titan Miniature Din Limit Switch, Top Push Plunger, Polyamide Pa66-Gf25 Enclosure | BH4QCF LS-202.99"PolyamideCage clamps3A-6A At 240V AC, 3A At 24V DC--€114.12
EATON LSE-02-RLA40R Ls-Titan Miniature Din Electronic Limit Switch, Adj. Side Rotary, Electronic Contacts | BH4QCH LSE-02-RLA40R4.71"PolyamideCage clamps0.2A-0.2A At 24V DC12-30V DCStatus and error: single LED-
RFQ
EATON LS-11-ZB Limit Switch Body, Cage Clamps, 6A At 230 Vac, 3A At 24 Vdc | BH4QCJ LS-11-ZB1.18"PlasticCage clamps3A At 24V DC-6A At 230V AC, 3A At 24V DC--€503.05
EATON LS4-S11-1-I-ZB Interlock Switch, Ls-Titan, Cabinet Door Interlock, Screw Terminals, 6A At 230 Vac | BH4QCK 45MZ48 LS4-S11-1-I-ZB1.57"PlasticScrew Terminal3A At 24V DC-6A At 230V AC, 3A At 24V DC--€708.96
