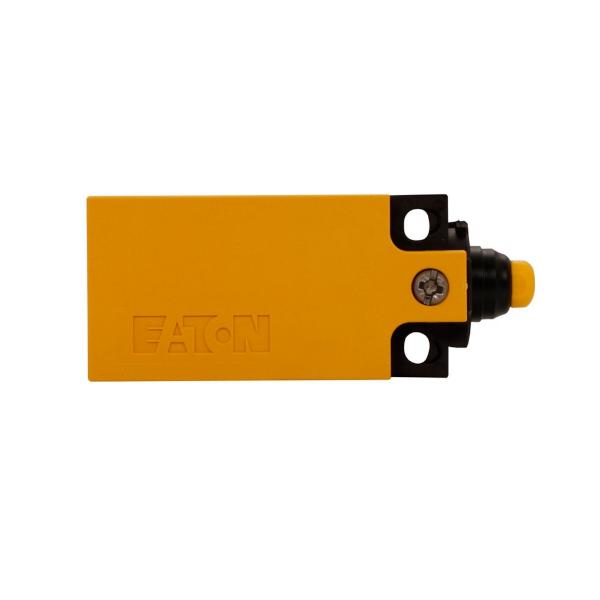

EATON LS-S20A Limit Switch Body, 4A, 400/415 VAC/6A, 24/230/240 VAC
Item: BH4QJHModel: LS-S20ACross Ref: 49A897
7 In Stock
Ships within 2 days via
10.00% off
€127.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Ac Contact Rating | 6A @ 230V |
| Accuracy | 0.02 mm |
| Compatible With Series | Ls Titan |
| Connection | Screw Terminal |
| Contact Configuration | 2 NC with positive opening contacts |
| Contact Form | 2NO |
| Contact Rating | 6A At 230V AC, 3A At 24V DC |
| Dc Contact Rating | 3A @ 24V |
| Display Qty | 1 |
| Electrical Connection | Screw Terminal |
| Enclosure Material | Plastic |
| Height | 1 8/25" |
| Ip Rating | IP66, IP67 |
| Length | 2.99" |
| Manufacturer Warranty Length | 1 yr. |
| Material | Plastic |
| Max. Ac Amps | 6A At 230V AC |
| Max. Dc Amps | 3A At 24V DC |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Mounting Hole Diameter | 4/25" |
| Mounting Hole Horizontal Center To Center Distance | 20 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13 |
| Number Of Mounting Holes | 2 |
| Operating Speed | 99.97 cm/sec. |
| Output | 2 No With Slow Make/Break |
| Overall Depth | 2.99" |
| Overall Height | 1 8/25" |
| Overall Width | 1.22" |
| Type | LS-Titan |
| Warranty | 1 yr. |
| Width | 1.22" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.35 |
| Ship length (cm) | 7.59 |
| Ship width (cm) | 3.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Actuator Style | Contact Form | Ac Contact Rating | Electrical Connection | Mounting Type | Height | Operating Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LS-11S-S | - | - | - | - | - | - | 4 24/25" | - | €128.02 | |
 |
LS-11 | - | - | - | - | - | - | 2.99" | - | €93.76 | |
|
LSE-02-LA | - | - | - | - | - | - | 3.86" | - | €261.98 | |
 |
LS-20 | - | - | - | - | - | - | 2.99" | - | €114.12 | |
|
LSE-02-RLA40R | - | - | - | - | - | - | 4.71" | - | - | RFQ
|
 |
LS-11-ZB | - | - | - | - | - | - | 1.18" | - | €503.05 | |
 |
LS4-S11-1-I-ZB | IP65 | - | 1NO/1NC | 6A @ 230V | - | Full Size DIN Rail | 1.57" | - | €708.96 |
