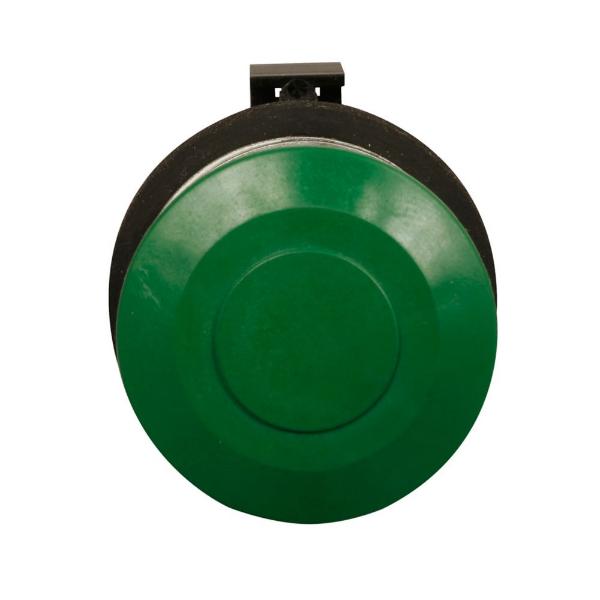

EATON HT8DBG Pushbutton, 40 mm, Non Illuminated, 2 Position, Flat Mushroom, Chrome Bezel
Item: BH3MLWModel: HT8DBGCross Ref: 12K589
7 In Stock
Ships within 2 days via
10.00% off
€218.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton Assembly |
| Action | Maintained/Maintained |
| Actuator Color | Green |
| Actuator Material | Plastic |
| Actuator Type | Flat mushroom |
| Bezel | Chrome |
| Bezel Material | Anodized Aluminum |
| Bus Material | Aluminum |
| Features | Allen Bradley Compatible |
| Head Material | Plastic |
| Head/lens Color | Green |
| Height | 5.051" |
| Illumination | Non-illuminated |
| Ip Rating | IP66 |
| Length | 2.094" |
| Maintained Action Release | Push/Pull |
| Manufacturer Warranty Length | 1 yr. |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Number Of Positions | 2 |
| Operating Mode | Maintained |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 10°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polymer |
| Overall Depth | 2.09" |
| Overall Height | 5.05" |
| Overall Width | 2.37" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Corrosion Resistant, Oil And Grease Resistant, Watertight |
| Series | Ht800 Series |
| Size | 40 mm |
| Standards | Ce, Csa, Ul Listed |
| Terminal Connection | Screw Clamp |
| Type | Push-Pull |
| Warranty | 1 yr. |
| Width | 2 3/8" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 12.83 |
| Ship length (cm) | 5.32 |
| Ship width (cm) | 6.03 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Type | Illumination | Size | Mounting Type | Ip Rating | Terminal Connection | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HT8A15 | - | - | - | - | - | - | - | Silver | €52.51 | |
|
HT8AAGAB-POP | 3" | 30.5 mm, Watertight/Oiltight-HT800 | Non-illuminated | - | - | - | - | - | €207.39 | |
|
HT8AARAB-POP | 3" | 30.5 mm, Watertight/Oiltight-HT800 | Non-illuminated | - | - | - | - | - | €226.60 | |
 |
HT8AAHAB-POP | 3" | 30.5 mm, Watertight/Oiltight-HT800 | Non-illuminated | - | - | - | - | - | - | RFQ
|
 |
HT8AAH | 3 1/5" | 30.5 mm, Watertight/Oiltight-HT800 | Non-illuminated | 30.5 mm | Flush | IP66 | Screw Clamp | - | €79.37 | |
|
HT8AAG | 3 1/5" | 30.5 mm, Watertight/Oiltight-HT800 | Non-illuminated | 30.5 mm | Flush | IP66 | Screw Clamp | - | €79.37 | |
 |
HT8AAR | 3 1/5" | 30.5 mm, Watertight/Oiltight-HT800 | Non-illuminated | 30.5 mm | Flush | IP66 | Screw Clamp | - | €79.37 |
