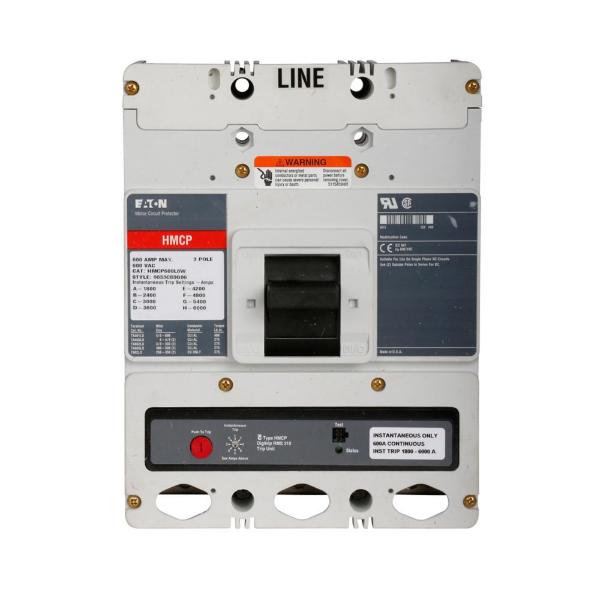

EATON HMCP600L6YS61 Hmcp Motor Circuit Protector, 600 VAC, 250 VDC, 600A, 3P, Magnetic Trip
Get it by Monday, Dec 22
€19,867.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shunt Trip |
| Amps Rating | 600A |
| Frame Size | Frame J-K |
| Height | 10 3/4" |
| Length | 4.06" |
| Magnetic Trip Range | 1800-6000A |
| Max. Voltage | 250/600V |
| Number Of Poles | 3 |
| Series | Series C |
| Terminals | Line |
| Type | Motor Circuit Protector |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 8 1/4" |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 27.31 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 20.96 |
| Country of Origin | US |
