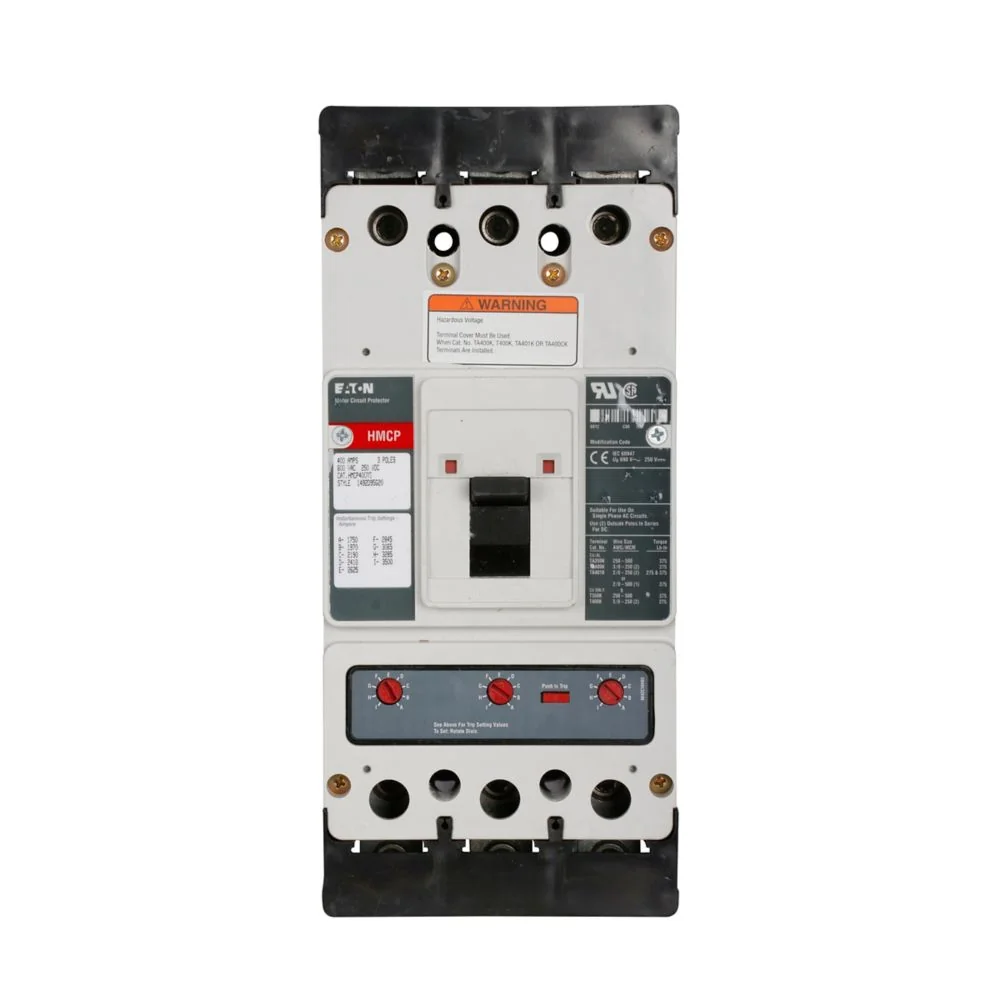

EATON HMCP400X5CA05F01U20 Motor Circuit Protector, 400A, 3-Pole, Frame J-K, 600 V, 250 Vdc, 2000-4000A
€16,282.87 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Circuit Protector |
| Amperage Rating | 400A |
| Auxiliary Switch | 1A-1B Right Pigtail Same Side |
| Features | Freeze Tested |
| Frame Size | Frame J-K |
| Height | 10.13" |
| Length | 4.1" |
| Magnetic Trip Range | 2000-4000A |
| Max. Voltage | 250/600V |
| Mfr. Series | Series C |
| Number Of Poles | 3 |
| Terminals | Line And Load |
| Type | Motor Circuit Protector |
| Undervoltage Release | 208-240V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Weight | 11.5 lbs. |
| Width | 5 1/2" |
Product Variants
| Model | Number Of Poles | Frame Size | Voltage | High Amp Trip Setting | Low Amp Trip Setting | Circuit Breaker Type | Ac Voltage Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HMCP007C0C | 3 | - | - | 5.7A | 1.5A | Standard | 600V AC | Three | €875.39 | |
| HMCP015E0C | 3 | Frame J-K | - | - | - | - | - | - | €1,784.52 | |
| HMCP025D0C | 3 | Frame J-K | - | - | - | - | - | - | €983.66 | |
| HMCP030H1C | 3 | - | - | 25.2A | 6.9A | Standard | 600V AC | Three | €1,717.66 | |
| HMCP050G2C | 3 | Frame J-K | - | - | - | - | - | - | €1,237.50 | |
| HMCP050K2C | 3 | - | - | 42.1A | 11.2A | Standard | 600V AC | Three | €1,065.64 | |
| HMCP070J2C | 3 | Frame J-K | - | - | - | - | - | - | €983.66 |
