EATON FAK-S-KC11-I Complete Palm Switch, 22.5 mm, Mushroom Head Button, Non-Illuminated, 1No-1Nc, Black
Item: BH9HTTModel: FAK-S-KC11-ICross Ref: 30XE77
7 In Stock
Ships within 2 days via
10.00% off
€304.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Ac Contact Rating | 10A @ 600V |
| Actuator Function | Momentary |
| Actuator Type | Mushroom head |
| Base Color | Black |
| Button Color | Black |
| Contact Configuration | 1 NC, 1 NO |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 5A @ 24V |
| Enclosure Color | Gray |
| Enclosure Material | Plastic |
| Height | 4" |
| Hub Style | Feed Thru |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 3 3/4" |
| Manufacturer Warranty Length | 18 Months |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | All NC Contact Blocks Are Positively Driven Contact |
| Number Of Operators | 1 |
| Number Of Pilot Lights | 0 |
| Number Of Speeds | 1 |
| Operating Cycles | 1 Million |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Operator Action | Momentary |
| Operator Color | Black |
| Operator Configuration | Palm Switch |
| Operator Configuration Type | (1) Palm Switch |
| Operator Legend | No Legend |
| Operator Type | Palm Switch |
| Overall Depth | 3.75" |
| Overall Height | 4" |
| Overall Width | 3 3/4" |
| Panel Cutout Diameter | 22 mm |
| Product Type | Control Station |
| Push Button Type | Palm Switch |
| Resistance Properties | Corrosion Resistant, Shock Resistant,UV/Sunlight Resistant |
| Series | M22 Series |
| Type | Palm Switch |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 3 3/4" |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 9.53 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Material | Height | Size | Color | Diameter | Nema Rating | Number Of Operators | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

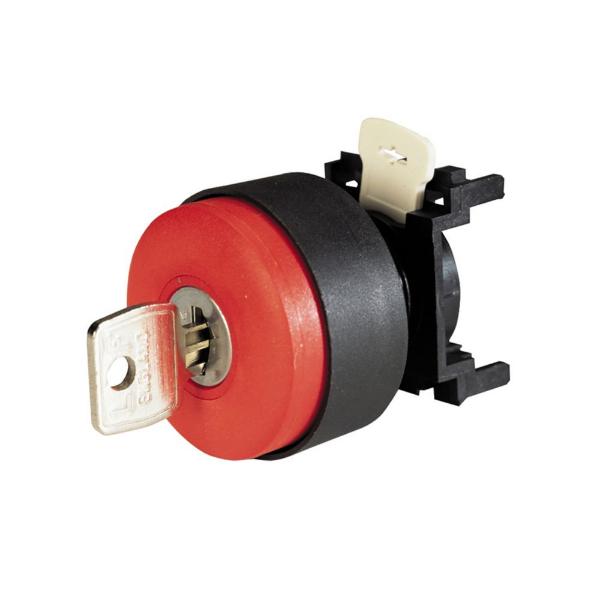

EM22G2 | - | - | 1" | 22.5 mm | - | - | - | - | €454.40 | |
 |
EM22H9 | IP65 | - | 0.01" | 22.5 mm | - | - | - | - | €28.05 | |
 |
EM22H0 | IP65 | - | 0.01" | 22.5 mm | - | - | - | - | €23.07 | |
 |
EM22KF4 | - | Metal | 0.01" | - | - | - | Nema 3, Nema 3R, Nema 4, Nema 4X, Nema 12, Nema 13 | - | €296.64 | |
 |
EM22H3 | IP65 | - | 0.01" | 22.5 mm | - | - | - | - | €22.33 | |
|
EM22H2 | IP65 | - | 1 1/2" | 22.5 mm | - | - | - | - | €20.19 | |
 |
EM22N9 | - | - | 0.01" | 22.5 mm | - | - | - | - | €63.59 |
