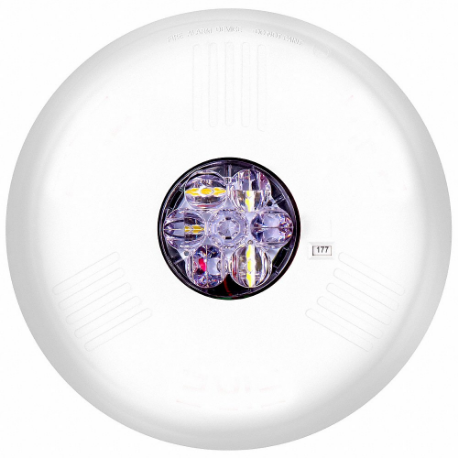

EATON ELSTWC-N LED Strobe, White, 24 V, 100000 hr Lamp Life, Dome, 6 1/4 Inch Size Ht
Item: CP4ATQModel: ELSTWC-NCross Ref: 797FD7
7 In Stock
Ships within 2 days via
10.00% off
€113.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Strobe |
| Amps Drawn | 0.04/0.053/0.155/0.248A |
| Brightness Selection | Selectable Brightness |
| Bulb Included | Yes |
| Color | White |
| Control Protocol | Direct Wire |
| Depth | 1.85" |
| Dia. | 6 1/4" |
| Features | 3 Horn Patterns, 6 Field Selectable Settings In 1 Device, Easy To Install, Energy Efficient, Low-Profile Design, Sound Pressure (Anechoic) Dba, Special Lettering Available, Strobe Synchronization |
| Flashes Per Minute | 60 FPM |
| Footprint Shape | Circle |
| For Location | Indoor |
| Height | 6 1/4" |
| Housing Color | White |
| Housing Material | Plastic |
| Includes | Mounting Plate |
| Includes Mounting Hardware | Mounting Hardware Included |
| Lamp Color | White |
| Lens Color | Clear |
| Lens Design | Dome |
| Lens Material | Lexan |
| Lens Shape | Dome |
| Lifespan | 100000 hrs. |
| Light Intensity | 15 cd |
| Light Operating Mode | Strobe |
| Light Output | 110 cd, 15 cd, 150 cd, 177 cd, 30 cd, 75 cd |
| Mounting Location | Ceiling Mount |
| Mounting Style | Surface Mount |
| Mounting Type | Ceiling |
| Operating Current | 0.185A @ 24V DC |
| Operating Temp. | +32°F to +122°F |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 32°F |
| Operating Voltage | 24V |
| Overall Diameter | 6 1/4" |
| Overall Height | 1 29/32" |
| Power Source | Wire |
| Product Type | Strobe Light |
| Requires Base | Base Not Required |
| Standards | Ul Listed, Ulc Listed |
| Voltage | 24V |
| Width | 6 1/4" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 4.7 |
| Ship width (cm) | 15.88 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Power Source | Housing Color | Depth | Mounting Type | Amps Drawn | Light Source | Lens Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ELSTR-N | - | Wire | Red | - | - | - | LED | Clear | €117.35 | |
 |
ELSTR-AL | 1.57" | 24V | - | 4 19/25" | Wall | - | - | - | €124.34 | |
 |
ELSTR | 4.54" | Wire | Red | 1.3" | Wall | - | LED | Clear | €112.43 | |
 |
ELSTRC | - | Wire | Red | - | - | - | LED | Clear | €123.41 | |
 |
ELSTW-N | 1.3" | Wire | White | 4 1/2" | Wall | 0.185A | LED | Clear | €122.36 | |
 |
ELSTW-AL | 1.57" | 24V | - | 4 19/25" | Wall | 0.185A | - | - | €122.36 | |
 |
ELSTW | 4.79" | Wire | White | 1.57" | Wall | - | LED | Clear | €112.43 |
