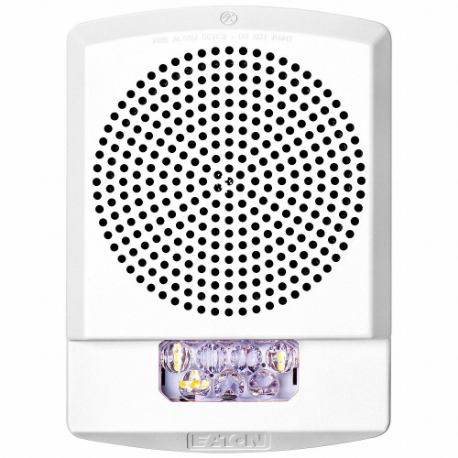

EATON ELSPSTW Eluxa Strobe, 24 V/25 V/70 V, Indoor, Wall, 6.35 Inch Ht
Item: CP4AWBModel: ELSPSTWCross Ref: 797FF3
7 In Stock
Ships within 2 days via
10.00% off
€168.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Strobe |
| Amps Drawn | 0.022/0.03/0.06/0.086/0.125/0.185A |
| Audible Alarm Type | Fire Alarm |
| Color | White |
| Connection Type | Screw Terminal |
| Depth | 4 14/25" |
| Features | Energy Efficient, High Fidelity Sound Output, Low-Profile Design, Special Lettering Available |
| Height | 6.35" |
| Housing Color | White |
| Housing Material | Plastic |
| Includes | Mounting Plate |
| Indoor/outdoor | Indoor |
| Legend | Fire |
| Lens Color | Clear |
| Lens Material | Lexan |
| Light Intensity | 15 cd |
| Light Operating Mode | Strobe |
| Light Output | 185 cd |
| Mounting | Wall |
| Mounting Style | Wall |
| Noise Level | 75 dBA, 79 dBA, 82 dBA, 85 dBA, 87 dBA |
| Operating Temp. Range | +32°F to +122°F |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 32°F |
| Operating Voltage | 24/25/70V |
| Overall Depth | 4.56" |
| Overall Height | 6.35" |
| Overall Width | 2.95" |
| Power Source | Wire |
| Product Type | Speaker Strobe |
| Sound Pattern | Continuous |
| Visual Indicator Type | Strobe |
| Voltage | 24/25/70V |
| Wattage | 5 W |
| Width | 2.95" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 16.13 |
| Ship length (cm) | 11.58 |
| Ship width (cm) | 7.49 |
| Country of Origin | RO |
Product Variants
| Product | Model | Housing Color | Voltage | Depth | Diameter | Color | Audible Alarm Type | Sound Pattern | Visual Indicator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ELHSWC | White | 24V | - | 6.23" | White | Horn | Continuous, Pulse | Strobe | €130.49 | |
 |
ELHSRC | Red | - | - | - | - | - | - | - | €130.49 | |
 |
ELHSW-N | White | 24V | 4 3/4" | - | White | Horn | Continuous, Pulse | Strobe | €151.83 | |
 |
ELHSR-N | Red | - | - | - | - | - | - | - | €141.41 | |
 |
ELHSW-A | White | - | - | - | - | - | - | - | €141.41 | |
 |
ELHSW-AL | White | - | 4.79" | - | White | Horn | Continuous, Pulse | Strobe | €141.41 | |
 |
ELHSR-A | Red | - | - | - | - | - | - | - | €141.41 |
