FREE delivery on orders over €150

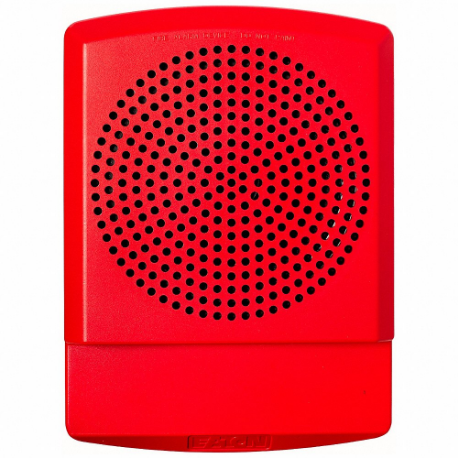

EATON ELSPKR Eluxa Speaker, 25 V/70 V, Indoor, Wall, 6.35 Inch Ht
Item: CP4AVUModel: ELSPKRCross Ref: 797FE8
7 In Stock
Ships within 2 days via
5.00% off
€61.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Speaker |
| Amps Drawn | 0.022/0.03/0.06/0.086/0.125/0.185A |
| Audible Alarm Type | Fire Alarm |
| Color | Red |
| Compatible Input Voltage | 25/70V |
| Depth | 2.94" |
| Features | Energy Efficient, High Fidelity Sound Output, Low-Profile Design, Special Lettering Available |
| For Location | Indoor |
| Height | 6.35" |
| Housing Color | Red |
| Housing Material | Plastic |
| Included | Advanced Power Saving Led Technology, Mounting Plate |
| Included Mounting Hardware | Mounting Hardware Included |
| Included Transformer | Transformer Included |
| Indoor/outdoor | Indoor |
| Lamp Type | LED |
| Lens Color | Clear |
| Lens Material | Lexan |
| Max. Frequency Response | 8000 Hz |
| Min. Frequency Response | 300 Hz |
| Mounting | Wall |
| Mounting Location | Wall Mount |
| Noise Level | 75 dBA, 79 dBA, 82 dBA, 85 dBA, 87 dBA |
| Operating Temp. | +32°F to +122°F |
| Overall Depth | 3" |
| Overall Height | 6 1/4" |
| Overall Width | 4 1/2" |
| Power Style | Powered |
| Sensitivity | 85 dBA |
| Sound Pattern | Continuous |
| Transformer Taps @ 25v | 0.13/0.25/0.5/1/2 W |
| Transformer Taps @ 70v | 0.13/0.25/0.5/1/2 W |
| Visual Indicator Type | No Visual Indicator |
| Voltage | 25/70V |
| Watts | 5 W |
| Width | 4 14/25" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 16.13 |
| Ship length (cm) | 7.47 |
| Ship width (cm) | 11.58 |
| Country of Origin | RO |
Product Variants
| Product | Model | Color | Height | Voltage | Depth | Housing Color | Mounting | Operating Voltage | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ELHSWC | White | 1.91" | 24V | - | White | Ceiling | 24V | 6 9/32" | €130.49 | |
 |
ELHSRC | - | - | - | - | Red | Ceiling | 24V | 6 9/32" | €130.49 | |
 |
ELHSW-N | White | 1.3" | 24V | 4 3/4" | White | Wall | 24V | 2 25/32" | €151.83 | |
 |
ELHSR-N | - | - | - | - | Red | Wall | 24V | 2 25/32" | €141.41 | |
 |
ELHSW-A | - | - | - | - | White | - | 24V | 2 3/4" | €141.41 | |
 |
ELHSW-AL | White | 1.57" | - | 4.79" | White | Wall | 24V | 2 3/4" | €141.41 | |
 |
ELHSR-A | - | - | - | - | Red | Wall | 24V | 2 3/4" | €141.41 |
